(888) 312-8812 Login SignupCENTRIC 120.66023 Premium Brake Rotor
Tap to view 1 more
$277.73
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.66023 Part Description
Manufacturer

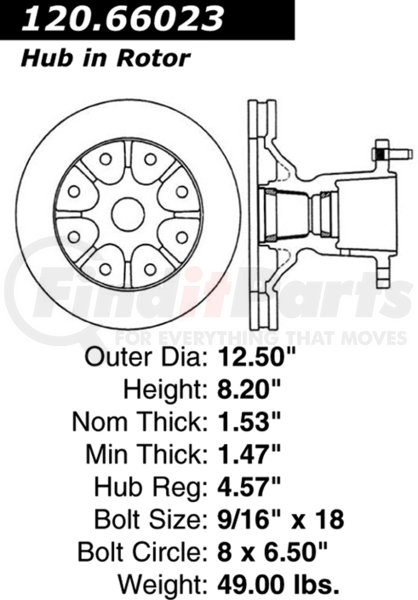

CENTRIC 120.66023 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Disc Mounting [cntrc] | Hub & Rotor |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 22.270 |
| Weight [cntrc] Lbs | 49.000 |
| Product Grade [cntrc] | Premium |
| Outer Bearing # [cntrc] | 415.66000 |
| Outer Race # [cntrc] | 416.66000 |
| Inner Seal # [cntrc] | 417.66000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Inner Bearing # [cntrc] | 410.91035 |
| Discard Thickness | 37.210 MM |
| Discard Thickness | 1.465 IN |
| Nominal Thickness | 38.900 MM |
| Nominal Thickness | 1.531 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.563 IN |
| Overall Height | 208.200 MM |
| Overall Height | 8.197 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 317.500 MM |
| Rotor Outside Diameter | 12.500 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 116.000 MM |
| Center Hole Diameter | 4.567 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
CENTRIC 120.66023 Cross References
CENTRIC 120.66023 Fits Vehicles
- GMC C3500 (1990-1994)
- Chevrolet C3500 (1990-1994)
