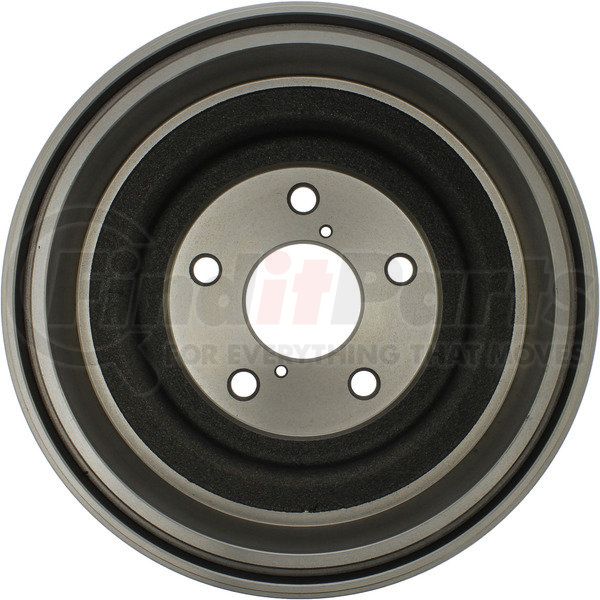

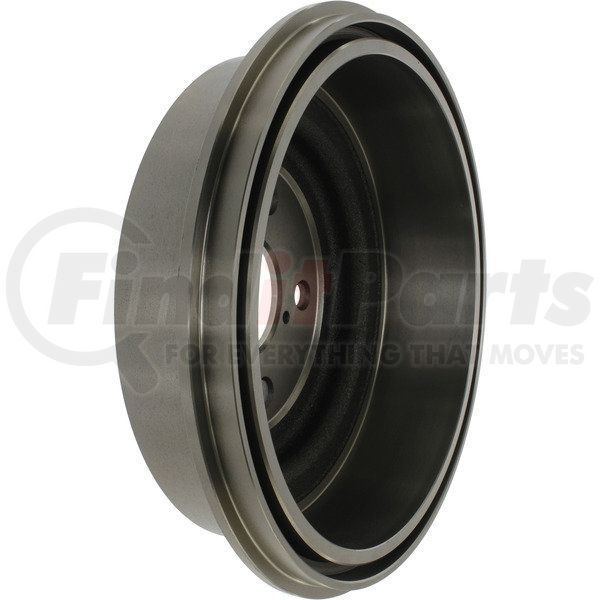

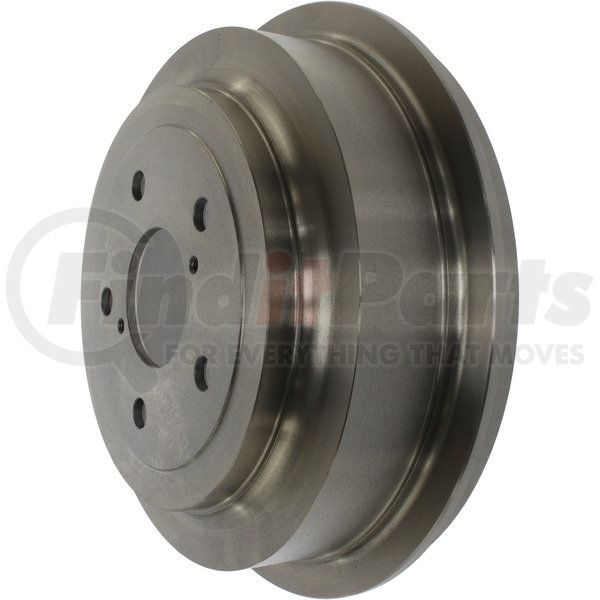

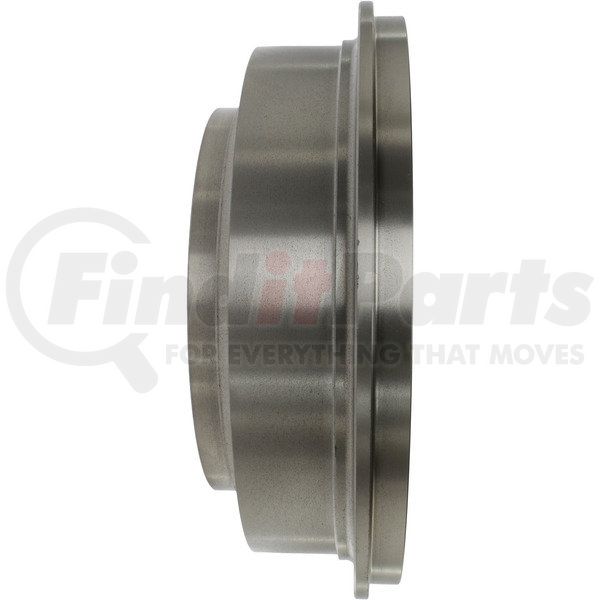

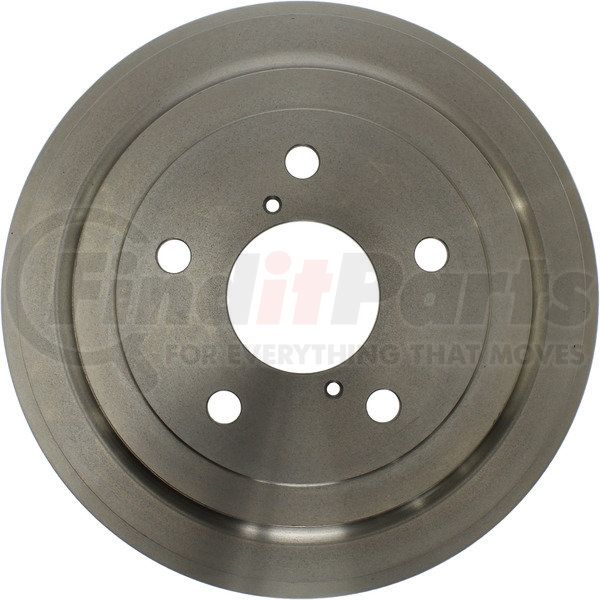

Centric 123.67044 - C-Tek Standard Brake Drum
$12449
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 12.523 |
| Weight [cntrc] Lbs | 27.550 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 78.400 |
| Hub Hole / Register [cntrc] In | 3.087 |
| Height [cntrc] Mm | 112.014 |
| Height [cntrc] In | 4.410 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 297.500 MM |
| Maximum Brake Diameter (Discard) | 11.713 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 359.000 MM |
| Outside Diameter | 14.134 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 17.200 MM |
| Mounting Hole Diameter | 0.677 IN |
| Nominal Drum Diameter | 11.600 IN |
| Nominal Drum Diameter | 294.700 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890593645 |
Part Interchanges
CENTRIC 123.67044 Cross Reference
We have 1 alternatives for the 123.67044 by CENTRIC:
Fits Vehicles
- Ram Dakota (2011)
- Mitsubishi Raider (2006-2009)
- Dodge Dakota (2005-2011)
