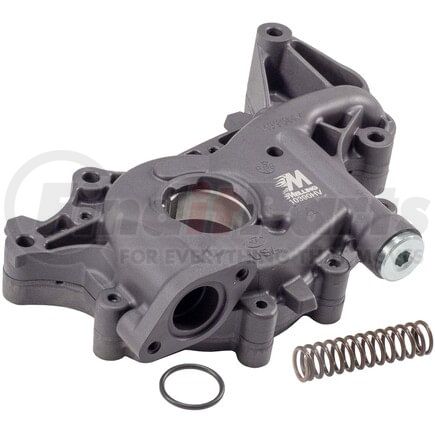

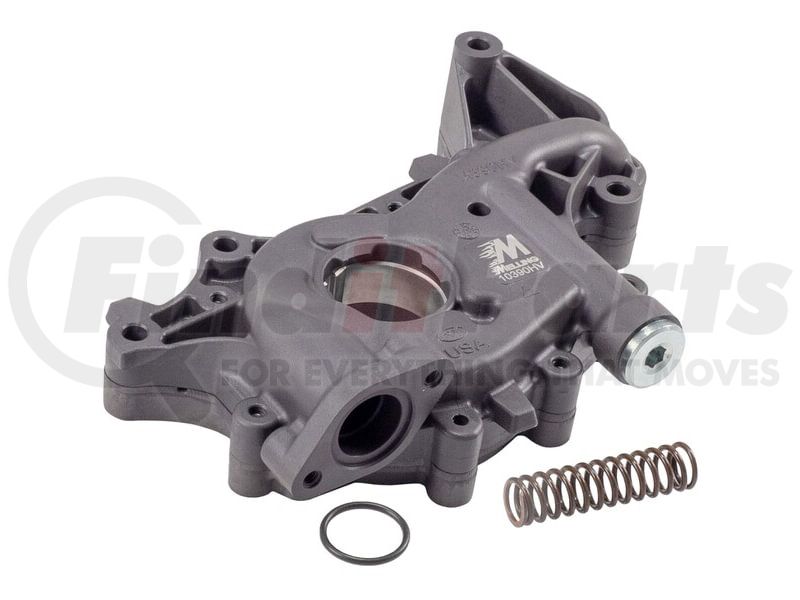

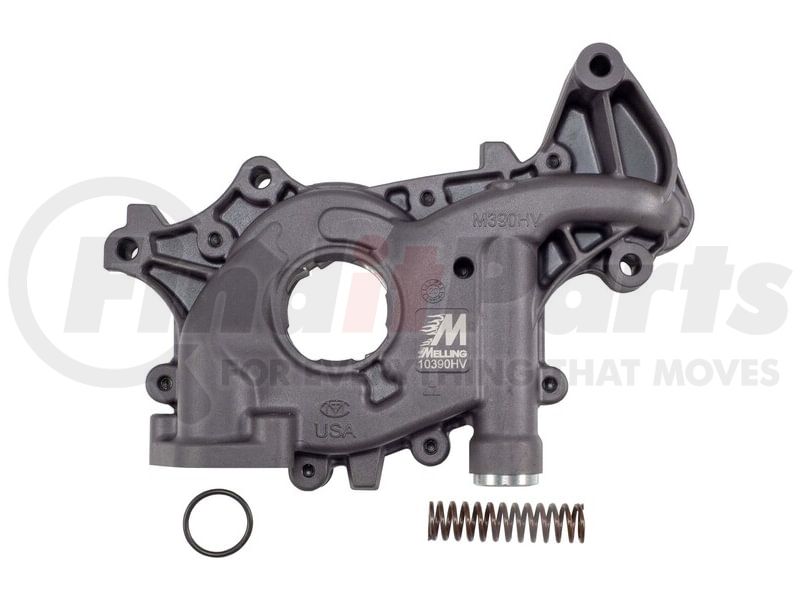

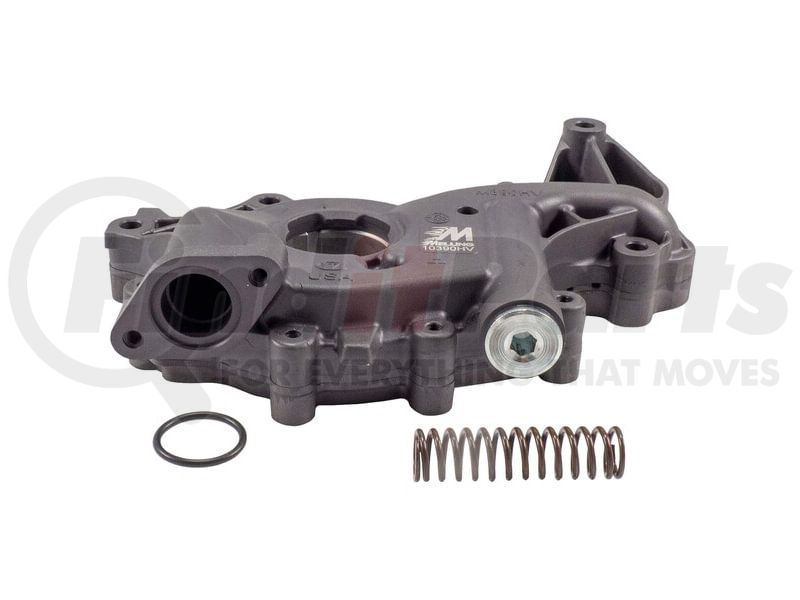

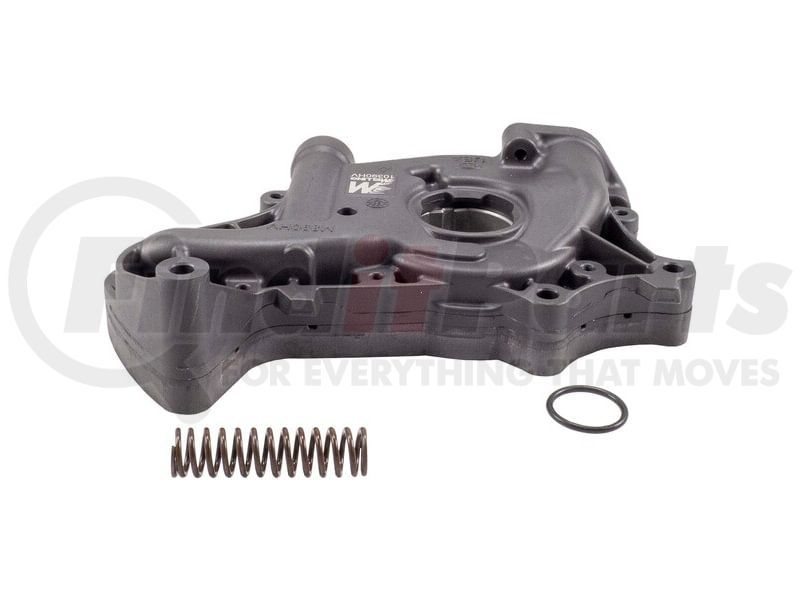

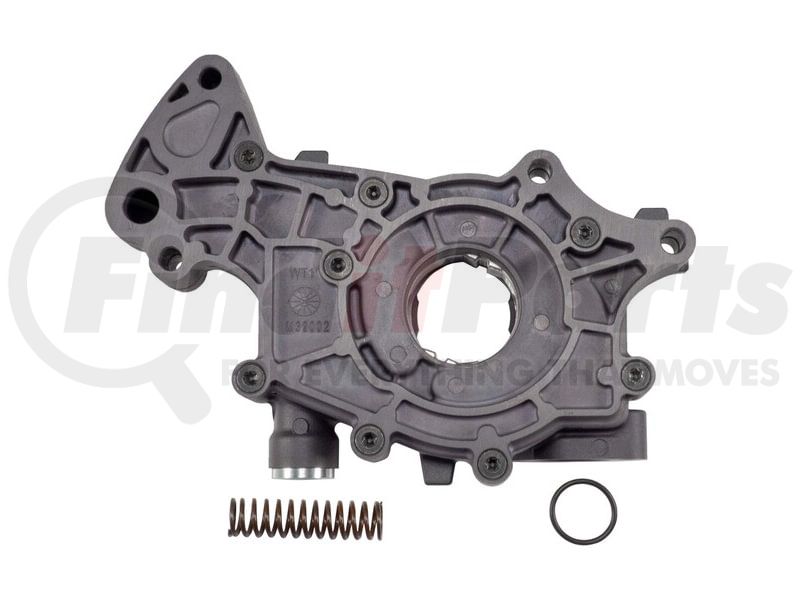

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS 10390HV 10390HV High Performance, High Volume, High Pressure, Anodized Hardcoat Oil Pump With Gasket
Tap to view 4 more
$25599
Limited availability at this price!
In Stock
Get as soon as Monday, Sep 21
MELLING ENGINE PRODUCTS 10390HV Part Description
Manufacturer
Product Description
High Performance Oil Pump
Features & Benefits
- 20% Additional Volume Over Stock Oil Pump
- Higher Pressure Spring Installed
- Hard Coat Anodized Aluminum Housing And Cover
- Includes Optional Standard Pressure Spring
- Threaded Pressure Relief Nut
- High volume high pressure performance upgrade of the M390HV
- +15 PSI over the stock oil pump pressure
MELLING ENGINE PRODUCTS 10390HV Specifications
Product Attributes
| Title | High Performance Oil Pump |
| Width | 9.000 IN |
| Width | 228.00 MM |
| Height | 6.750 IN |
| Height | 171.00 MM |
| Grade Type | Performance |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Drive Type | Crankshaft |
| Rotor Material | Stainless Steel |
| Oil Pump Type | Rotary |
| Pickup Tube Diameter | 0.930 IN |
| Pickup Tube Diameter | 24.00 MM |
| Solenoid Included | No |
| Mounting Hole Diameter | 0.320 IN |
| Mounting Hole Diameter | 8.00 MM |
| Adjustable Bypass Pressure | No |
| Additional Cover Shaft Support | No |
| Alternate Pressure Springs Included | Yes |
| Anti-Cavitation | No |
| Adjustable Pickup Screen | No |
| Oil Pump Pressure Type | High Pressure |
| Oil Pump Volume Type | High Volume |
| Additional Volume Over Stock Percentage | 20% |
| Manufactured For | Ford EcoBoost |
| Manufactured Pressure | (Lt. Blue) 100 PSI |
| Upgrade for Pump Number | M390HV |
| Optional Spring Pressure 1 | (Brown) 85 PSI |
| Optional Spring Pressure 2 | N/A |
| Screen Information | 15/16" Bolt On |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Cover Material | Cast Iron |
| Gears Included | Not Applicable |
| Governor Spinner Included | No |
| Guide Included | Not Applicable |
| Hardware Included | No |
| Inlet Size (in) | 0.930 |
| Intermediate Shaft Included | Not Applicable |
| Inlet Size (mm) | 24.00 |
| Nylon Bushing Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Spacer Included | No |
| Pickup Screen Included | No |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Housing Material | Cast Aluminum |
| Housing Finish | Anodized |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309060 |
| Country of Origin (Primary) | US |
| UPC | 00729295105770 |
MELLING ENGINE PRODUCTS 10390HV Fits Vehicles
- Lincoln Continental (2017-2020)
- Lincoln Navigator (2016-2017)
- Ford Transit-150 (2015-2020)
- Ford Expedition (2015-2017)
- Ford Transit-350 HD (2015-2020)
- Ford Transit-250 (2015-2020)
- Ford Transit-350 (2015-2020)
- Ford Police Interceptor Sedan (2013-2019)
- Ford Police Interceptor Utility (2013-2019)
- Ford F-150 (2011-2017)
- Ford Explorer (2011-2019)
- Ford Mustang (2011-2017)
- Lincoln MKT (2010-2019)
- Ford Fusion (2010-2012)
- Mazda 6 (2009-2013)
- Ford Flex (2009-2019)
- Lincoln MKS (2009-2016)
- Ford Taurus X (2008-2009)
- Mercury Sable (2008-2009)
- Ford Taurus (2008-2019)
- Lincoln MKX (2007-2018)
- Mazda CX-9 (2007-2015)
- Lincoln MKZ (2007-2016)
- Ford Edge (2007-2018)
