GATES 41R4313 Part Description
Manufacturer
Product Description

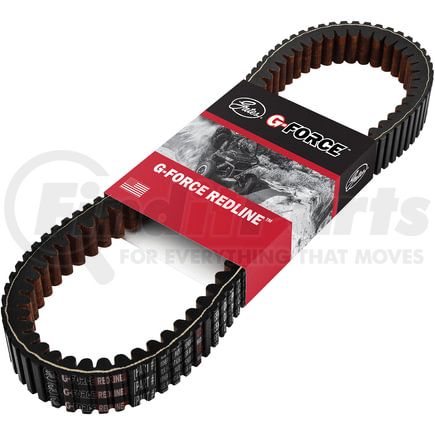

G-Force Redline Continuously Variable Transmission (CVT) Belt
Application Summary
2019-16 Arctic Cat, Inc., Bearcat 7000, 1049cc, Drive
Features & Benefits
- Improved durability, crack- and wear-resistant means a longer-lasting, higher-performance power transmission belt for the most demanding applications
- Greater heat resistance and recovery, even under severe duty cycles
- Optimized, patented Ethylene Elastomeric (EE) compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads
- Tested under extreme conditions in controlled environments as well as on race vehicles
GATES 41R4313 Specifications
Product Attributes
| Type | Power Sport Specialty High Performance CVT Belt |
| Cross Section Designation | RVS-R |
| Angle | 25 |
| Top Width | 1.412 in |
| Pitch Width | 1.339 IN |
| Outside Circumference | 44.302 in |
| Pitch Length | 43.128 IN |
| Thickness | .627 IN |
| Construction | Double Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Aramid |
| Bottom Material | Yes |
| Color | Black |
| Grade Type | OE Improved |
| Top Width | 36 mm |
| Pitch Width | 34 MM |
| Outside Circumference | 1125 mm |
| Pitch Length | 1095.5 MM |
| Thickness | 15.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00770075816003 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 41R4313 Cross References
| Brand | Part Number |
|---|---|
| Arctic Cat | 0627-102 |
| Dayco | XTX5059 |
| NAPA Belts/Hose | 41C4313, 41G4313, 41R4313 |
GATES 41R4313 Fits Vehicles
- Arctic Cat Bearcat 7000 XT GS (2016-2018)
- Arctic Cat Pantera 7000 XT Limited (2016-2018)
- Arctic Cat Bearcat 7000 XT (2016-2019)
