ATE BRAKE PRODUCTS 607234 Part Description
Manufacturer
Product Description
ATE Semi-Metallic Rear Disc Brake Pad Set 607234 for Ford, Mazda, Mercury
Features & Benefits
- Accessories are often included in the brake pad package for problem free installation
- Full braking power instantly, no fading with ATE
- Low heat transmission prevents pedal failure
- Optimum comfort behavior avoids squeal and shudder
ATE BRAKE PRODUCTS 607234 Specifications
Product Attributes
| Friction Material Composition | Semi-metallic |
| Mounting Hardware Included | No |
| Pad Shims Included | No |
| FMSI Number | 7950-D1047, 8445-D1047 |
| Pad Wear Sensor Included | No |
| Friction Material Attachment | Integrally Molded |
| Inner Pad Friction Material Thickness | 16.10 MM |
| Outer Pad Friction Material Thickness | 16.10 MM |
| Slotted | Yes |
| Chamfered Edges | Yes |
| Abutment Clips Included | No |
| Prepared For Pad Wear Sensor | No |
| Adhesive Backed Pad Shim | No |
| Backing Material | steel |
| Brake Lubricant Included | No |
| ECE-R90 Certified | Yes |
| Friction Surface Scorched | No |

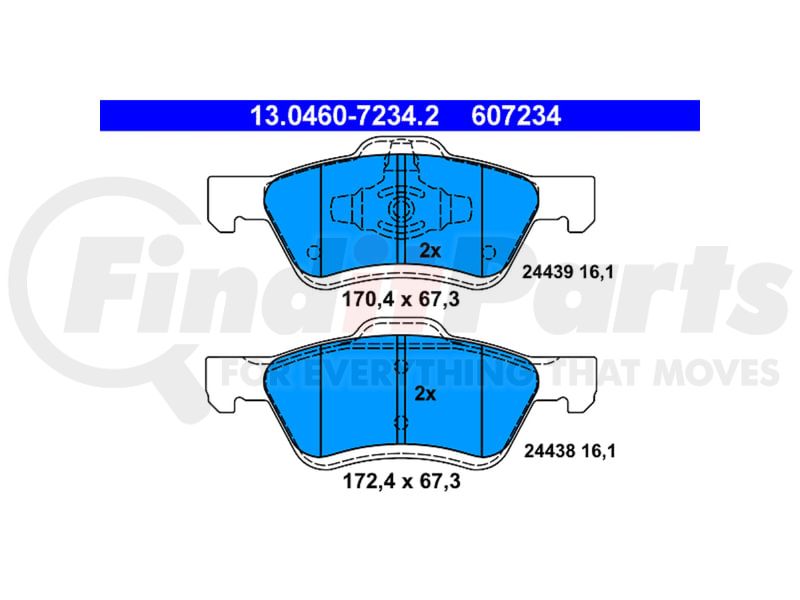

| Inner Pad Height | 67.30 MM |
| Inner Pad Width | 170.40 MM |
| Outer Pad Height | 67.30 MM |
| Outer Pad Width | 172.40 MM |
| Pad Quantity | 4 |
| Better Brakes Law SAE Environmental Compliance Level | B |
Additional Information
| Country of Origin (Primary) | IT |
| Harmonized Tariff Code (HTS) | 8708305040 |
| EU | |
| UPC | 04006633324984 |
ATE BRAKE PRODUCTS 607234 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 14D1047C, 17D1047AC, 17D1047BC, 17D1047C |
| Akebono | ACT1047, ACT1047A |
| Bendix | D1047ACT, D1047B, D1047CT, MKD1047 |
| Brembo | P 24 085, P 24 159, P24116N |
| Delphi | LP2161 |
| FMSI | 7950-D1047, 8445-D1047 |
| Ford | 5L8Z2001AA, 5U2Z2V001G, 5U2Z2V001M, 6L8Z2001A, 8M6Z2001A, AL8Z2001A, AM6Z2001A, CU2Z2V001H |
| Hella | 8DB 355 014-961, T1914 |
| Mazda | ECTT3323Z, EFY53323Z, ZZC33323Z, ZZC43323Z |
| Mopar | 1AMV101047, 1AMV31047A, 1AMVF10470, 1AMVF1047B |
| Raybestos Brakes | ATD1047BC, ATD1047C, PGD1047AC, PGD1047M |
| TRW | GDB1752 |
| Textar | 24438 150 0 5, 2443801, 2443901 |
| Valeo | 601295, 606651 |
| Wagner Brake | MX1047, QC1047, QC1047A, QC1047B, ZD1047B |
ATE BRAKE PRODUCTS 607234 Fits Vehicles
- Mercury Mariner (2005-2011)
- Mazda Tribute (2005-2006, 2008-2011)
- Ford Escape (2005-2012)
