Name: Reach Cooling 41-456 Radiator
SKU: 41456
Price: 659.99 USD
Availability: InStock

REACH COOLING part description

Product Description

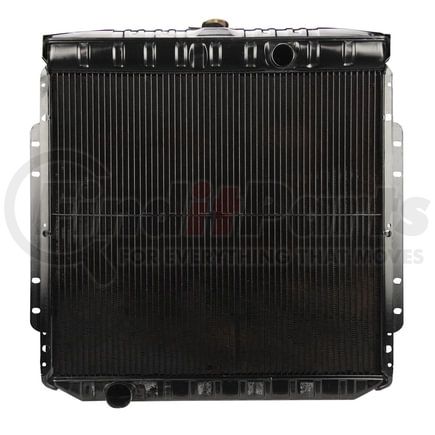

Radiator

Application Summary

Ford:75-77 F-500

Features & Benefits

Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Folded fin edges increase stability and heat disbursement properties.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our fin edges are folded for increased stability and heat disbursement properties.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

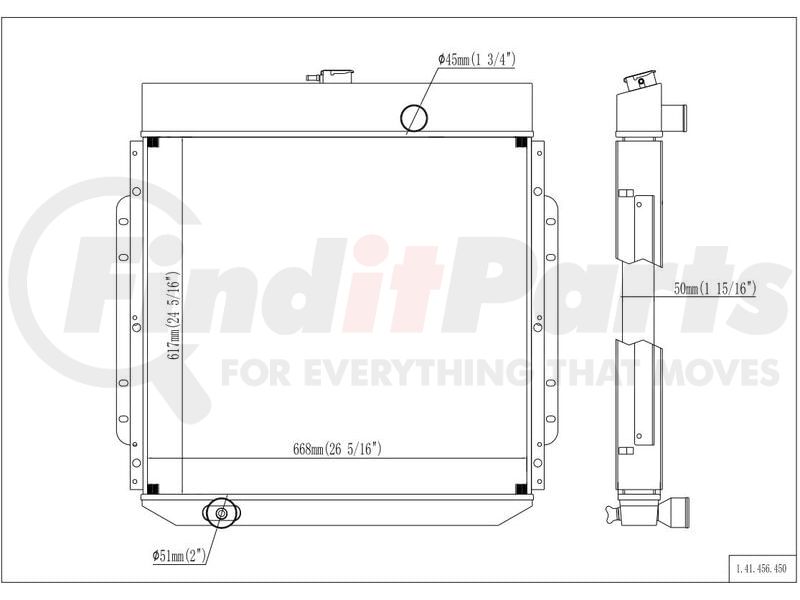

Product Attributes

Inlet Location	Upper Right
Radiator Cap Included	No
Inlet Diameter	45 MM
Outlet Diameter	2 IN
Engine Oil Cooler Included	No
Core Height	24 5/16 IN
Core Width	26.333 IN
Core Row Quantity	3
Core Thickness	50 MM
Core Material	Aluminum
Tank Material	Aluminum
Down Flow Or Cross Flow Type	Down Flow
Outlet Location	Lower Left
Transmission Oil Cooler Included	No
Inlet Diameter	44.45 mm
Core Thickness	1.937 IN
Core Height	617.5 MM
Core Width	668 MM
Outlet Diameter	50.8 MM
Inlet Diameter	1.75 IN
Core Thickness	49.199 MM
Outlet Diameter	51 MM
Core Height	617.524 MM
Core Width	668.858 MM

Additional Information

Warranty Special UOM	TX
Harmonized Tariff Code (HTS)	8708915000
Harmonized Tariff Code (Schedule B)	8708915000
Warranty Time	24
Country of Origin (Primary)	CN
Warranty Time UOM	MO
UPC	06941278931877
VMRS Code	042002001
UNSPSC	25174002
