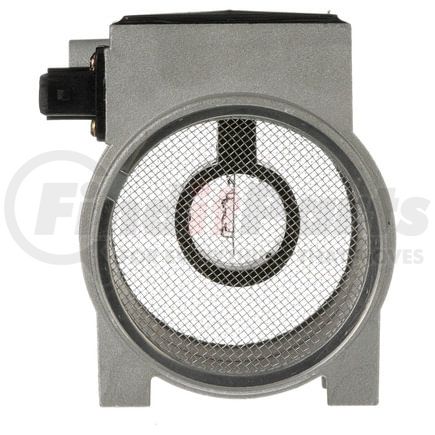

(888) 312-8812 Login SignupDELPHI AF10604 Mass Air Flow Sensor
$13649
Limited availability at this price!
In Stock
Get it by Monday, Jan 12
DELPHI AF10604 Part Description
DELPHI AF10604 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Item Grade | Standard Replacement |
| Color | Black and Silver |
| Housing Included | Yes |
| Inlet Connection Diameter | 3.157 IN |
| Inlet Connection Diameter | 80.2 MM |
| Outlet Connection Diameter | 3.2 IN |
| Outlet Connection Diameter | 80.2 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 4 |
| Housing Material | Aluminum |
| Terminal Quantity | 6 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 117.7 MM |
| Sensor Casing Width | 97 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | No |
| Bolt Hole Center To Bolt Hole Center | 62.00 MM |
| Mounting Hole Diameter | 0.3 IN |
| Seal Quantity | 0 |
| Sensor Casing Length | 4.6 IN |
| Sensor Casing Width | 3.8 IN |
| Bolt Hole Center To Bolt Hole Center | 2.40 IN |
| Mounting Hole Diameter | 8 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604307571 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10604 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 157-0114 |
| Bosch | 63102 |
| BWD | 220047M |
| Datsun/Nissan | 22680-24P00 |
| CARDONE Reman | 74-10002 |
| Wells | SU5050 |
| Standard Motor Products | MF20047 |
| NAPA Reman Computers | XTP410002 |
DELPHI AF10604 Fits Vehicles
- Nissan 300ZX (1985-1987)
DELPHI AF10604 Customer Reviews
No reviews yet
Be the first to review this product!
