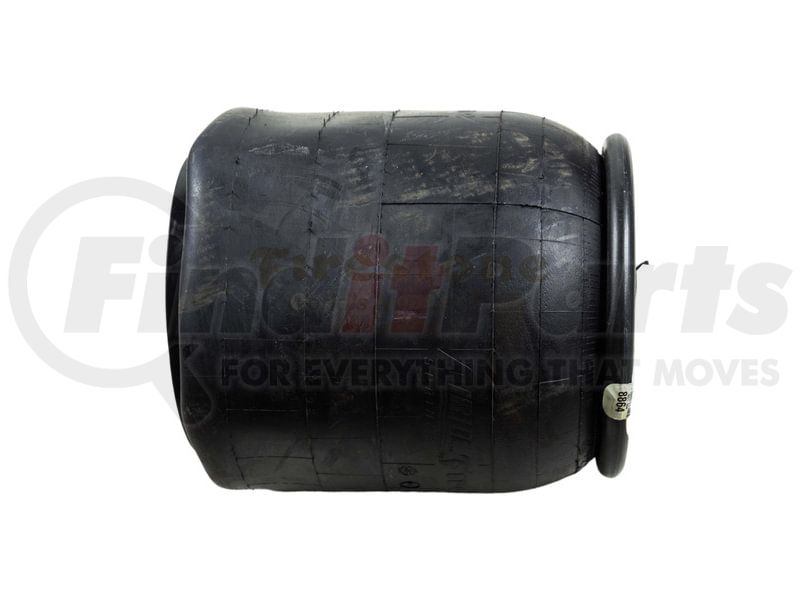

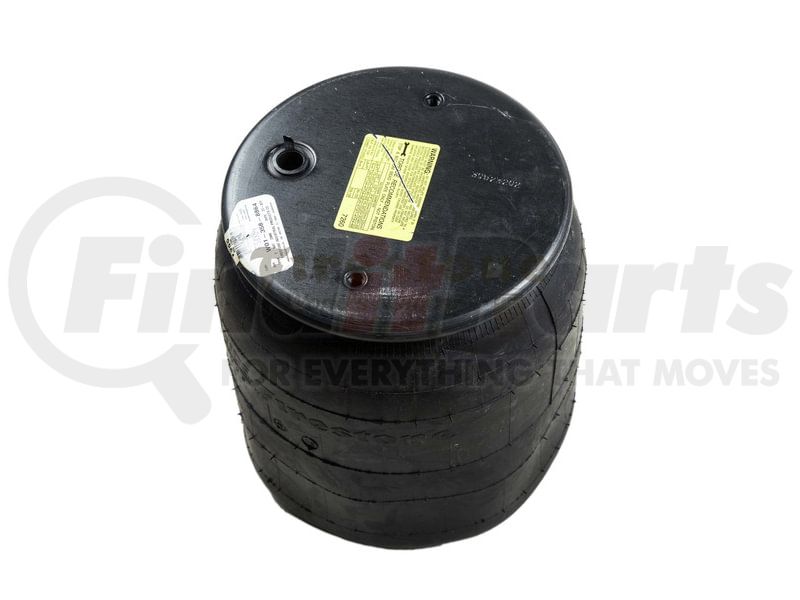

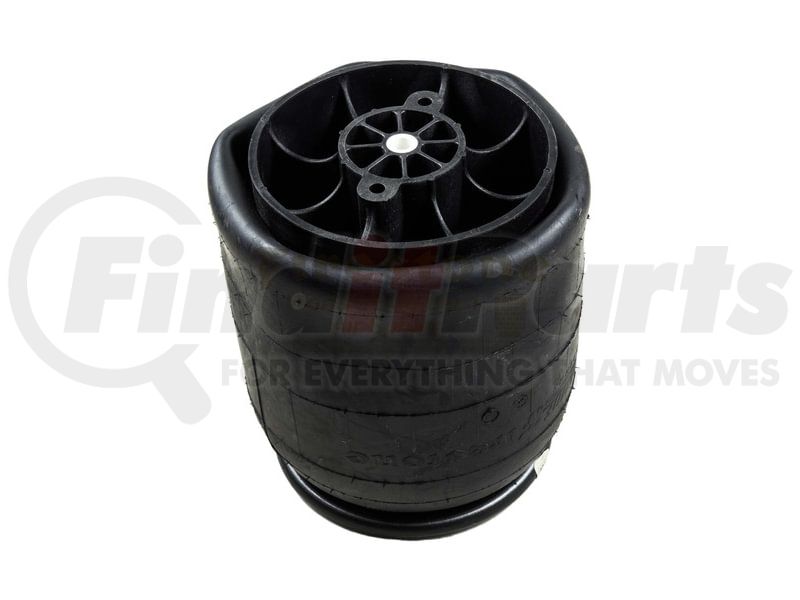

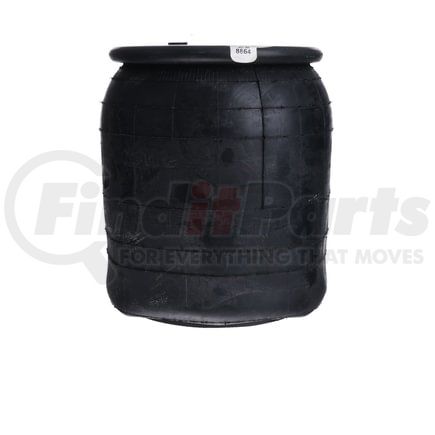

(888) 312-8812 Login SignupMERITOR FS8864 Air Suspension Spring, 8.05 in. Bead Plate Diameter Bottom, 9.00 in. Bead Plate Diameter Top
Tap to view 8 more
MSRP: $588.70
$21049
Save $378.21
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
MERITOR FS8864 Part Description
Manufacturer
Product Description
Firestone Air Spring
Features & Benefits
- Ride height support helps the vehicle adjust as cargo weight changes
- Flexible bellows action cushions road impact before it reaches the frame
- Suspension movement stays controlled across docks, yards, and highway lanes
- Load-carrying function helps reduce harsh chassis movement on rough pavement
- Service work benefits from restoring the air spring’s lifting function
Meritor Air Suspension Spring
The Meritor Air Suspension Spring helps the suspension carry changing loads without letting every bump turn into a hard hit through the frame. Trucks and trailers moving between docks, yards, highways, and uneven pavement rely on the air spring to do quiet work underneath the chassis. It supports ride height, cushions road shock, and helps the suspension react as cargo weight changes. During air suspension service, the Meritor FS8864 is useful when the spring area shows air loss, uneven height, or reduced cushioning over rough routes.
| Aftermarket Extended Warranty - General | 3 Years / 300K Miles |
| Application | Peterbilt 03-08716 (New Low Leaf Supercedes 03-07887 effective 04/04); C811011 Paccar Part |
| Bead Plate Diameter Bottom | 8.05 in. |
| Bead Plate Diameter Top | 9.00 in. |
| Collapsed Height | 7.75 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 24.50 in. |
| Part Diameter | 10.12 in. |
| Piston Height | 6.73 in. |
| Stud Configuration-Bottom | 1 |
| Stud Configuration-Top | 3 |
| Stud Mount-Bottom Flat | Flat |
| Stud Mount-Top Flat | Flat |
| VMRS Code | 016-008-000 |
Meritor Air Suspension Spring
Meritor air suspension spring protects tractors and trailers from road shocks and keep your ride a comfortable one. This aftermarket air spring covers a wide range of OEM specifications at affordable prices.
Features & Benefits
- Lightweight, high-strength pistons with support washers provide exceptional strength and durability
- Made of premium-grade steel and aluminum with electrostatic coating for oxidation resistance
- Special chromium coating on bead plate protects against rust, corrosive chemicals, and harsh operating environments
- Service work benefits from restoring the air spring’s lifting function
MERITOR FS8864 Specifications
Product Attributes
| Aftermarket Extended Warranty - General | 3 Years / 300K Miles |
| Application | Peterbilt 03-08716 (New Low Leaf Supercedes 03-07887 effective 04/04); C811011 Paccar Part |
| Bead Plate Diameter Bottom | 8.05 in. |
| Bead Plate Diameter Top | 9.00 in. |
| Brand | Meritor |
| Collapsed Height | 7.75 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 24.50 in. |
| Pallet Quantity | 32 |
| Part Diameter | 10.12 in. |
| Piston Height | 6.73 in. |
| Product Category | Genuine OE Product |
| Stud Configuration-bottom | 01 |
| Stud Configuration-top | 03 |
| Stud Mount-bottom Flat | Flat |
| Stud Mount-top Flat | Flat |
| Weight | 13.74 |
| Air Spring Type | Reversible Sleeve |
| Max Height | 24.50 in. |
MERITOR FS8864 Cross References
| Brand | Part Number |
|---|---|
| Automann | 566CT66666, AB1DK23L8864 |
| CONTITECH | 91019P898 |
| Continental-ContiTech | 66666, 91019P898 |
| DAYTON PARTS BATCO | 3528864 |
| FIRESTONE | W013588864 |
| Firestone Ride-Rite | W013588864 |
| Peterbilt | 308716 |
| WORLD AMERICAN | WA01-8864C |
