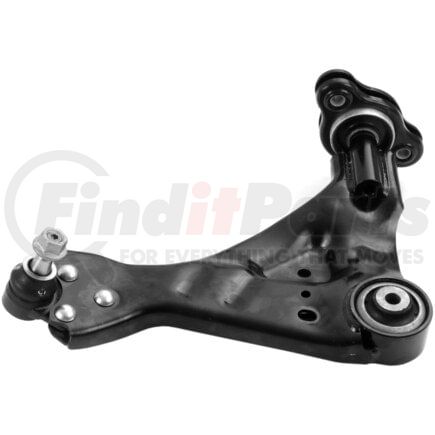

(888) 312-8812 Login SignupDELPHI TC3906 Control Arm and Ball Joint Assembly
Tap to view 2 more
$34349
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC3906 Part Description
DELPHI TC3906 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 5.240 IN |
| Control Arm Maximum Width | 133.10 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.630 IN |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 1.043 IN |
| Ball Joint Stud Length | 26.50 MM |
| Control Arm Maximum Length | 18.504 IN |
| Control Arm Maximum Length | 470.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 16.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604356333 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC3906 Part Interchanges
| Brand | Part Number |
|---|---|
| Mercedes-Benz | 447 330 14 07 |
DELPHI TC3906 Fits Vehicles
- Mercedes-Benz Metris (2016-2020)
