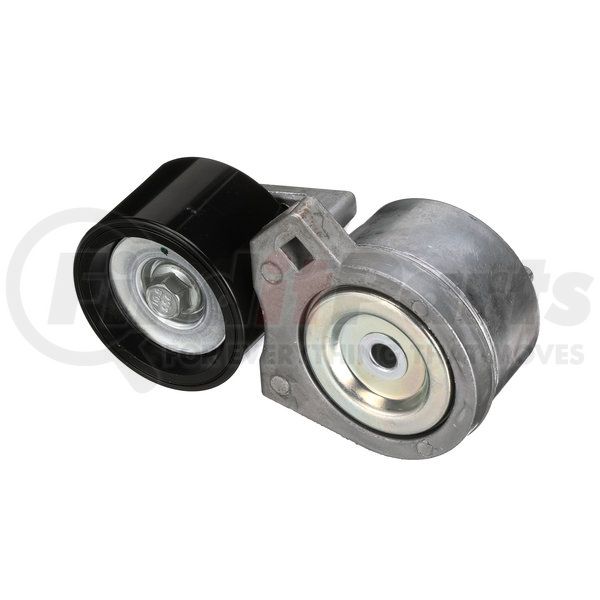

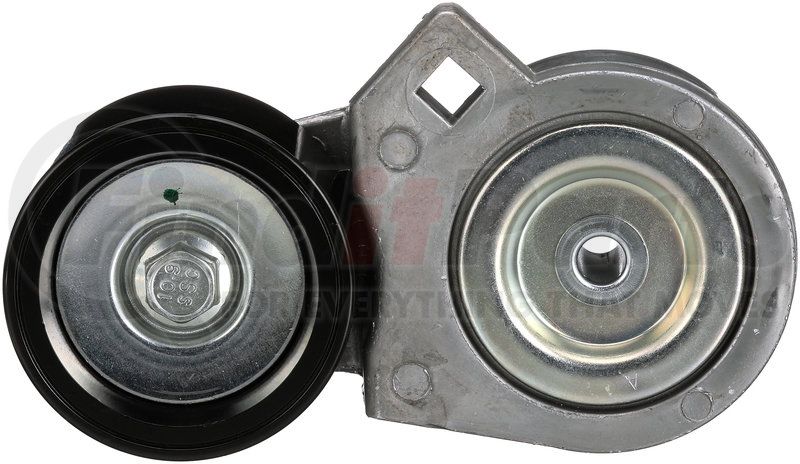

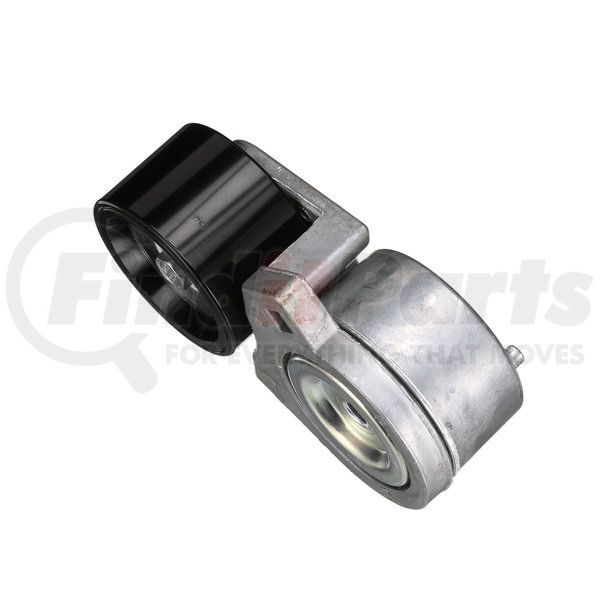

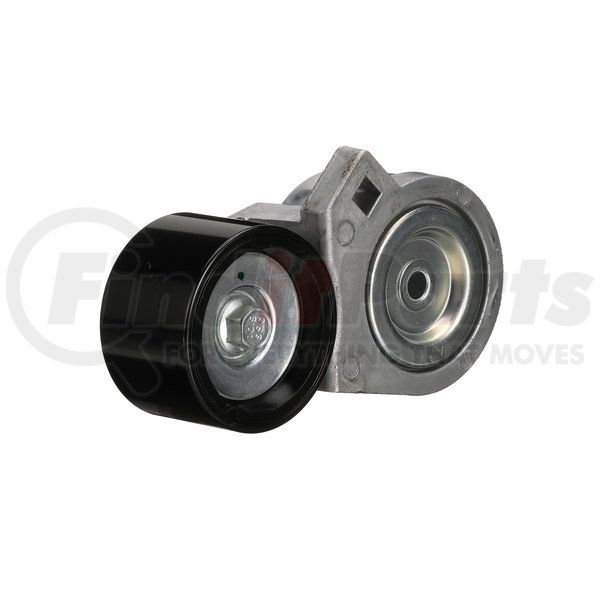

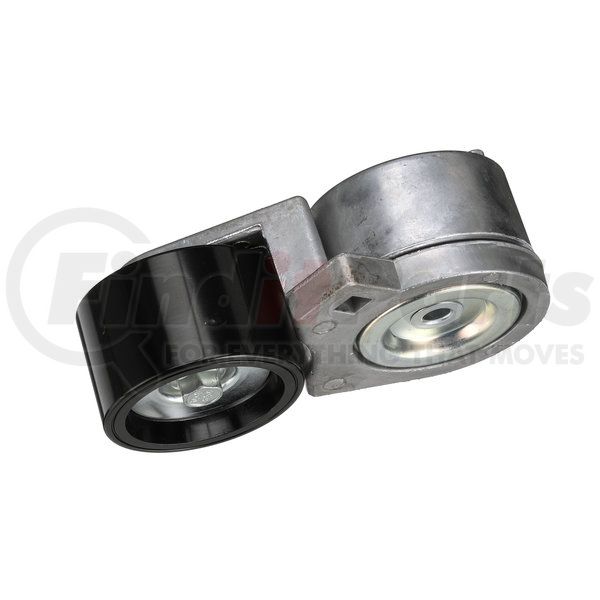

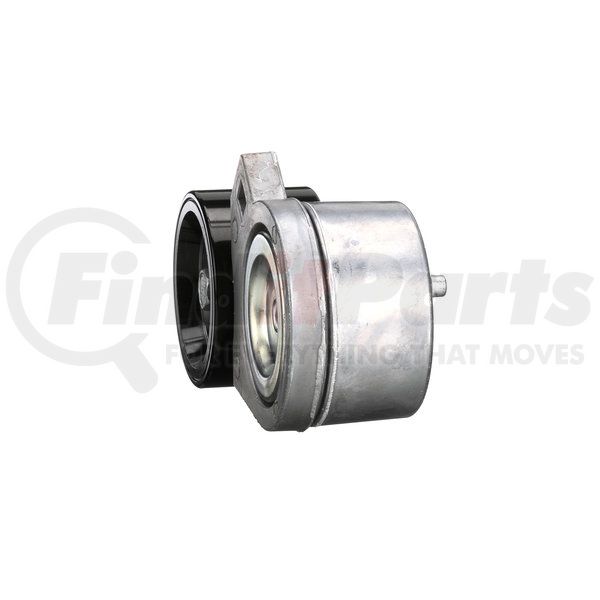

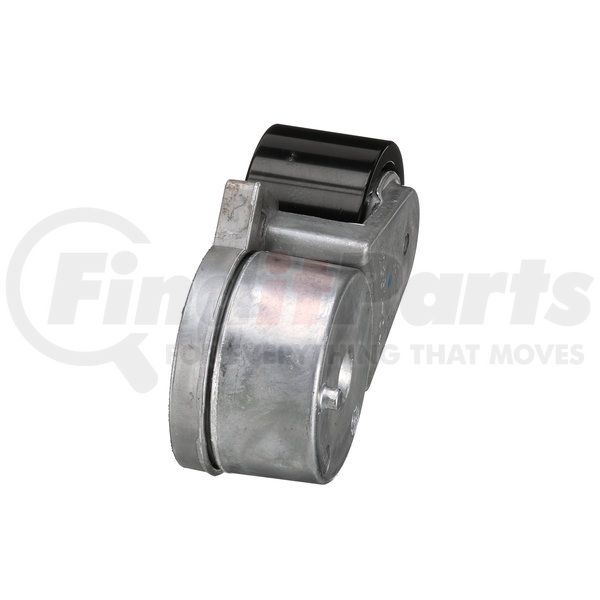

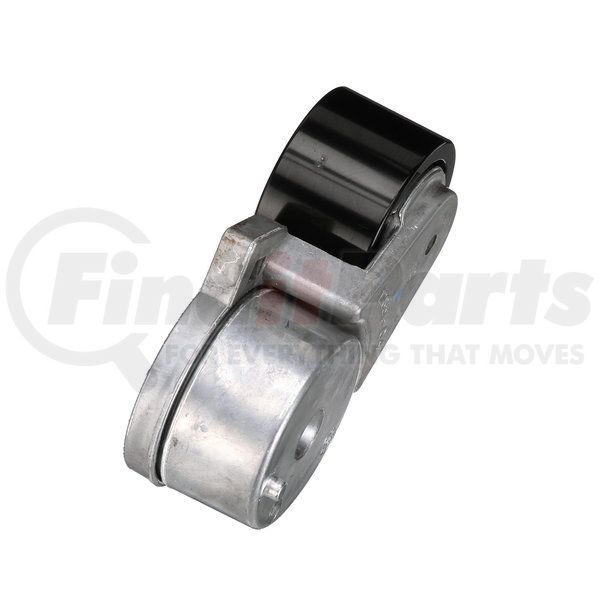

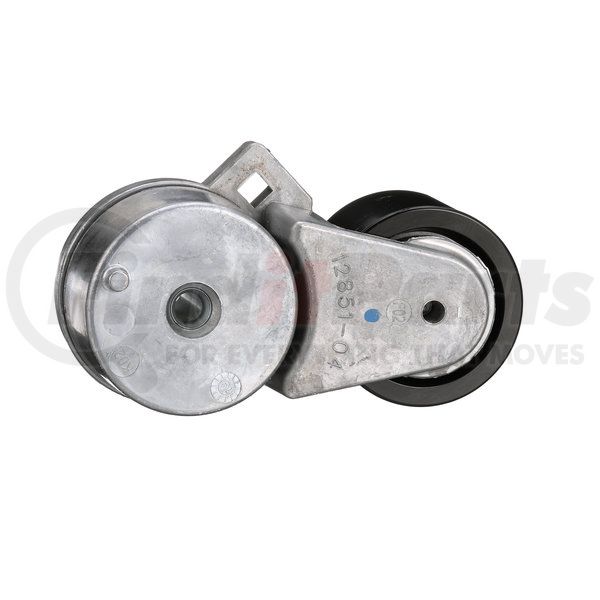

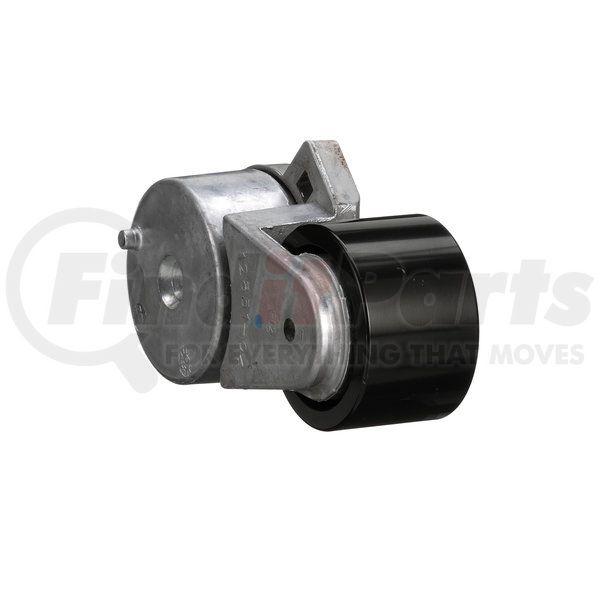

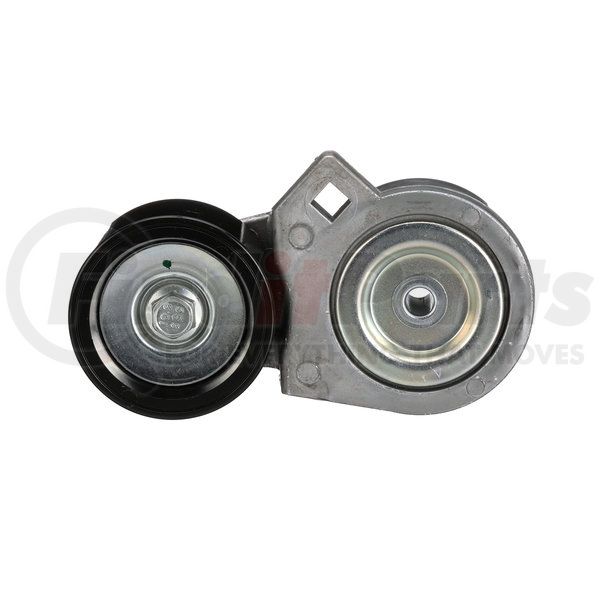

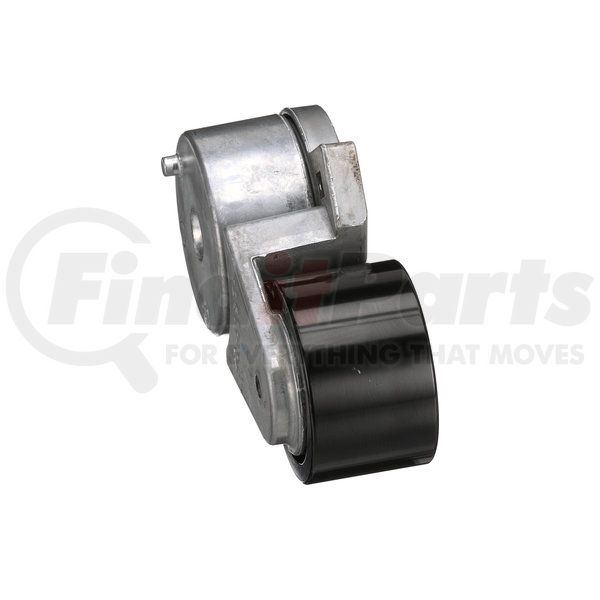

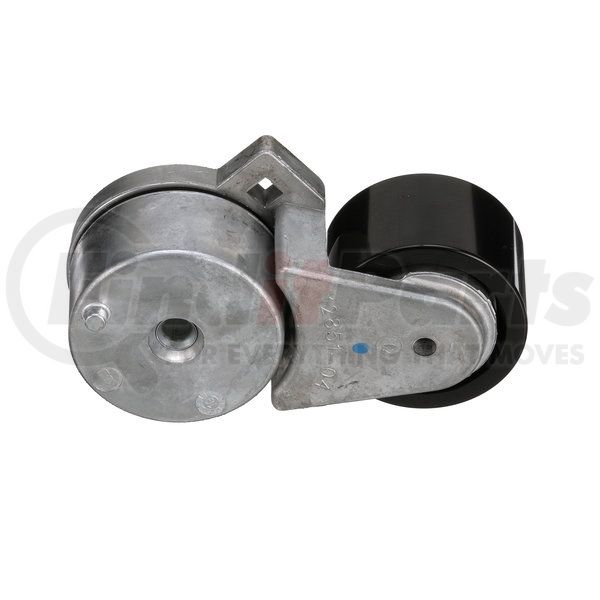

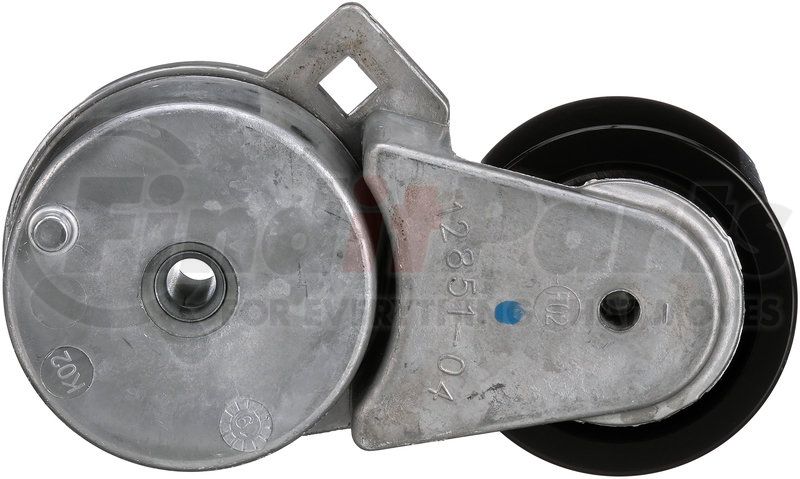

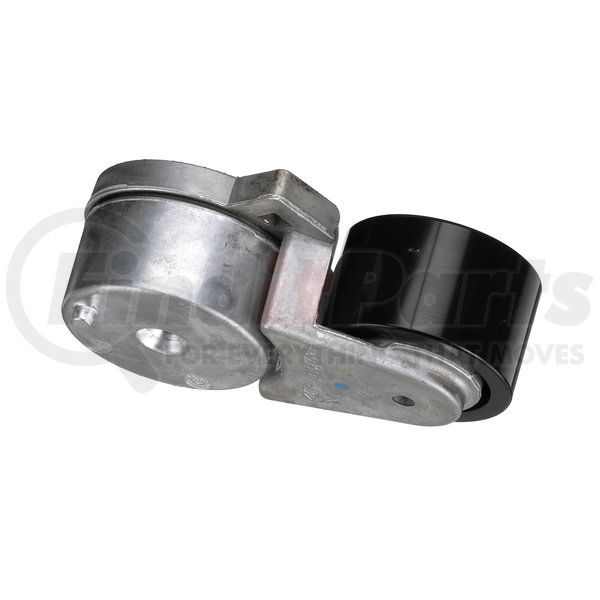

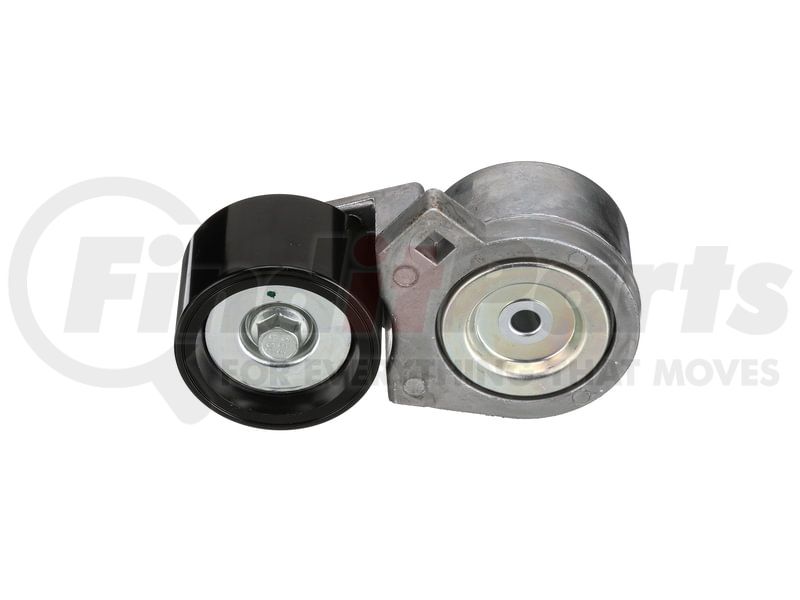

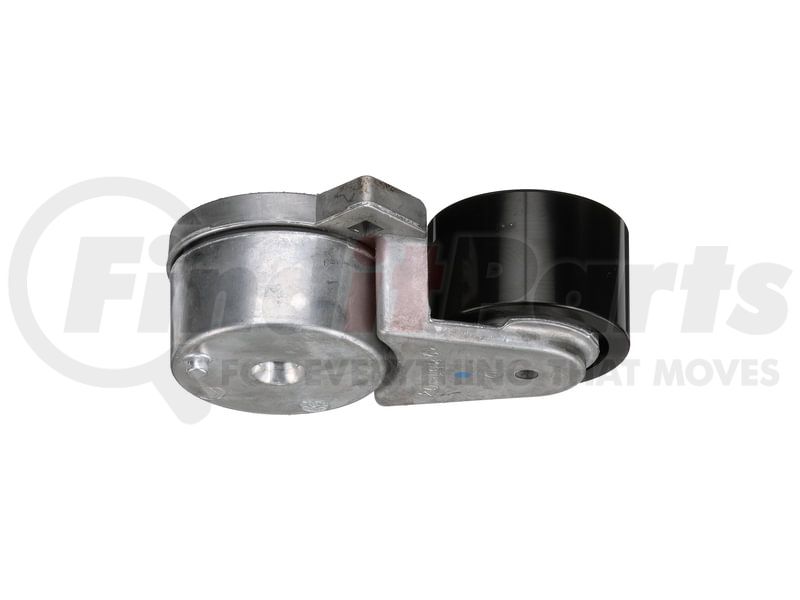

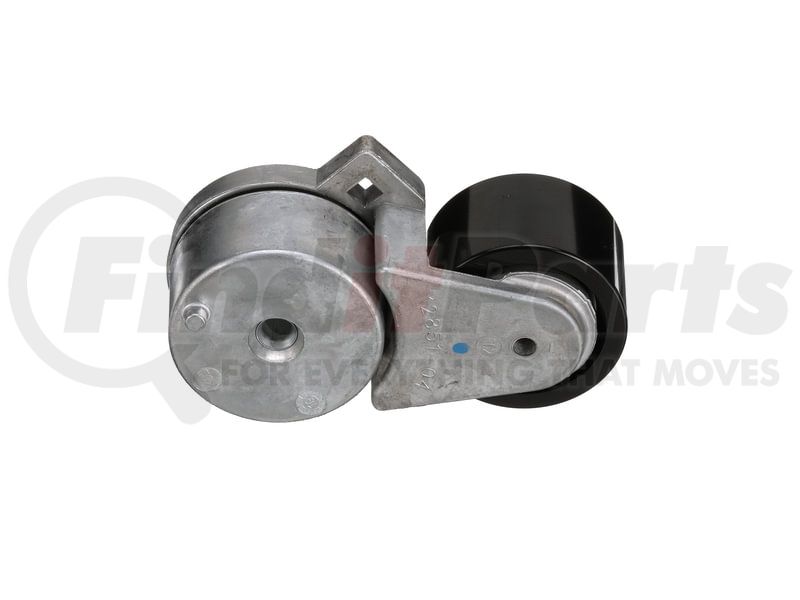

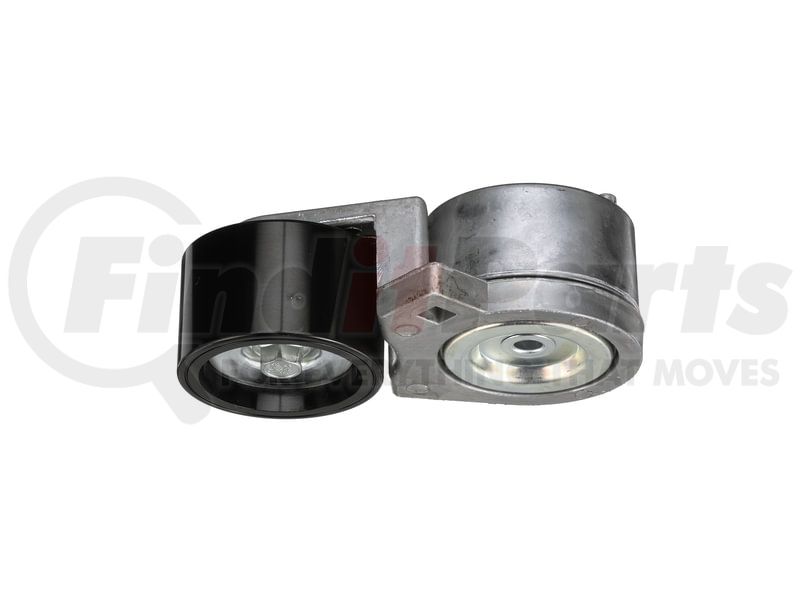

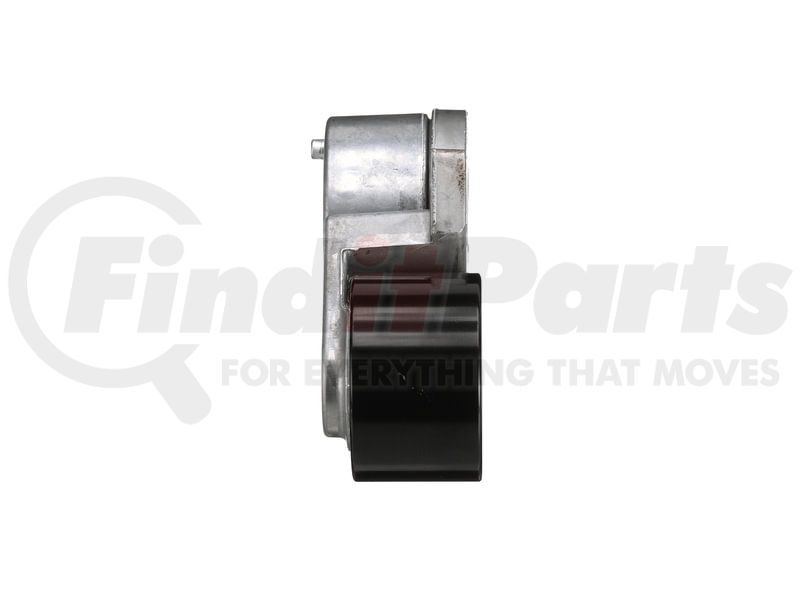

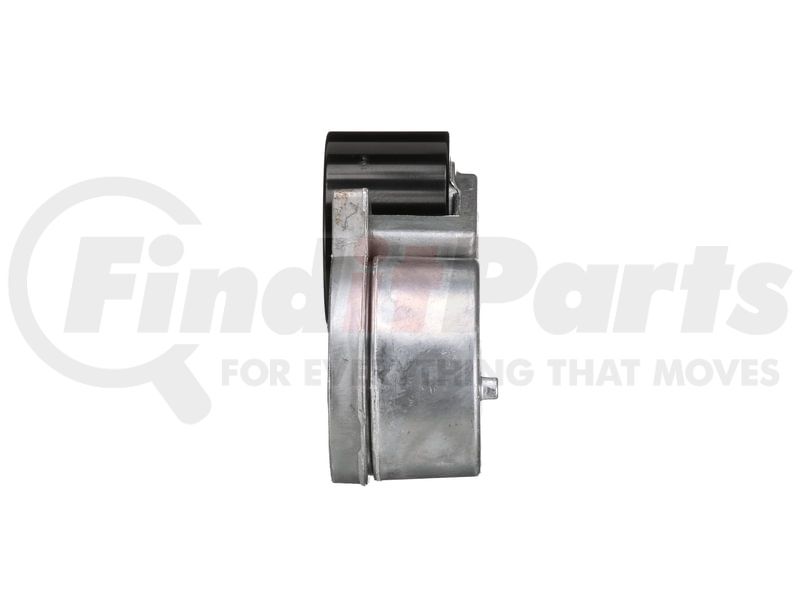

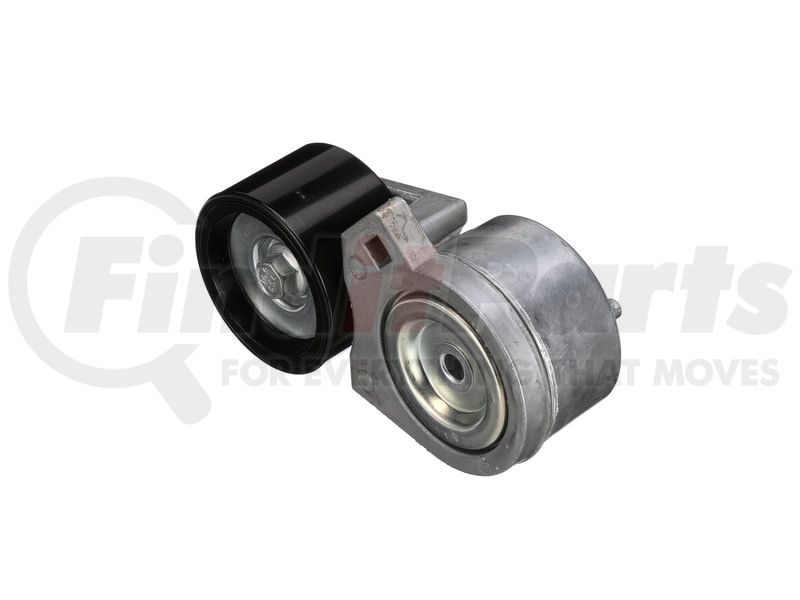

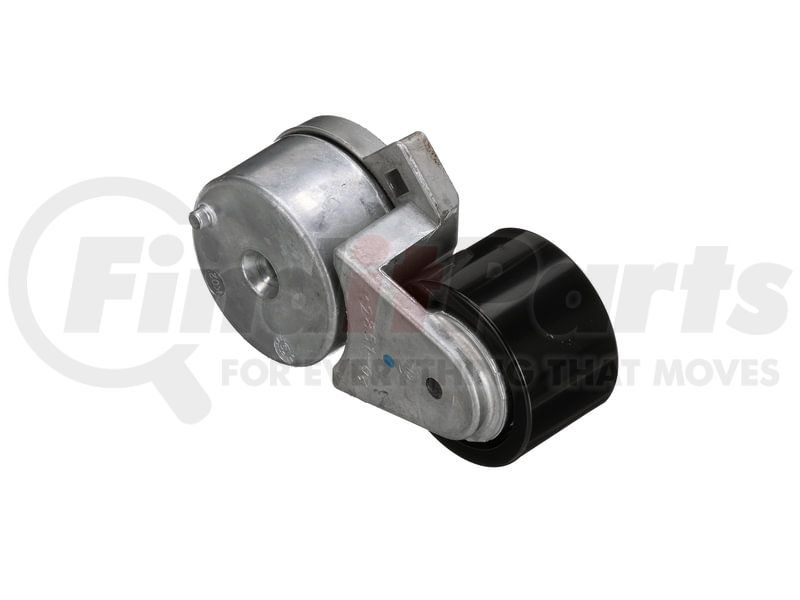

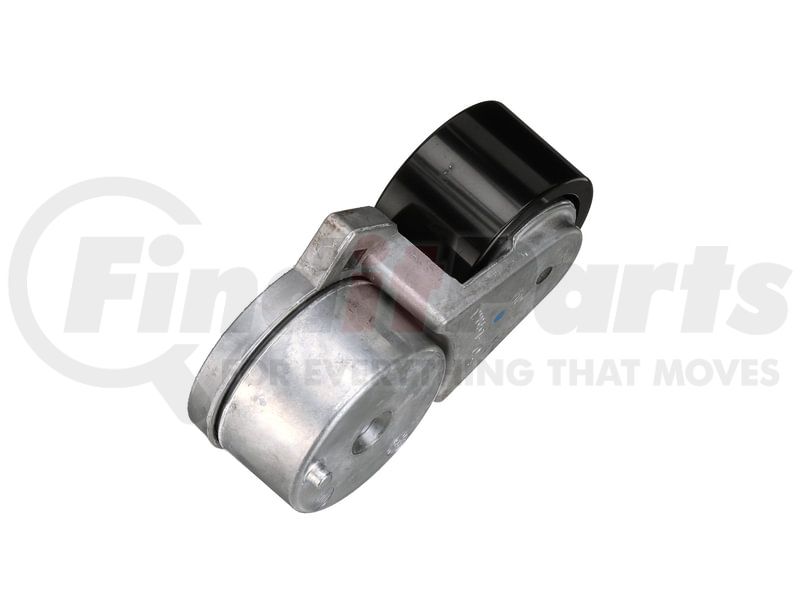

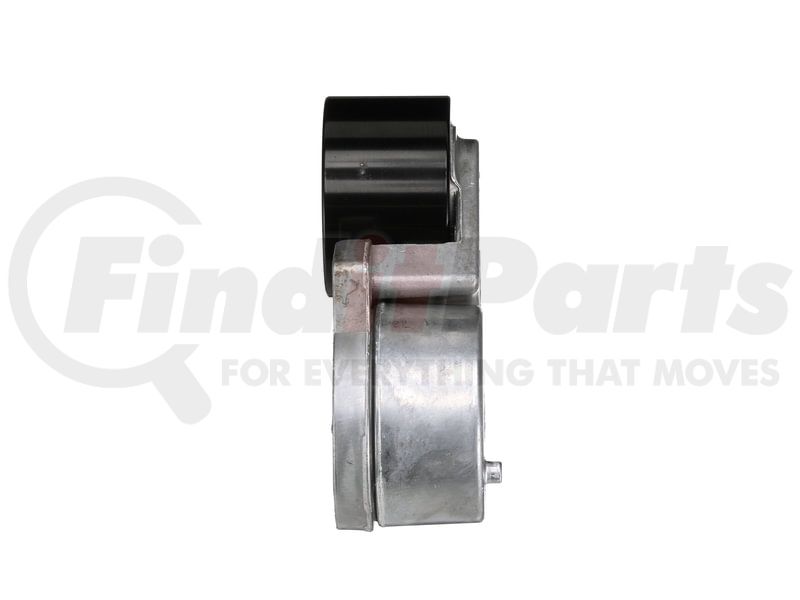

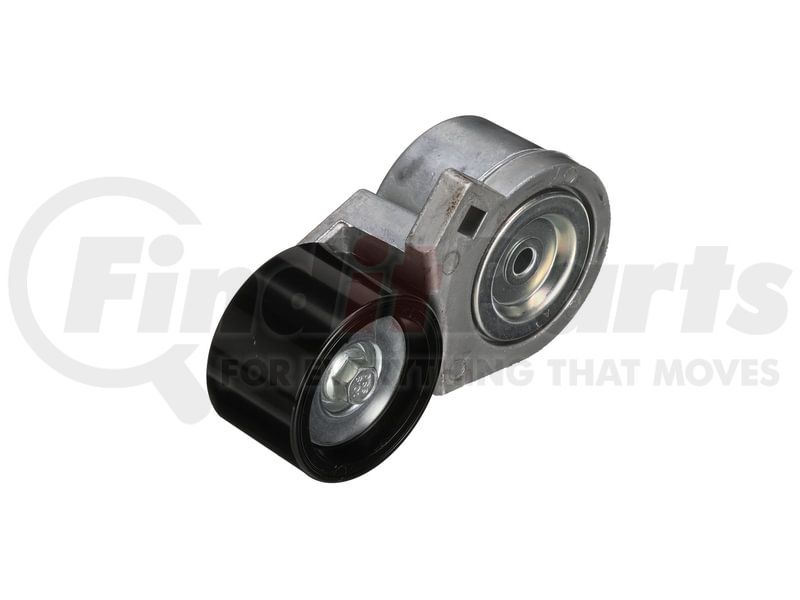

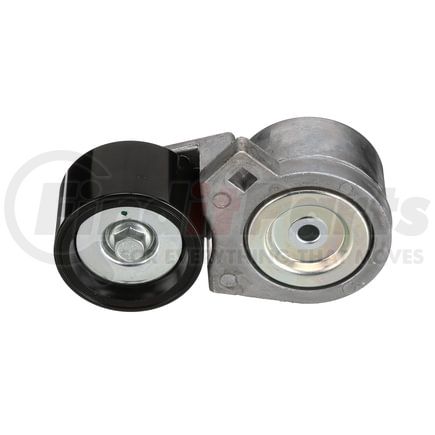

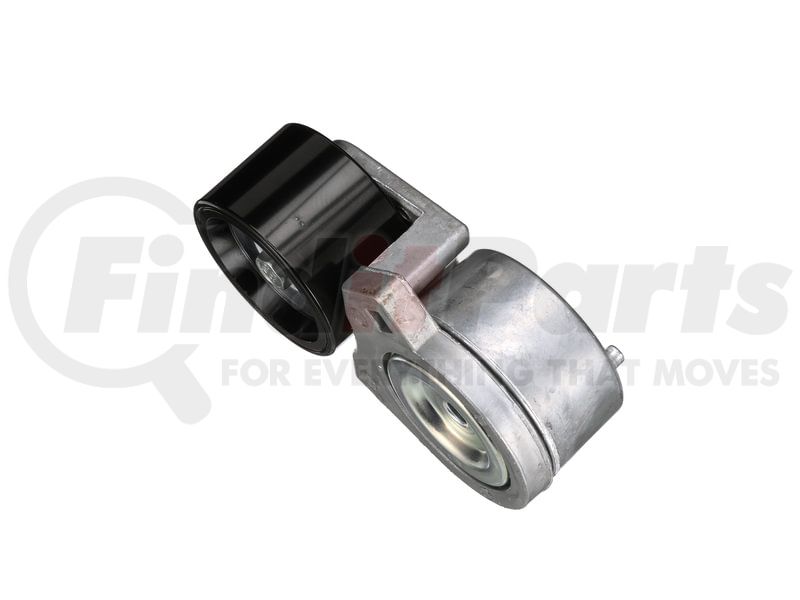

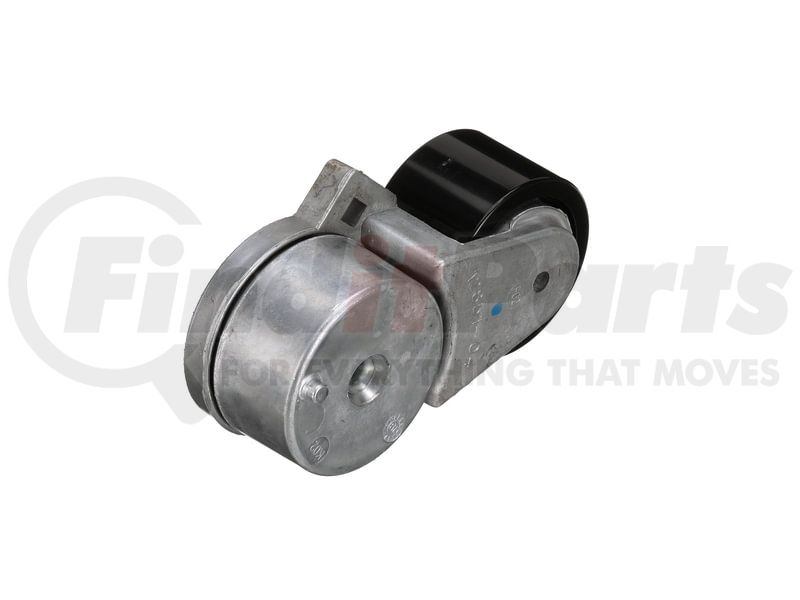

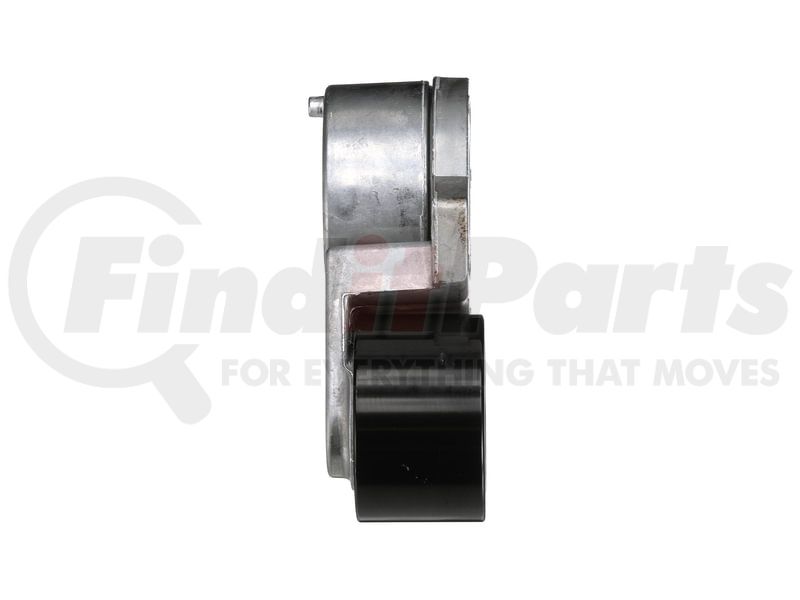

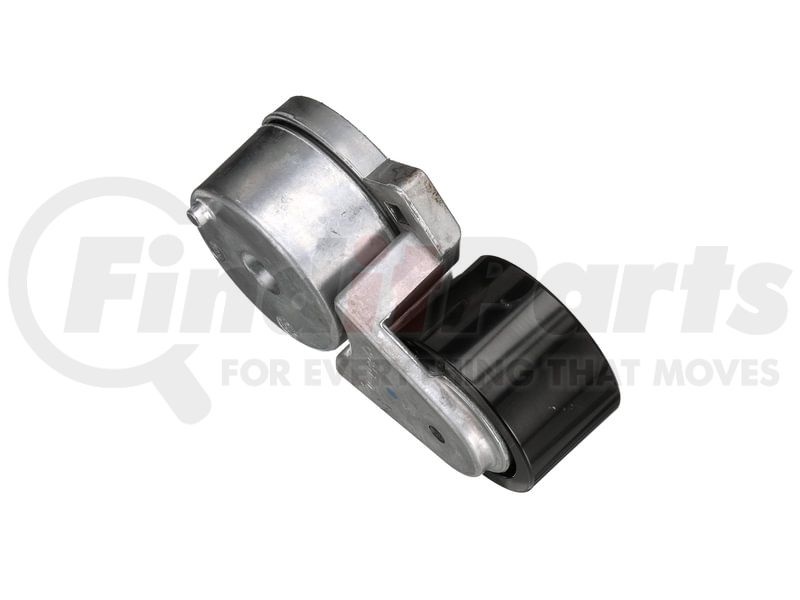

GATES 38523 Pulleys and Tensioners - Green Stripe DriveAlign Heavy-Duty Belt Tensioner

★★★★★ (0)
Gates 38523 Accessory Drive Belt Tensioner Assembly Pulleys and Tensioners - Green Stripe DriveAlign Heavy-Duty Belt
GATES
Tap to view 14 more
Gates 38523 Accessory Drive Belt Tensioner Assembly Pulleys and Tensioners - Green Stripe DriveAlign Heavy-Duty Belt

$154.99

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 17
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

GATES 38523 Part Description

Manufacturer

GATES

Product Description

FleetRunner Heavy-Duty Automatic Belt Drive Tensioner

Application Summary

2008-04 Mack, CV Series, Mack AMI Diesel, Tensioner Assy. - Fan

Features & Benefits

  • Optimized components engineered for maximum strength and durability
  • Patented design provides superior belt alignment and tension for improved drive efficiency and life
  • Patented labyrinth seal prevents contamination of internal parts for maximum durability and service life
  • Long-lasting steel pulleys with dust shields to protect internal bearings from contamination
  • Double row bearings carry more load and last up to 3X longer than two individual bearings
  • Chrome-silicone round torsion spring for less ?ex-fatigue than ?at-spring designs
  • Chrome-silicone round torsion spring for less flex-fatigue than flat-spring designs
  • Patented damping mechanism provides maximum stability, reducing vibration and increasing the life of the belt, tensioner and other accessory drive components

GATES 38523 Specifications

Product Attributes

Pulley Quantity1
Groove Quantity0
MaterialSteel
Contact SurfaceSmooth/Backside
Pulley 1 FlangedNo
Outside Diameter2.95 IN
Bearing Bore Inside Diameter1.18 IN
Width1.57 IN
Belt TypeV-Ribbed
Mounting Hole Quantity1

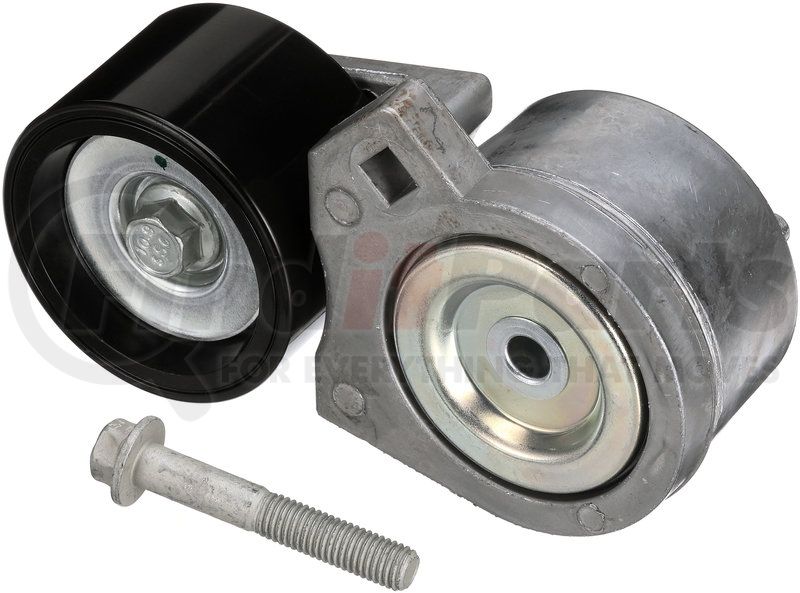

ContentsTensioner Assy., Bolt
Pulley 1 Groove Quantity0
Outside Diameter 1 (in)2.95
Outside Diameter 1 (mm)75
Width 1 (in)1.57
Width 1 (mm)40
Bearing Bore Inside Diameter30 MM

Additional Information

Country of Origin (Primary)CA
Harmonized Tariff Code (Schedule B)8708998180
Stock StatusS
UPC00072053880212
VMRS Code042003076
UNSPSC26111805

GATES 38523 Cross References

BrandPart Number
77801023, GT38523
4-SEASONS45609
ACDelco38523
Alliance Truck PartsGT38523
BANDO680083
CARQUEST38523
CONTINENTAL AG49530, 49600, 49028
Continental Belt49577
Dayco89432, 89449, 89450
Goodyear49530
KIT MASTERS638523, 689449
Litens910008A
Mack87GB41B, 87GB41, 87GB41A, 87GB41C
NAPA Belts/Hose38523
SKFVKM910008
Tendeco910008
Volvo Cars20851217

GATES 38523 Fits Vehicles

  • Mack CH (1998-2003)
  • Mack CHN (2004-2006)
  • Mack CL (1998-2001, 2003)
  • Mack CT (2005)
  • Mack CV (2001-2008)
  • Mack CX (1998-2002)
  • Mack CXN (2006-2007)
  • Mack CXP (2006)
  • Mack DM (1999-2002, 2004-2005)
  • Mack DMM (1999-2000)
  • Mack LE (2001, 2004-2005)
  • Mack MR (1999-2002)
  • Mack RB (1998-2000)
  • Mack RD (1998-2003)
