H6134171 by BUYERS PRODUCTS

H6134171 by BUYERS PRODUCTS

Part Number
H6134171
Manufacturer
BUYERS PRODUCTS
Description

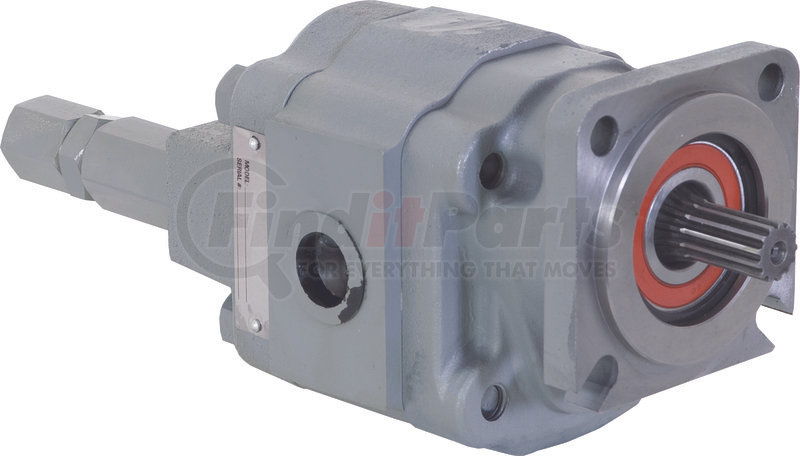

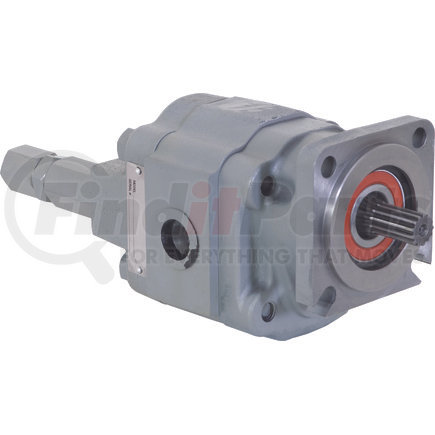

Live Floor Hydraulic Pump With Relief Port And 1-3/4 Inch Diameter Gear

details

$51545

7 day lead time

limited availability at this price!

Does not qualify towards free shipping promotion details
Item will ship about 7 days after the date of purchase

Related Products

BUYERS PRODUCTS part description

Built tough to handle live floor applications.

Relief port designed to protect the system from pressure spikes.

Features a heavy duty roller bearing construction.

Eight-doweled design adds extra strength.

High pressure rated -- will handle a maximum 3000 PSI.

The heavy duty Live Floor Hydraulic Pump with Relief Port from Buyers Products is built tough to handle continuous, high-pressure operations such as a live floor. It features counter clockwise rotation.

The 1 in. relief port on the rear protects the pump's operation from spikes in pressure that could damage it and other parts of your hydraulic system.

The pump is constructed of cast iron with Teflon-coated bronze thrust plates and heavy duty roller bearings. Eight internal dowels protect the structural integrity of the pump.

Two models both handle a maximum 3000 PSI while delivering a flow of either 18 GPM or 24.2 GPM at 1000 RPM.

The pump is designed to be 4-bolt mounted into an SAE B mount.

Product Common Use: Truck and Trailer Hydraulic Systems, Live Floor Applications

Specifications

  • Displacement 3 in.³/r
  • Displacement 18 GPM
  • Gear Width 1.750 "
  • Input Mount Type Integral Bracket
  • Material Cast Iron
  • Mount Type SAE B 4 Bolt
  • Pilot Diameter 4.00 "
  • Shaft Size 7/8-13
  • Shaft Type Splined
  • Ports (rear/side) Rear/Side
  • Inlet Port Size 1 1/2 NPT
  • Maximum Pressure 3000 PSI
  • Direct or Remote Mount Direct Mount
  • Outlet Port Size 1 1/4 NPT
  • Rotation Counterclockwise
  • Gear Size 2.50 "
  • Flow at 600 RPM 14.52 GPM
  • Flow at 1000 RPM 18 GPM
  • Flow at 1800 RPM 43.56 GPM
  • Flow at 900 RPM 21.78 GPM
  • Flow at 1200 RPM 21.80 GPM
  • Flow at 1500 RPM 27.00 GPM
  • Flow at 2100 RPM 50.82 GPM
  • Rear Port Size 1 NPT
  • Min Order Qty 1
  • Multiple Sale Qty 1
  • Product Code 620
  • Sell Pack Type Box
  • Shipping Weight 51.000
  • UPC 724920095167

Attributes

Maximum Pressure 3000 PSI
Input Mount Type Integral Bracket
Ports rearside Rear/Side
The heavy duty Live Floor Hydraulic Pump with Relief Port from Buyers Products is built tough to handle continuous, high-pressure operations such as a live floor. It features counter clockwise rotation.The 1 in. relief port on the rear protects the pump's operation from spikes in pressure that could damage it and other parts of your hydraulic system.The pump is constructed of cast iron with Teflon-coated bronze thrust plates and heavy duty roller bearings. Eight internal dowels protect the structural integrity of the pump. Two models both handle a maximum 3000 PSI while delivering a flow of either 18 GPM or 24.2 GPM at 1000 RPM. The pump is designed to be 4-bolt mounted into an SAE B mount.

Buyers Products® is a global leader in manufacturing and distributing truck and trailer hardware, toolboxes, hydraulics, cables and controls, electrical and lighting components, pneumatics, and truck equipment and accessories. All these products are engineered, produced, and assembled in the USA, where the company was first founded in 1946. From a modest distributor of truck and trailer parts, Buyers Products has grown into one of the largest truck parts manufacturers and distributors in the heavy duty truck and equipment market today. Its years of expertise in the industry have allowed it to refine its manufacturing capabilities. From forging, stamping, and laser cutting to robotic welding and powder coating, Buyers Products integrates its dedication to quality in manufacturing products that provide value to its customers.
