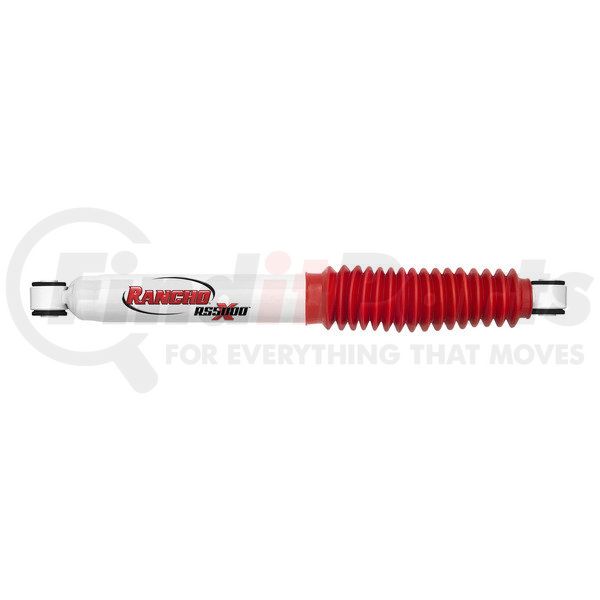

RANCHO RS55602 RS5000X Suspension Shock Absorber

★★★★★ (0)

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RANCHO RS55602 Part Description

Manufacturer

RANCHO

Product Description

RS5000X Suspension Shock Absorber

Features & Benefits

  • IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
  • MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
  • STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
  • HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
  • HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
  • SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
  • REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
  • MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
  • BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

RANCHO RS55602 Specifications

Product Attributes

Compressed Length9.15 IN
Travel Length4.32 in
FinishPainted
Grade TypePerformance
Extended Length13.48 in
Gas ChargedYes
Adjustable DampingNo
Dust Shield IncludedYes
Includes Bump StopNo
Upper Mount CodeS4
Lower Mount CodeXP12
Hydraulic LockoutNo
Shock Absorber Bore Size30 MM
Internal Rebound BumperYes
Body Diameter1.75
Lower Mount TypeCross Pin Mount - Open Ended, 3/8" Hole ID (Both Ends) X 3.3/16" Pin Length (Hole Center to Center)
Part DescriptionShock Absorber
Parts Pack(s)P01134
Upper Mount TypeStem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Compressed Length232.4 MM
Extended Length342.4 MM
Travel Length109.7 MM
Shock Stroke4.32 IN
Shock Stroke109.7 MM
Lower Mount CodeXP12
Upper Mount CodeS4
Shock Absorber Rod End Measuring PointCenter of Cross Pin
Shock Absorber Body End Measuring PointBase of Stem
Mounting Hardware IncludedYes
Body Diameter1.75 IN
Body Diameter44.5 MM
Cylinder Outside Diameter1.75 IN
Cylinder Outside Diameter44.5 MM
Body MaterialSteel
Cylinder MaterialSteel
Body ColorWhite
Cylinder ColorWhite
ColorWhite
Cylinder FinishPainted
Boot IncludedYes
Dust Shield Diameter3.11 IN
Dust Shield Diameter78.994 MM
Dust Shield MaterialRubber
Dust Shield ColorRed
Rod Diameter0.488 IN
Rod Diameter12.4 MM
Shaft MaterialNitro-Carburized Steel
Shock Absorber Bore Size1.181 IN
Internal Rebound SpringNo
TypeTelescopic
Active or Passive SuspensionPassive
Adjustable CompressionNo
Adjustable ReboundNo
Valving TypeProgressive
Self-LevelingNo
Adjustable Ride HeightNo
Maximum Ride Height Lowering Distance0 IN
Maximum Ride Height Raising Distance0 IN
Air AdjustableNo
Air Ride SuspensionNo
Bladder(s) IncludedNo
Bladder Sleeve(s) IncludedNo
Bladder Heavy Duty Crimping Rings IncludedNo
New Or RemanufacturedNew
Coil Over Springs IncludedNo
Bearing Plate IncludedNo
Spring IncludedNo
Coil Spring Insulator(s) IncludedNo
Spring Isolators IncludedNo
Spring Seat IncludedNo
Remote ReservoirNo
Strut Mount Insulator(s) IncludedNo
Adjustable DampingNo
Internal Construction TypeTwin Tube
Lower Mount TypeCross Pin
Upper Mount TypeStem
Prop 65 Label (Yes/No)No

Additional Information

Country of Origin (Primary)US
Canadian Harmonizing Tariff Code8708803000
Harmonized Tariff Code (Schedule B)8708801600
Harmonized Tariff Code (HTS)8708801600
MSDS Sheet Number01164
UPC00039703011471
VMRS Code016008003
UNSPSC25172011

RANCHO RS55602 Cross References

BrandPart Number
FCS341517
FCS Auto Parts341517
Gabriel61504
KYB343127
RanchoRS5602

RANCHO RS55602 Fits Vehicles

  • Dodge D50 (1979-1982)
  • Dodge Dakota (1987-1996)
  • Dodge Power Ram 50 (1983-1986)
  • Dodge Ram 50 (1983-1993)
  • Ford Courier (1972-1982)
  • Mazda B2000 (1982-1984)
  • Mazda B2200 (1982-1984)
  • Mitsubishi Mighty Max (1983-1994)
  • Plymouth Arrow (1979-1980)
  • Plymouth Arrow Pickup (1979-1980, 1982)
  • Toyota Pickup (1975-1983)
