STANDARD IGNITION part description

Product Description

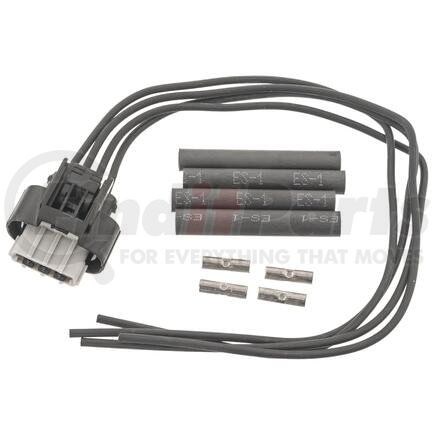

Map Sensor Connector

Features & Benefits

  • Protective Tubing Included
  • Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
  • The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
  • The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
  • All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
  • Offering thousands of high-quality pigtails and sockets for nearly every electrical job.

Product Attributes

Attachment Method Push On
Bend Angle (Deg.) 0
Connector Gender Male
Connector Quantity 1
Connector Shape Oval
Contact Terminal Material Metal
Dust Shield Included No
Length - Inches 1.25
Material Plastic
Number Of Splice Connectors Includ 4
Number of Wires 4
Splice Connectors Included Yes
Terminal Gender Female
Terminal Quantity 4
Terminal Type Blade
Water Resistant Yes
Weatherproof Sealed Yes
Wire Gauge (ga) 16
Wire Quantity 4
Wiring Harness Included Yes
Wiring Harness Length (in) 12
Wiring Harness Length (mm) 304.8

Additional Information

Country of Origin (Primary) TW
Harmonized Tariff Code (HTS) 8536908585
Warranty Distance 36000
Warranty Distance UOM MI
Warranty Time 36
Warranty Time UOM MO
UPC 00033086554822

Part Interchanges

Fits Vehicles

  • Ford Explorer (2015)
  • Lincoln MKZ (2018-2019)
  • Ford Fusion (2017-2020)
  • Ford Focus (2013, 2015-2016, 2018)
  • Ford Transit Connect (2014-2016)
  • Ford Transit-350 (2015-2019)
  • Lincoln MKC (2015-2016, 2018-2019)
  • Ford Transit-350 HD (2015-2019)
  • Ford Transit-250 (2015-2019)
  • Ford Transit-150 (2015-2019)
  • Ford Fiesta (2014-2017)
  • Ford Edge (2012-2018)
  • Ford Escape (2013, 2018-2019)
  • Lincoln MKT (2013-2014)
  • Ford F-150 (2011-2014)
