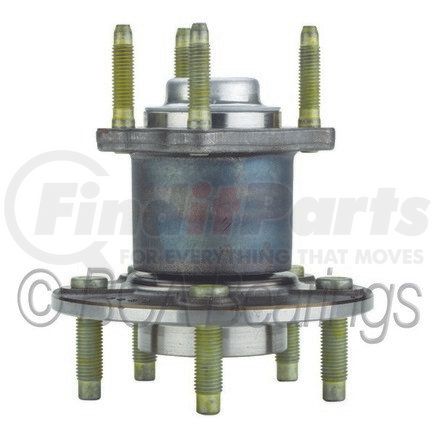

(888) 312-8812 Login SignupNTN WE61120 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 8 more
$28849
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE61120 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61120 Specifications
Product Attributes
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 2.559 IN |
| Brake Pilot Diameter | 2.579 IN |
| Wheel Stud Quantity | 5 |
| Flange Shape | Offset Trapezoid |
| Anti Lock Braking System | No |
| Drive Type | Non-driven |
| Flange Offset | 3.087 IN |
| Bolt Circle Diameter | 4.331 IN |
| Knuckle Bolt Circle Diameter (Inches) | 3.307 |
| Knuckle Bolt Circle Diameter (Millimeters) | 84.0 |
| Knuckle Bolt Hole Size | M10X1.5 |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8482105016 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810611205 |
NTN WE61120 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | RW20102, 512287 |
| Autopart International | 1411248062 |
| CENTRIC | 405.62007 |
| Centric Parts | 405.62007, 405.62007E |
| DuraGo | 29512287 |
| Fenco | WH512287 |
| GMB | 7990140 |
| GSP | 103287 |
| General Motors | 12413118, 12413223, 15889807, 22723647, 7467604, 12413117, 12413206, 12413224, 22706424, 7467596 |
| MOOG Chassis Products | 512315, 512287 |
| MPA | WH512287 |
| Mevotech | H512287 |
| Parts Master | PM512287 |
| Parts Plus | P512287 |
| Raybestos Brakes | 712287 |
| SKF | BR930369 |
| Schaeffler | 102265, RW8287, RW8315 |
| Timken | HA590081, HA590089 |
| WJB | WA512287 |
NTN WE61120 Fits Vehicles
- Chevrolet HHR (2006-2008)
- Pontiac G6 (2005-2007)
- Chevrolet Malibu (2004-2007)
