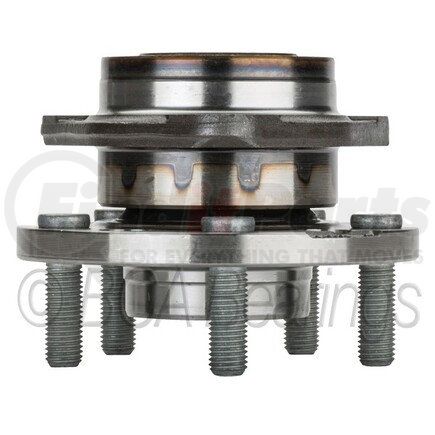

(888) 312-8812 Login SignupNTN WE60701 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 8 more
$11949
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE60701 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE60701 Specifications
Product Attributes
| Spline Quantity | 33 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 2.244 IN |
| Brake Pilot Diameter | 2.296 IN |
| Wheel Stud Quantity | 5 |
| Flange Shape | Modified Triangle |
| Anti Lock Braking System | No |
| Drive Type | Driven |
| Flange Offset | 1.749 IN |
| Bolt Circle Diameter | 3.937 IN |
| Knuckle Bolt Circle Diameter (Inches) | 3.858 |
| Knuckle Bolt Circle Diameter (Millimeters) | 98.0 |
| Knuckle Bolt Hole Size | 12.7 |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8482105016 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810607017 |
NTN WE60701 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2025K, 513017K |
| Autopart International | 141145065, 1421289680 |
| CENTRIC | 403.62004, 403.62004E |
| Centric Parts | 403.62004, 403.62004E |
| DT Components | 513017K |
| Drive Tech America | NT513017K |
| DuraGo | 29513017 |
| FAG CA - Archived | 7136451200 |
| Fenco | WH513017K |
| GMB | 7300215 |
| GSP | 104017 |
| General Motors | 7470014 |
| MOOG Chassis Products | 513017K |
| MPA | WH513017K |
| Mevotech | H513017K |
| Parts Master | PM513017K |
| Parts Plus | P513017K |
| Power Train | PT513017K |
| Precision Bearing | 513017K |
| Raybestos Brakes | 713017K |
| SKF | BR930028K |
| Schaeffler | WH64512K |
| Timken | 513017K |
| WJB | WA513017K |
NTN WE60701 Fits Vehicles
- Pontiac Sunfire (1995-2005)
- Pontiac Sunbird (1986-1994)
- Pontiac J2000 Sunbird (1984-1985)
- Pontiac Grand Am (1985-1998)
- Oldsmobile Firenza (1982-1988)
- Oldsmobile Cutlass Calais (1988-1991)
- Oldsmobile Calais (1985-1987)
- Oldsmobile Achieva (1992-1998)
- Chevrolet Corsica (1987-1996)
- Chevrolet Cavalier (1984-2005)
- Chevrolet Beretta (1987-1996)
- Cadillac Cimarron (1984-1988)
- Buick Somerset Regal (1985)
- Buick Somerset (1986-1987)
- Buick Skylark (1986-1998)
- Buick Skyhawk (1984-1989)
NTN WE60701 Customer Reviews
No reviews yet
Be the first to review this product!
NTN WE60701 Questions & Answers
No questions yet
Be the first to ask a question about this product!
