RAYBESTOS 980615R Part Description
Manufacturer
Product Description

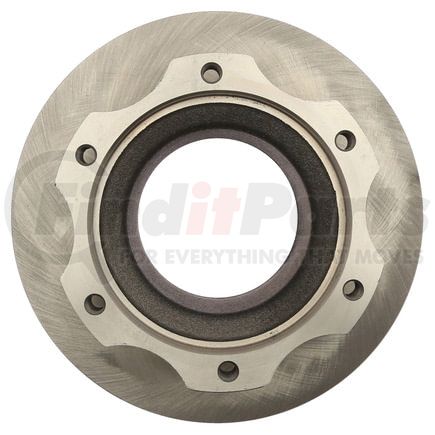

Raybestos R-Line Brake Rotor
Application Summary
2010-2005 Hino 145 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980615R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.594 IN |
| Center Hole Diameter | 116.7 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.035 IN |
| Discard Thickness | 26.3 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.22 IN |
| Inside Diameter | 158 MM |
| Mounting Bolt Hole Circle Diameter | 7.5 IN |
| Mounting Bolt Hole Circle Diameter | 190.5 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 11.961 IN |
| Outside Diameter | 303.8 MM |
| Overall Height | 4.669 IN |
| Overall Height | 118.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372601 |
RAYBESTOS 980615R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH528131P |
| BrakeBest | 980615, 980615RGS, 980616RGS, 980617RGS |
| CENTRIC | 121.75002 |
| Centric Parts | 120.75002, 121.75002 |
| Dura Corp | BR31500 |
| DuraGo | BR31500 |
| Hino | 23123626002 |
| Promax | 14-31500 |
| Qualis | 44713 |
| Wagner Brake | BD180194 |
| Winhere | 6672303 |
RAYBESTOS 980615R Fits Vehicles
- Hino 145 (2005-2010)
