(888) 312-8812 Login SignupDORMAN TO63261 Steering Tie Rod End
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DORMAN TO63261 Part Description
Manufacturer
Product Description

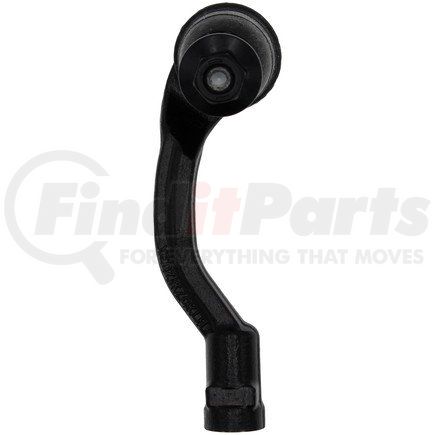

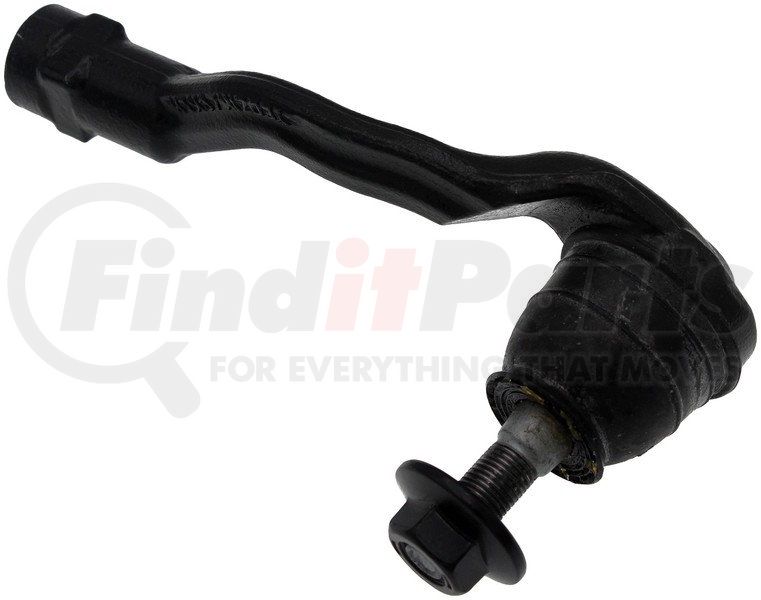

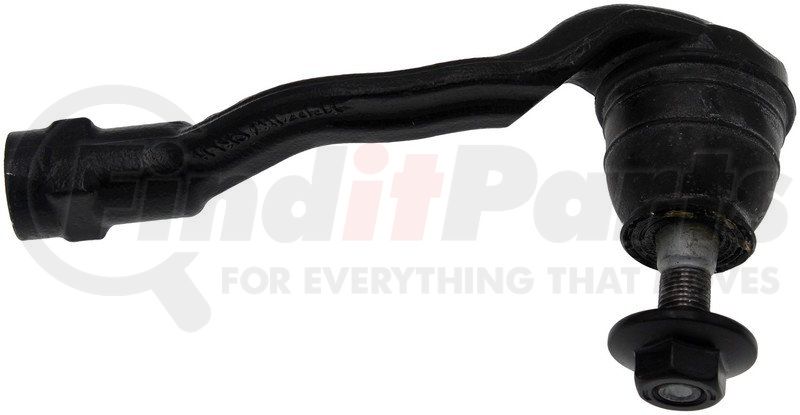

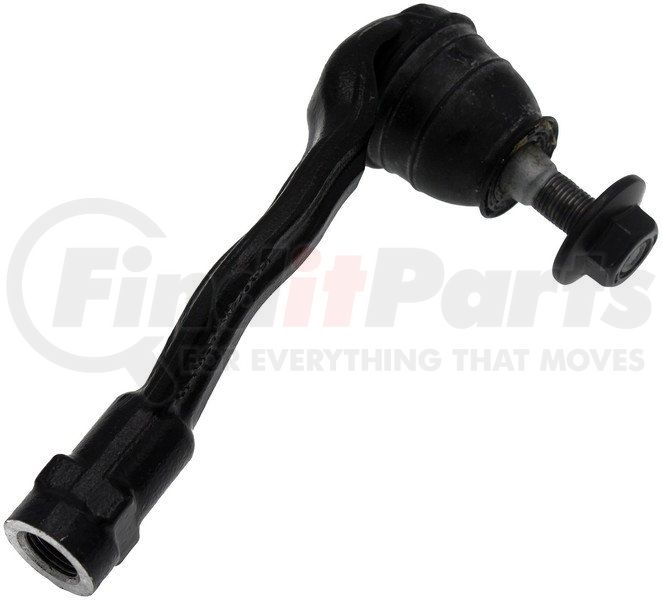

Steering Tie Rod End
Application Summary
Genesis G70 2022-19, Kia Stinger 2022-18
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
DORMAN TO63261 Specifications
Product Attributes
| Length | 161 MM |
| Color | Noir |
| End 1 Gender | Macho |
| End 2 Gender | Hembra |
| Finish | Revestidos |
| Pre-Greased | Oui |
| Grease Fitting Included | No |
| Dust Boot Included | Si |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 16 MM |
| Housing Material | Steel |
| Adjustable | No |
| Cone Outside Diameter | 13.2 MM |
| Bearing Material | Polymer |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Regular |
| Stud Type | Taper |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.25 MM |
| Dust Boot Material | Polychloroprene |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 12 MM |
| Package Contents | 1 Nut |
| Contenidos del paquete | 1 tuerca |
| Grade Type | Standard |
| Diámetro la rosca de extremo 1 | 12 mm MM |
| Diámetro la rosca de extremo 2 | 16mm MM |
| End 1 Thread Diameter | 12 mm MM |
| End 1 Thread Pitch | 1.25 mm mm |
| End 2 Thread Diameter | 16 mm MM |
| End 2 Thread Pitch | 1.5 mm MM |
| Espacio de la rosca del extremo 1 | 1.25 mm MM |
| Espacio de la rosca del extremo 2 | 1,5mm MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00669810768328 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TO63261 Cross References
| Brand | Part Number |
|---|---|
| Kia | 56820J5000, 56820J5300 |
| MEVOTECH | MS90682 |
| MOOG Chassis Products | ES801353 |
| Mevotech Supreme | NI, MS90682 |
| SUSPENSIA | X23TE1085 |
DORMAN TO63261 Fits Vehicles
- Kia Stinger (2018-2023)
- Genesis G70 (2019-2025)
