DORMAN TO50152 Part Description
Manufacturer
Product Description

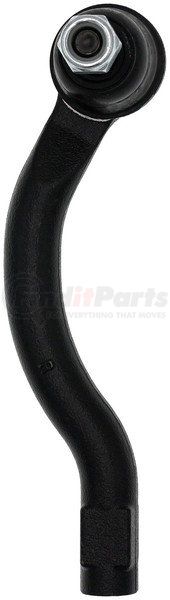

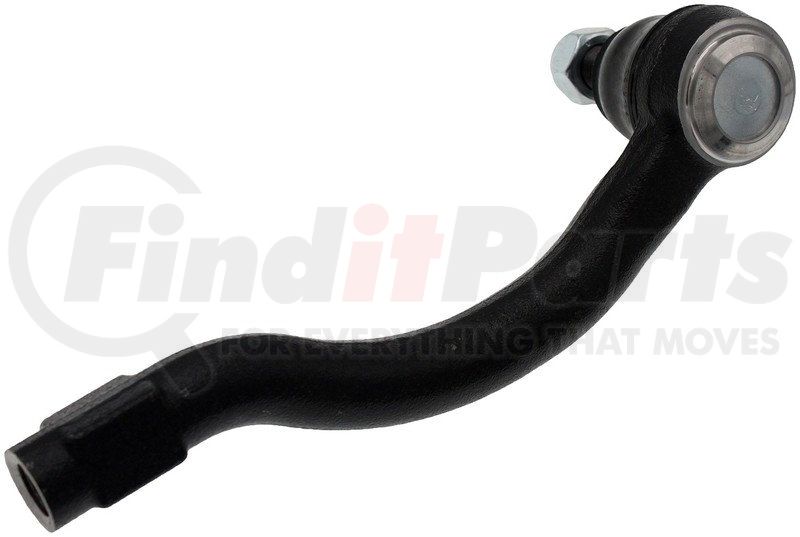

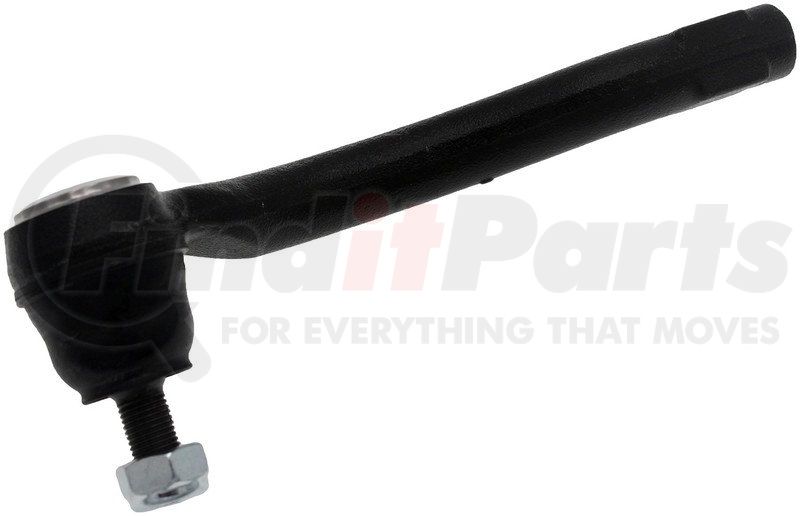

Steering Tie Rod End
Application Summary
Acura TLX 2020-15
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
DORMAN TO50152 Specifications
Product Attributes
| Color | Noir |
| End 1 Gender | Hembra |
| End 2 Gender | Macho |
| Finish | Revestimiento en polvo |
| Pre-Greased | Oui |
| Grease Fitting Included | Oui |
| Dust Boot Included | Oui |
| Type | Doblado |
| Mounting Hardware Included | Oui |
| End 2 Thread Diameter | 12 MM |
| Housing Material | Acero |
| Adjustable | Oui |
| Cone Outside Diameter | 13.6 MM |
| Bearing Material | Metal |
| End 1 Thread Direction | Rotar en el sentido contrario a las agujas del reloj (izquierda) |
| End 2 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Grade | Reemplazo estándar |
| Stud Type | Roscado |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.5 MM |
| Dust Boot Material | Policloropreno |
| Tie Rod Material | Acero |
| End 1 Thread Diameter | 14 MM |
| Package Contents | 1 Zerk Fitting |
| Length | 189 MM |
| Contenidos del paquete | 1 tuerca |
| Head Drive Type | Suave |
| Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Width | 32.22 MM |
| Height | 65.93 MM |
| Tube Diameter | 18.13 MM |
| Stud Length | 25 MM |
| Boot Color | Noir |
| Reinforced | Oui |
| Shank Length | 0 |
| Washer(s) Included | Non |
| Castle Nut Included | Oui |
| Cotter Pin Included | Oui |
| Grade Type | Reemplazo estándar |
| Locking Nut Included | Oui |
| Greaseable | Oui |
| Adjusting Sleeve Included | Non |
| Steering Type | Manual |
| Length - Stud Center to End | 0 |
| End 2 Threads Per Inch | 1.5 MM |
| End 1 Threads Per Inch | 0 |
| Ball Joint Included | Oui |
| Bolt Length | 0 |
| Bolt Thread Diameter | 0 |
| Bolts Included | Non |
| Cantidad de birlos de montaje central | 1 ensamble de manguera del calentador |
| Center Mount Hole Quantity | 0 |
| Center Mount Stud Quantity | 1 |
| End 1 Attachment Type | Roscado |
| End 2 Attachment Type | Roscado |
| End 2 Type | Cono |
| Material | Acero |
| Outside Diameter | 32,22mm MM |
| Thread Pitch | 1.25 mm mm |
| Tie Rod End Thread Diameter | 14 mm mm |
| Weight | 1.5 Lbs LB |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8302300000 |
| UPC | 00669810768243 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TO50152 Cross References
| Brand | Part Number |
|---|---|
| Honda | 53540TZ7A01, 53540TZ7A02 |
| MEVOTECH | MS60635 |
| MOOG | NI |
| Mevotech Supreme | MS60635 |
| NAPA Chassis Parts | 4696414 |
| SUSPENSIA | X02TE0729 |
DORMAN TO50152 Fits Vehicles
- Acura TLX (2015-2020)
