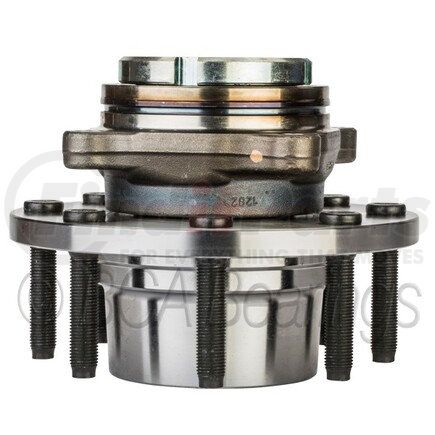

(888) 312-8812 Login SignupNTN WE61564 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 9 more
$45849
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 18
NTN WE61564 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61564 Specifications
Product Attributes
| Spline Quantity | 55 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 124.9 MM |
| Brake Pilot Diameter | 129.0 MM |
| Wheel Stud Quantity | 8 |
| Flange Shape | Square |
| Anti Lock Braking System | Yes |
| Drive Type | Driven |
| Flange Offset | 54.4 MM |
| Flange Diameter | 8.000 IN |
| Bolt Circle Diameter | 170.0 MM |
| Anti Lock Braking System Type | Encoder with sensor |
| Bearing Generation | 3 |
| Knuckle Bolt Circle Diameter (Inches) | 5.512 |
| Knuckle Bolt Circle Diameter (Millimeters) | 140.0 |
| Knuckle Bolt Hole Size | M14X1.5 |
| Wheel Stud Size | M14X1.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810615647 |
NTN WE61564 Cross References
| Brand | Part Number |
|---|---|
| Alltech Automotive | 515056 |
| Autopart International | 1411248391 |
| CENTRIC | 402.65002 |
| CRS Automotive | NT515056 |
| Centric Parts | 402.65002, 402.65002E |
| DT Components | 515056 |
| Dorman | 4110426 |
| Drive Tech America | NT515056 |
| DuraGo | 29515056 |
| Fenco | WH515056 |
| Ford | 3C342B513BA, 3C342B513BC, 3C3Z1103BA, 3C3Z1104BA, 3C342B513BB, 3C342B513BD, 3C3Z1104A |
| GMB | 7240166, 7250166 |
| GSP | 116020, 116056 |
| MOOG Chassis Products | 515056 |
| MPA | WH515056 |
| Mevotech | H515056 |
| Motorcraft | HUB111, HUB223 |
| Parts Master | PM515056 |
| Parts Plus | P515056 |
| Power Train | PT515056 |
| Precision Bearing | 515056 |
| Raybestos Brakes | 715056 |
| SKF | BR930438 |
| Schaeffler | FW756, 102188 |
| Timken | SP450105, SP450205, SP580205 |
| WJB | WA515056 |
NTN WE61564 Fits Vehicles
- Ford F-350 Super Duty (1999-2004)
- Ford F-250 Super Duty (1999-2004)
- Ford Excursion (2003-2005)
