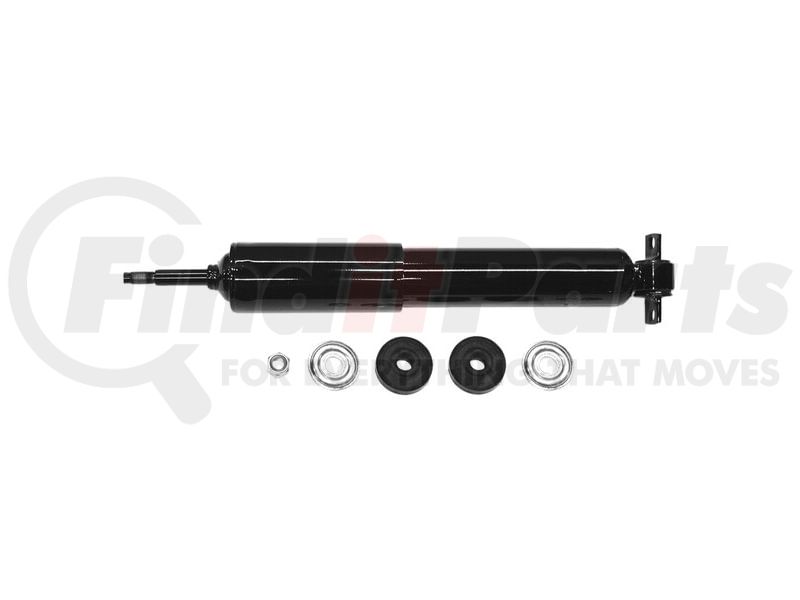

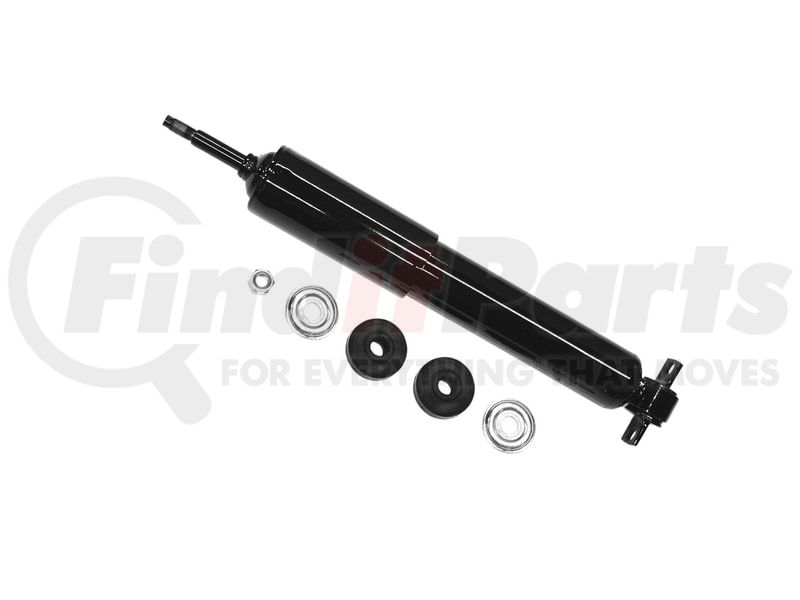

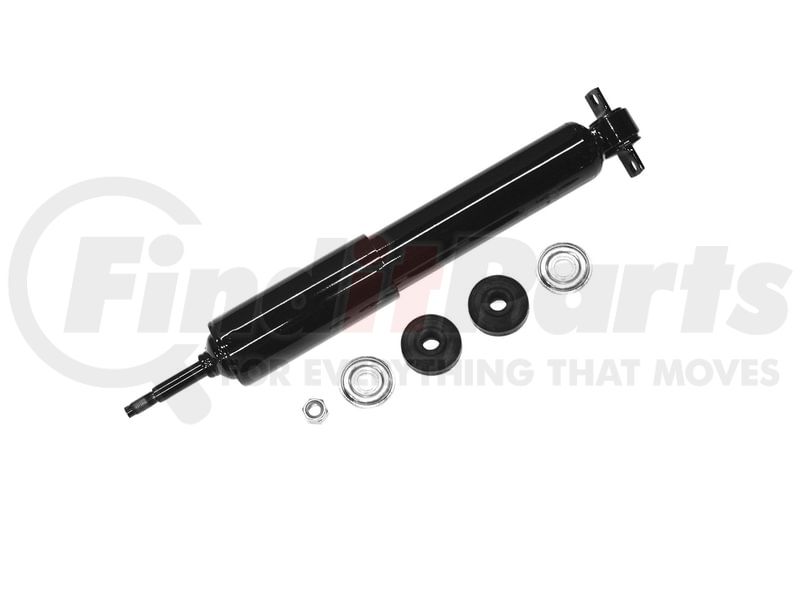

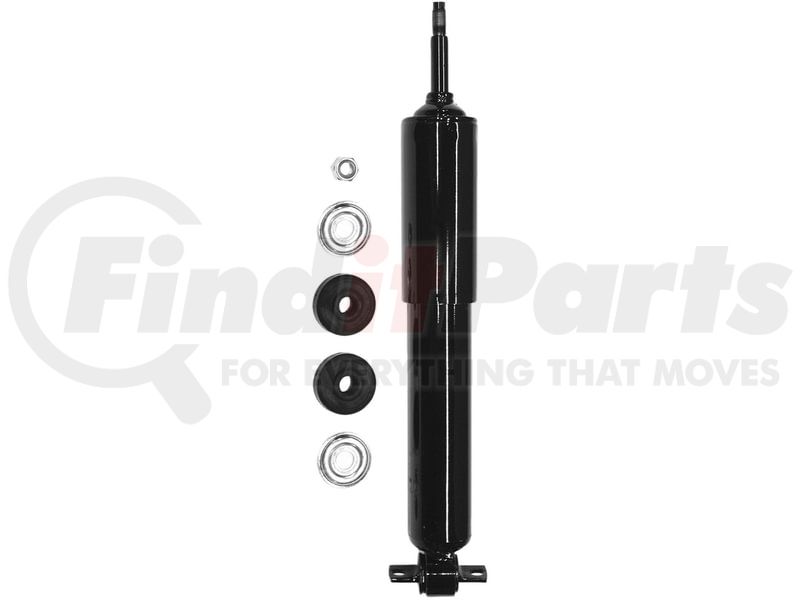

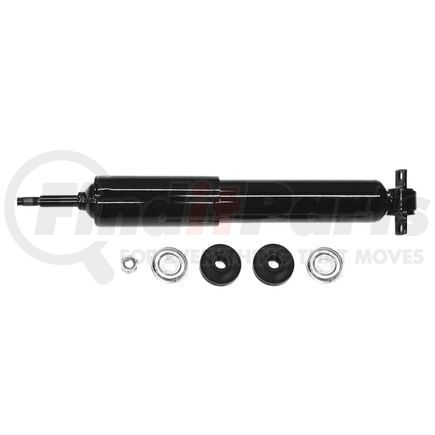

Gabriel 58714 - Commercial Duty Shock Absorber
$4699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GABRIEL part description
Product Description
Commercial Duty Shock Absorber
Features & Benefits
- Specifically designed for severe duty light trucks & vans
- Packed with an oversized 1 5/8″ (41 mm) piston bore for increased tensile strength, durability and performance
- 360° arc welded end mounts for the most robust structural strength
- 10-stage all-coil spring valving for comfort, control and enhanced durability
- Piston seal design reduces force-velocity variation and self-compensates for wear
- Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface
- For heavy/frequent towing & hauling and Last Mile Delivery fleets
Product Attributes
| Package Contents | 1 Shock, 2 Bushings, 2 Washer, 1 Nut |
| Weight (lbs) | 4.50 |
| Upper Mount Code | S62 |
| Lower Mount Code | BP7 |
| Stroke (in) | 5.28 |
| Core Color | Y |
| Boot Included | No |
| Collapsed Length (in) | 9.98 |
| Installation Hardware Included | Yes |
| Extended Length (in) | 15.26 |
| Bore | n/a |
| Dust Tube | n/a |
| Recoil Cutoff | n/a |
| Accessory Kit # | n/a |
| Mounting Codes 2024.pdf | https://gabriel.com/sites/default/files/Mounting_Codes_2024.pdf |
| Rebound (lb) | n/a |
| Compression (lb) | n/a |
| Dust Tube Material | Steel |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| MSDS Sheet Number | ARP002 / RC001 |
| Country of Origin (Primary) | MX |
| UPC | 00043645674823 |
| VMRS Code | 016008031 |
| UNSPSC | 25172011 |
Part Interchanges
GABRIEL 58714 Cross Reference
We have 2 alternatives for the 58714 by GABRIEL:
Fits Vehicles
- Ford Lobo (1997-2003)
- Ford F-150 Heritage (2004)
- Lincoln Navigator (1998-2002)
- Ford F-250 (1996-1999)
- Ford F-150 (1997-2003)
- Ford Expedition (1997-2002)
