(888) 312-8812 Login SignupGABRIEL 49162 Air Adjustable Shock Absorbers
Tap to view 6 more
$159.99
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GABRIEL 49162 Part Description
Manufacturer
Product Description
Air Adjustable Shock Absorbers
Features & Benefits
- America's best-known air-adjustable shock absorbers
- Fully-adjustable air shocks help you maintain proper ride height
- Can help improve handling and reduce risk of bottoming out Up to 1,100 pounds of leveling capacity per pair (not to exceed GVWR)
- Custom-sized for a direct and simple installation and fit
- Easy to inflate at any service station, at home with an air compressor or with continued use of an existing onboard air management system
- Air pressure of 25 min – 200 max psi
- Sold in pairs and includes Gabriel Air Hose Kit when applicable – Air Hose Kit can also be purchased separately
- Chrome-plated piston rod construction and deluxe wiper seals provide optimum sealing
- Ideal for temporarily towing boats and trailers or heavy loads
GABRIEL 49162 Specifications
Product Attributes
| Accessory Kit # | 141058,141099 |
| Collapsed Length (in) | 12.79 |
| Extended Length (in) | 20.02 |
| Rebound (lb) | n/a |
| Weight (lbs) | 10.50 |
| Boot Included | No |
| Compression (lb) | n/a |
| Features/Benefits 1 | America’s best-known air-adjustable shock absorber |
| Features/Benefits 3 | Can help improve handling and can reduce the risk of bottoming out |
| Lower Mount Code | ES24 |
| Recoil Cutoff | n/a |
| Bore | n/a |
| Dust Tube | n/a |
| Mounting Codes 2024.pdf | https://gabriel.com/sites/default/files/Mounting_Codes_2025.pdf |
| Stroke (in) | 7.23 |
| Core Color | Y |
| Dust Tube Material | Steel |
| Features/Benefits 2 | Ideal for temporarily towing boats and trailers or heavy loads |
| Features/Benefits 4 | Up to 1,100 lbs per pair of leveling capacity not to exceed vehicle Gross vehicle Weight Rating, product does not increase payload |

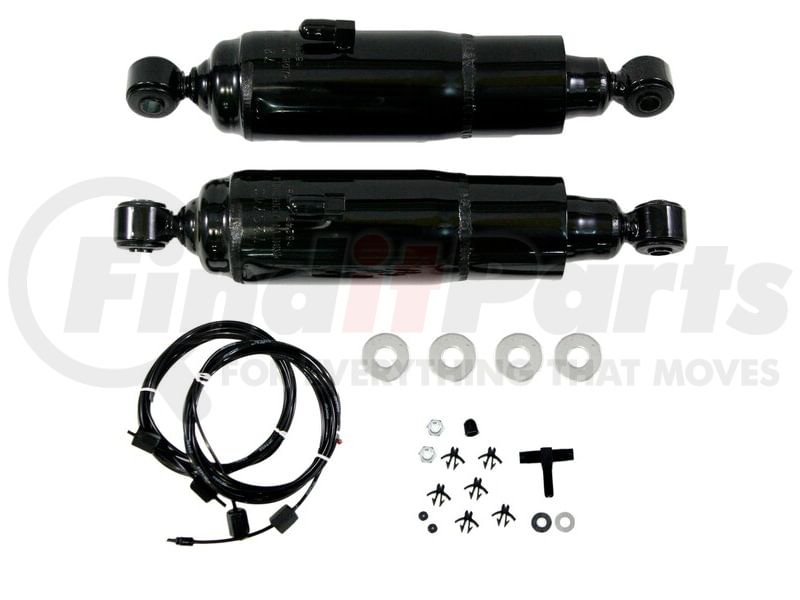

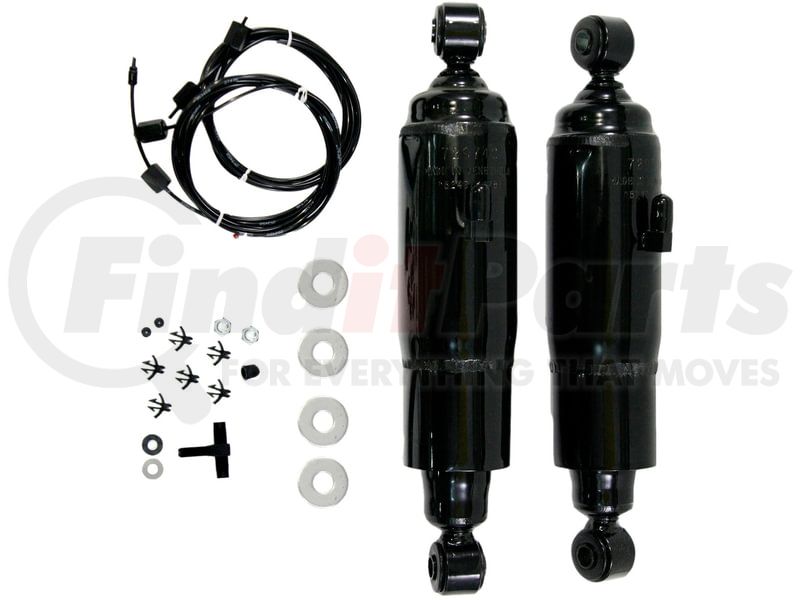

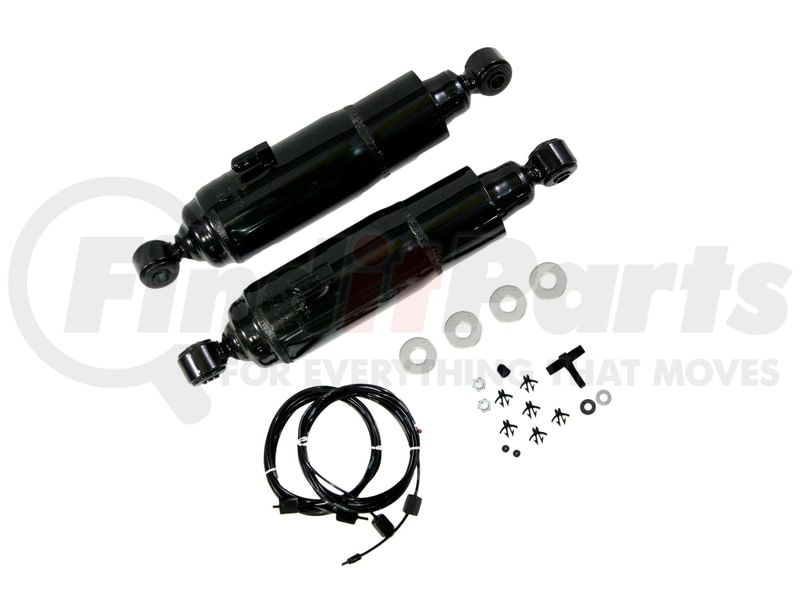

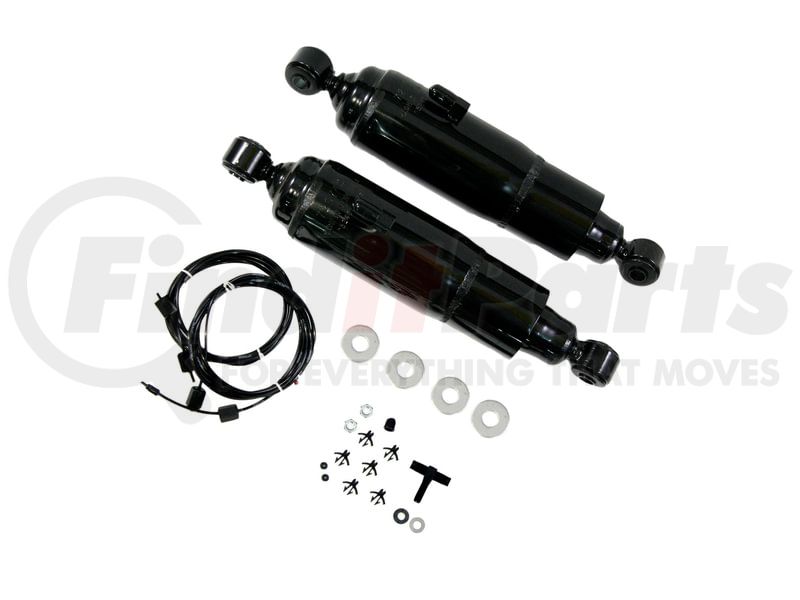

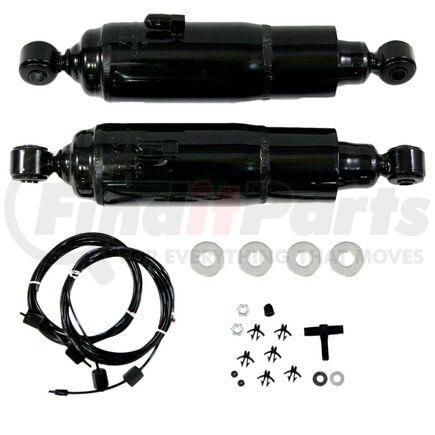

| Package Contents | 2 Shocks, 2 Nuts, 2 Clamps, 2 O-ring Packing, 1 Cap, 1 Valve Core, 6 Clips, 2 Tube assy, 4 Spacers |
| Upper Mount Code | ES24 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| MSDS Sheet Number | ARP002 / RC001 |
| Country of Origin (Primary) | MX |
| UPC | 00043645503369 |
| VMRS Code | 016006001 |
| UNSPSC | 25172011 |
GABRIEL 49162 Cross References
GABRIEL 49162 Fits Vehicles
- Chevrolet C10 Panel (1963-1967)
- GMC P25/P2500 Van (1968-1972)
- GMC P15/P1500 Van (1967)
- GMC PB1000 Series (1963-1965)
- GMC P35/P3500 Van (1968-1972)
- GMC G25/G2500 Van (1967-1974)
- GMC Jimmy (1970-1972)
- GMC G35/G3500 Van (1971-1974)
- GMC C35/C3500 Pickup (1967-1972)
- GMC G15/G1500 Van (1967-1974)
- GMC C25/C2500 Pickup (1967-1972)
- GMC 1000 Series (1963-1965)
- GMC 1500 Series (1963-1965)
- GMC C15/C1500 Pickup (1967-1972)
- Chevrolet P30 Van (1968-1972)
- Chevrolet Suburban (1963-1966)
- Chevrolet P20 Van (1968-1972)
- Chevrolet P10 Series (1963-1966)
- Chevrolet G30 Van (1971-1974)
- Chevrolet G20 Van (1967-1974)
- Chevrolet G10 Van (1967-1974)
- Chevrolet C30 Pickup (1967-1972)
- Chevrolet C20 Pickup (1963-1972)
- Chevrolet C10 Pickup (1963-1972)
- Chevrolet Blazer (1969-1972)
- GMC G35 (1975-1977)
- GMC G25 (1975-1977)
- GMC G15 (1975-1977)
- Chevrolet G30 (1975-1977)
- Chevrolet G20 (1975-1977)
- Chevrolet G10 (1975-1977)
