MGM Brakes 3531953X - DRM CHAMBER COM
- Part Number
- 3531953X
- Manufacturer
- MGM BRAKES
- Description
-
DRM CHAMBER COM
details
$28199
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
COMBINATION
Product Description

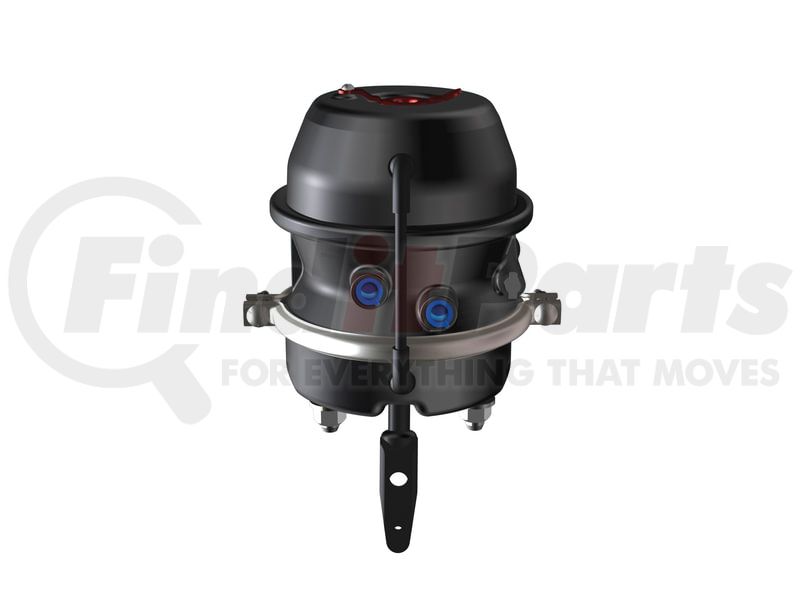

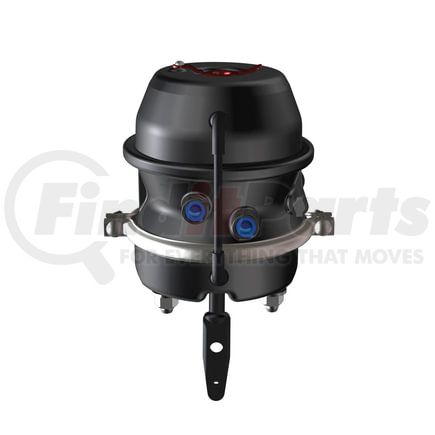

Double Diaphragm Brake Chamber
Features & Benefits
- Tamper Resistant
- Long Life Spring
- Center Hole Diaphragm/Shield
- Epoxy Coated Head, NPC, Lower Push-Rod Assembly, Return Spring, Piston/Center Case
- Heavy-Duty Steel NPC
- Polymer Guides
- Heavy-Duty Diaphragm
- Stroke Alert
- Composite Guide
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Double Diaphragm Brake |
| Diaphragm Diameter | Neoprene IN |
| Mounting Bolt Length | 1.540 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 30 |
| Severe Service | Severe Service |
| Stroke | 2.50 IN |
| Welded Yoke | Welded Yoke |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004000 |
