DELPHI FG2453 Part Description
Manufacturer
Product Description

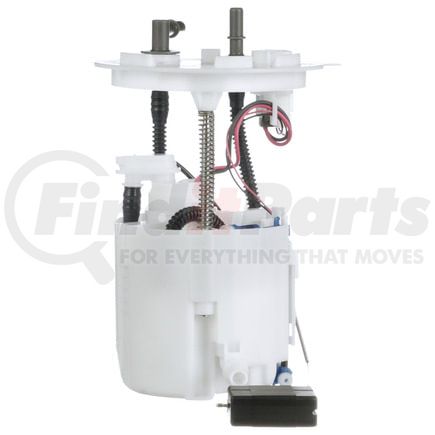

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG2453 Specifications
Product Attributes
| Position(s) | Left |
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Fuel Level Sender Assembly Included | Yes |
| System Pressure | 90 psi |
| Vapor Pressure Sensor | No |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 93 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 180 82 |
| Resistance Ohms Full | 10 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 13 68 |
| Average Flow Rating | 18 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 90 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (HTS) | 9026102080 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| UPC | 00689604343050 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG2453 Cross References
| Brand | Part Number |
|---|---|
| Airtex | E2609M, E2653M |
| AutoZone | DFG2453 |
| Ford | DG9Z 9H307-AB, DG9Z 9H307-J, DG9Z 9H307-V, FP5Z 9H307-B |
| Motorcraft | PFS-1003, PFS1129 |
| SPECTRA PREMIUM | SP2005M |
DELPHI FG2453 Fits Vehicles
- Ford Fusion (2014-2016)
- Lincoln MKZ (2013-2014)
