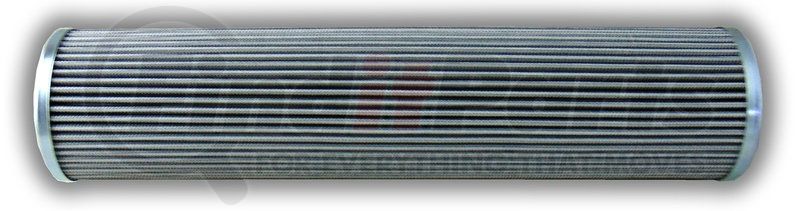

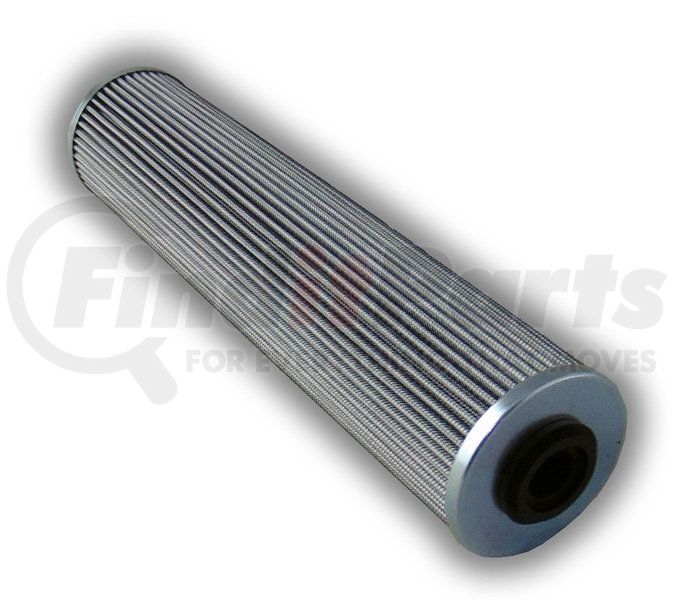

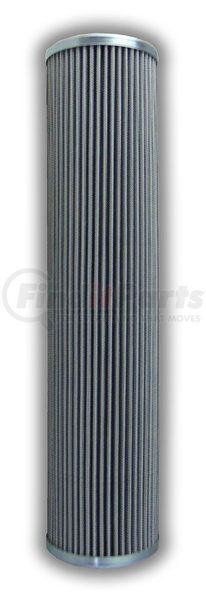

(888) 312-8812 Login SignupMAIN FILTER MF0430464 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
Tap to view 2 more
MSRP: $81.33
$7299
Save $8.34
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 23
MAIN FILTER MF0430464 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM INTERNORMEN p/n 316541
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0430464 replaces OEM 316541 by INTERNORMEN and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 2.756 |
| Inide Diameter Top | 1.614 |
| Outside Diameter Bottom | 2.756 |
| BPVS Setting PSI | 29 |
| Collapse Pressure | 232 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 32.41422 |
| Filter Area sq in | 438 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Micron 1 | 3 |
Features & Benefits
- Interchange/replacement for OEM INTERNORMEN p/n 316541
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0430464 replaces OEM 316541 by INTERNORMEN and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Buy hydraulic filters direct from the manufacturer
- Main Filter MF0430464 replaces OEM 316541 by INTERNORMEN and is compatible in fit, form and function.
MAIN FILTER MF0430464 Specifications
Product Attributes
| Handle | No |
| Bypass | Yes |
| Wrap | No |
| Product Media | Glass |
| Micron Rating | 3 |
| Height (in.) | 11.96 |
| Inside Diameter (Top) | 1.61 in. |
| Outside Diameter (Top) | 2.76 in. |
| Collapse Pressure | 232 |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| BPVS Setting (PSI) | 29 |
| Outside Diameter (Bottom) | 2.76 in. |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Dust Holding Capacity | 32.41 grams |
| Filter Area (sq. in.) | 438 |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Flow Direction | Outside-In |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
MAIN FILTER MF0430464 Cross References
| Brand | Part Number |
|---|---|
| INTERNORMEN | 316541 |
