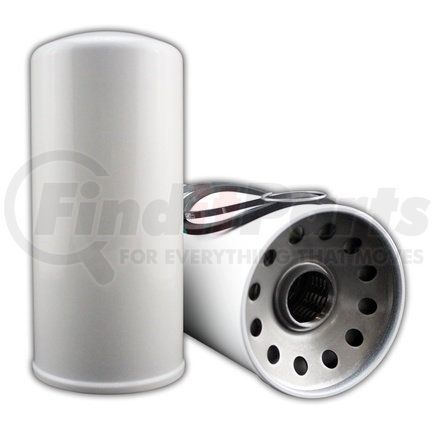

Main Filter MF0406688 - Aftermarket Replacement Spin-On Fuel Filter with 10 Micron Rating, Cellulose, Outside-In Flow
- Part Number
- MF0406688
- Manufacturer
- MAIN FILTER
- Description
-
Aftermarket Replacement Spin-On Fuel Filter with 10 Micron Rating, Cellulose, Outside-In Flow
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
MAIN FILTER part description
Technical Specifications
| Outside Diameter Top | 5.06 |
| Outside Diameter Bottom | 5.06 |
| Thread Size | 1.5 |
| Threads | 16 UNF |
| ADBV | NO |
| Burst Pressure | 261 |
| Collapse Pressure | 72.5 |
| Flow Rate GPM | 40 GPM |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Flow Direction | Outside-In |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/10 |
| Micron 1 | 10 |
Features & Benefits
- Interchange/replacement for OEM WOODGATE p/n WGH6711
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0406688 replaces OEM WGH6711 by WOODGATE and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM WOODGATE p/n WGH6711
- Main Filter MF0406688 replaces OEM WGH6711 by WOODGATE and is compatible in fit, form and function.
- Images may be a general representations of products
- Main Filter MF0406688 replaces OEM WGH6711 by WOODGATE and is compatible in fit, form and function.
- Built using Quality Components with strict quality control.
Features & Benefits
- Interchange/replacement for OEM WOODGATE p/n WGH6711
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0406688 replaces OEM WGH6711 by WOODGATE and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Product Attributes
| Micron Rating | 10 |
| ADBV | No |
| Handle | No |
| Flow Direction | Outside-In |
| Height (in.) | 10.94 |
| Filter Area (sq. in.) | 671 |
| Flow Rater | 40 GPM |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Thread Type | UNF |
| Wrap | No |
| Burst Pressure | 261 |
| Beta Ratio 1 | 2/10 |
| Bypass | No |
| Collapse Pressure | 72.5 |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Outside Diameter (Top) | 5.06 in. |
| Product Media | Cellulose |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Thread Size | 1.5 |
Part Interchanges
MAIN FILTER MF0406688 Cross Reference
We have 1 alternatives for the MF0406688 by MAIN FILTER:
