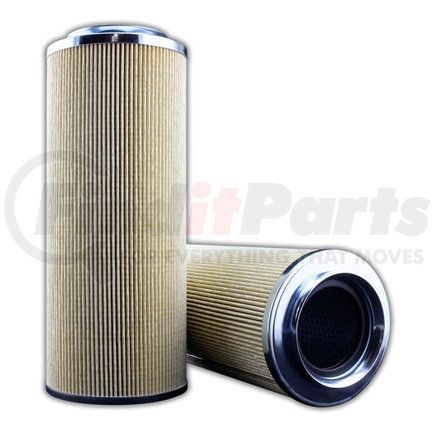

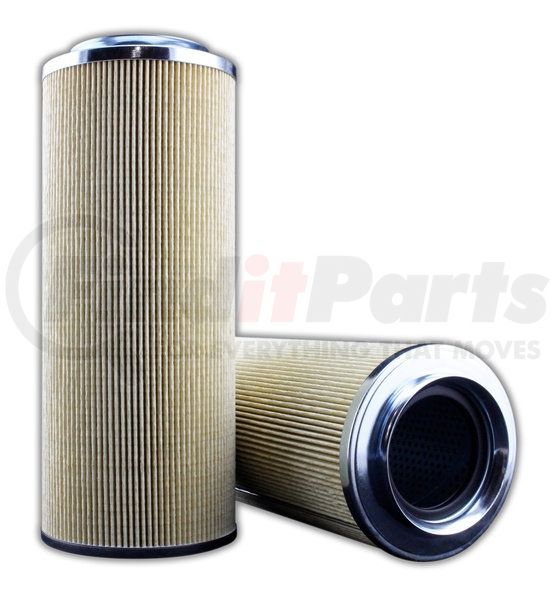

(888) 312-8812 Login SignupMAIN FILTER MF0878924 Aftermarket Replacement Hydraulic Filter, 10 Micron Cellulose, Viton Seal, 5.079 in. OD
MSRP: $120.89
$10799
Save $12.90
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
MAIN FILTER MF0878924 Part Description
Manufacturer
Product Description
Aftermarket Replacement Hydraulic Filter, 10 Micron Cellulose, 5.079 in. OD
Technical Specifications
| Outside Diameter Top | 5.079 |
| Inide Diameter Top | 2.638 |
| Outside Diameter Bottom | 5.079 |
| Inside Diameter Bottom | 2.791 |
| Collapse Pressure | 87 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 51.4538 |
| Filter Area sq in | 1286 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/10 |
| Micron 1 | 10 |
Features & Benefits
- Interchange/replacement for OEM MAHLE p/n 852436MIC10
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0878924 replaces OEM 852436MIC10 by MAHLE and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
MAIN FILTER MF0878924 Specifications
Product Attributes
| Bottom Inside Diameter | 2.791 in. |
| Bottom Outside Diameter | 5.079 in. |
| Capacity | 51.45g |
| Filter Media | Cellulose |
| Flow Direction | Outside In |
| Filter Rating | 10 micron |
| Cracking Pressure | 87 psi |
| Filter Size | 1286 sq. in. |
| Flow Type | Outside In |
| Fluid Type | HL, HM, HV, HH |
| Gasket Material | Viton |
| Seal Material | Viton |
| Seal Type | Viton |
| Minimum Operating Temperature | -13-deg. F |
| Maximum Operating Temperature | 248-deg. F |
| Top Inside Diameter | 2.638 in. |
| Top Outside Diameter | 5.079 in. |
MAIN FILTER MF0878924 Cross References
| Brand | Part Number |
|---|---|
| MAHLE | 852436MIC10 |
