(888) 312-8812 Login SignupMAIN FILTER MF0348197 Aftermarket Replacement Hydraulic Filter, 10 Micron Cellulose, Buna N Seal, 3.661 in. OD
MSRP: $53.45
$4899
Save $4.46
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
MAIN FILTER MF0348197 Part Description
Manufacturer
Product Description

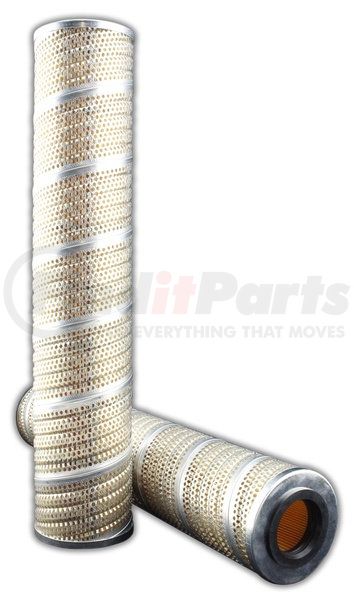

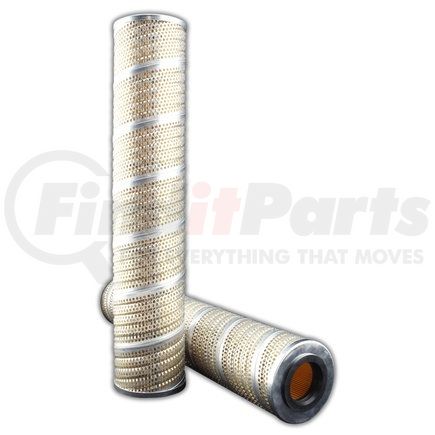

Aftermarket Replacement Hydraulic Filter, 10 Micron Cellulose, 3.661 in. OD
Features & Benefits
- Interchange/replacement for OEM BALDWIN p/n PT8489
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0348197 replaces OEM PT8489 by BALDWIN and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 3.661 |
| Inide Diameter Top | 1.732 |
| Outside Diameter Bottom | 3.661 |
| Inside Diameter Bottom | 1.732 |
| Collapse Pressure | 73 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Filter Area sq in | 1143 |
| Flow Direction | Inside-Out |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/10 |
| Micron 1 | 10 |
MAIN FILTER MF0348197 Specifications
Product Attributes
| Bottom Inside Diameter | 1.732 in. |
| Cracking Pressure | 73 psi |
| Bottom Outside Diameter | 3.661 in. |
| Filter Rating | 10 micron |
| Filter Media | Cellulose |
| Filter Size | 1143 sq. in. |
| Flow Direction | Inside Out |
| Flow Type | Inside Out |
| Gasket Material | Buna N |
| Fluid Type | HL, HM, HV, HH |
| Maximum Operating Temperature | 248-deg. F |
| Seal Type | Buna N |
| Minimum Operating Temperature | -13-deg. F |
| Top Inside Diameter | 1.732 in. |
| Top Outside Diameter | 3.661 in. |
MAIN FILTER MF0348197 Cross References
| Brand | Part Number |
|---|---|
| BALDWIN | PT8489 |
