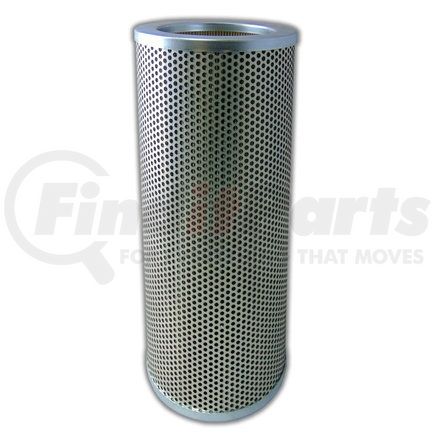

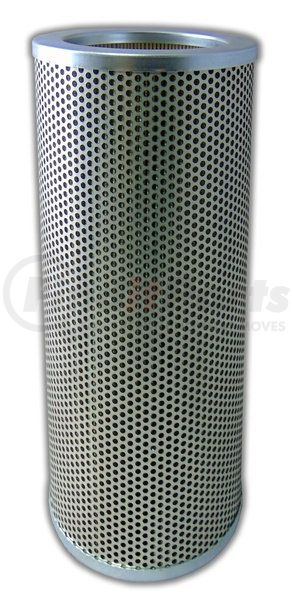

(888) 312-8812 Login SignupMAIN FILTER MF0348114 Aftermarket Replacement Hydraulic Filter, 10 Micron Cellulose, Buna N Seal, 11.41 in. Height
MSRP: $57.72
$5299
Save $4.73
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
MAIN FILTER MF0348114 Part Description
Manufacturer
Product Description
Aftermarket Replacement Hydraulic Filter, 10 Micron Cellulose, 11.41 in. Height
Features & Benefits
- Interchange/replacement for OEM BALDWIN p/n PT772
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0348114 replaces OEM PT772 by BALDWIN and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 4.961 |
| Inide Diameter Top | 3.622 |
| Outside Diameter Bottom | 4.961 |
| Inside Diameter Bottom | 0.409 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Flow Direction | Inside-Out |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/10 |
| Micron 1 | 10 |
MAIN FILTER MF0348114 Specifications
Product Attributes
| Bottom Inside Diameter | 0.409 in. |
| Bottom Outside Diameter | 4.961 in. |
| Collapse Pressure | 145 psi |
| Cracking Pressure | 145 psi |
| Filter Media | Cellulose |
| Flow Type | Inside Out |
| Flow Direction | Inside Out |
| Fluid Type | HL, HM, HV, HH |
| Filter Rating | 10 micron |
| Gasket Material | Buna N |
| Height | 11.41 in. |
| Maximum Operating Temperature | 248-deg. F |
| Seal Type | Buna N |
| Minimum Operating Temperature | -13-deg. F |
| Top Inside Diameter | 3.622 in. |
| Top Outside Diameter | 4.961 in. |
MAIN FILTER MF0348114 Cross References
| Brand | Part Number |
|---|---|
| BALDWIN | PT772 |
