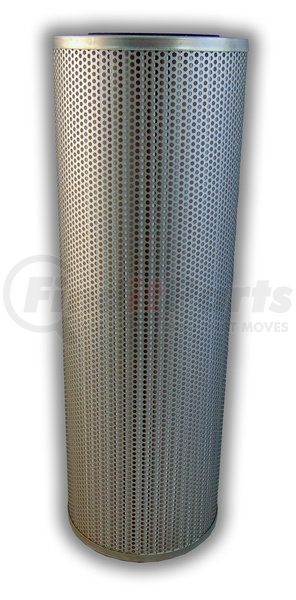

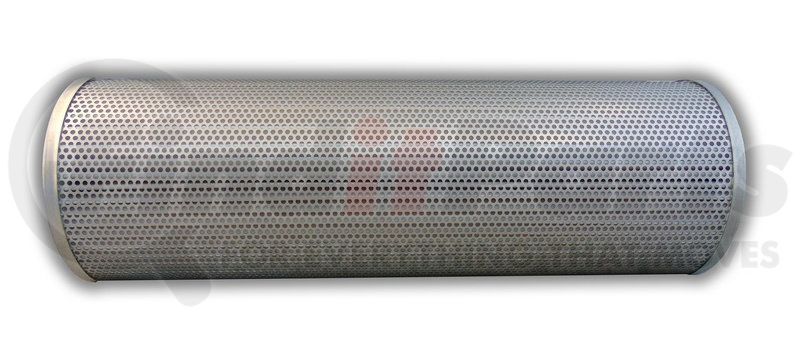

(888) 312-8812 Login SignupMAIN FILTER MF0849066 Aftermarket Replacement Hydraulic Filter, 20 Micron, Glass/Water Removal, Outside-In Flow
Tap to view 2 more
MSRP: $161.90
$14249
Save $19.41
Limited availability at this price!
In Stock
Get it by Monday, Feb 23
MAIN FILTER MF0849066 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM HY-PRO p/n HP102L1825AB
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0849066 replaces OEM HP102L1825AB by HY-PRO and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 6.083 |
| Inide Diameter Top | 2.618 |
| Outside Diameter Bottom | 6.083 |
| Inside Diameter Bottom | 2.618 |
| Collapse Pressure | 102 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 153.4682 |
| Filter Area sq in | 1709 |
| Flow Direction | Outside-In |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/20.7 |
| Beta Ratio 2 | 1000/26.6 |
| Micron 1 | 25 |
| handle | No |
| wrap | No |
Features & Benefits
- Interchange/replacement for OEM HY-PRO p/n HP102L1825AB
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0849066 replaces OEM HP102L1825AB by HY-PRO and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Main Filter MF0849066 replaces OEM HP102L1825AB by HY-PRO and is compatible in fit, form and function.
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
MAIN FILTER MF0849066 Specifications
Product Attributes
| Height (in.) | 17.95 |
| Bypass | No |
| Product Media | Glass/Water Removal |
| Handle | No |
| Micron Rating | 20 |
| Wrap | No |
| Gasket Material | Buna |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Outside Diameter (Top) | 5.98 in. |
| Flow Direction | Outside-In |
| Filter Area (sq. in.) | 1709 |
| Inside Diameter (Top) | 2.62 in. |
| Outside Diameter (Bottom) | 5.98 in. |
| Dust Holding Capacity | 153.47 grams |
| Beta Ratio 2 | 1000/26.6 |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Collapse Pressure | 102 |
| Inside Diameter (Bottom) | 2.62 in. |
| Beta Ratio 1 | 200/20.7 |
| Fluid Type | HH / HL / HM / HV |
MAIN FILTER MF0849066 Cross References
| Brand | Part Number |
|---|---|
| HY-PRO | HP102L1825AB |
