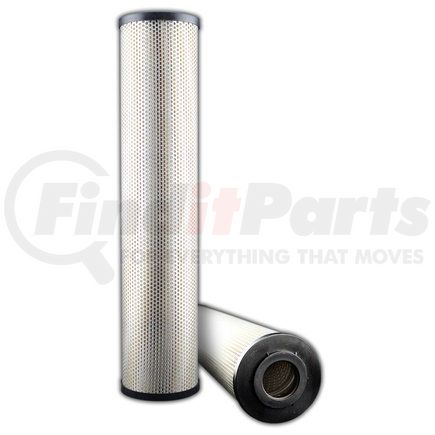

(888) 312-8812 Login SignupMAIN FILTER MF0316518 Aftermarket Replacement Hydraulic Filter, 10 Micron Cellulose, Viton Seal, 3.898 in. OD
MSRP: $37.59
$3599
Save $1.60
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
MAIN FILTER MF0316518 Part Description
Manufacturer
Product Description
Aftermarket Replacement Hydraulic Filter, 10 Micron Cellulose, 3.898 in. OD
Features & Benefits
- Interchange/replacement for OEM HASTINGS p/n HF924
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0316518 replaces OEM HF924 by HASTINGS and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 3.898 |
| Inide Diameter Top | 1.654 |
| Outside Diameter Bottom | 3.898 |
| Inside Diameter Bottom | 1.654 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 68.7456 |
| Filter Area sq in | 1719 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/10 |
| Micron 1 | 10 |
MAIN FILTER MF0316518 Specifications
Product Attributes
| Height (in.) | 18.5 |
| Handle | No |
| Gasket Material | Viton |
| Micron Rating | 10 |
| Outside Diameter (Bottom) | 3.9 in. |
| Flow Direction | Outside In |
| Inside Diameter (Top) | 1.65 in. |
| Inside Diameter (Bottom) | 1.65 in. |
| Outside Diameter (Top) | 3.9 in. |
| Collapse Pressure | 145 |
| Maximum Operating Temperature | 248-deg. F |
| Product Media | Cellulose |
| Wrap | Yes |
| Dust Holding Capacity | 68.75 grams |
| Fluid Type | HL, HM, HV, HH |
| Minimum Operating Temperature | -13-deg. F |
| Beta Ratio 1 | 2/10 |
| Filter Area (sq. in.) | 1719 |
| Bypass | No |
| Bottom Inside Diameter | 1.654 in. |
| Capacity | 68.75g |
| Bottom Outside Diameter | 3.898 in. |
| Filter Media | Cellulose |
| Cracking Pressure | 145 psi |
| Filter Rating | 10 micron |
| Flow Type | Outside In |
| Filter Size | 1719 sq. in. |
| Seal Material | Viton |
| Top Inside Diameter | 1.654 in. |
| Seal Type | Viton |
| Top Outside Diameter | 3.898 in. |
MAIN FILTER MF0316518 Cross References
| Brand | Part Number |
|---|---|
| HASTINGS | HF924 |
