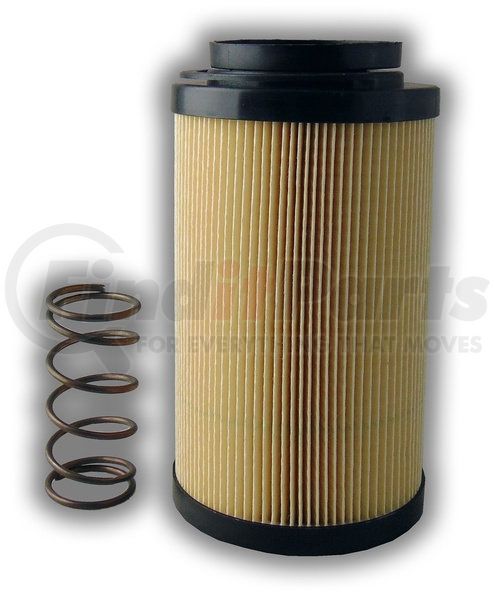

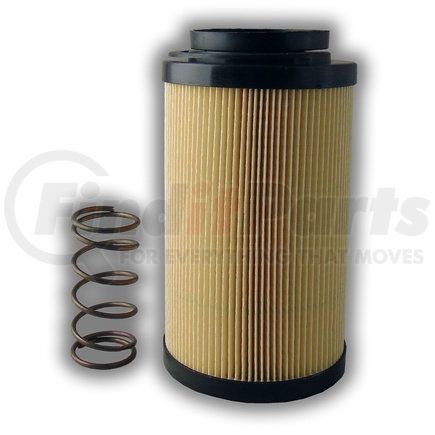

Name: Main Filter MF0309042 Aftermarket Replacement Hydraulic Filter with 25 Micron Rating, Cellulose, Outside-In Flow
SKU: mf0309042
Price: 36.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.898
Inide Diameter Top	1.595
Outside Diameter Bottom	3.898
BPVS Setting PSI	25
Collapse Pressure	44
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	18.4512
Filter Area sq in	461
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	2/25
Micron 1	25

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF7905
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0309042 replaces OEM HF7905 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
All of our elements are manufactured following ISO specifications.
Built using Quality Components with strict quality control.
Images may be a general representations of products
Main Filter MF0309042 replaces OEM HF7905 by FLEETGUARD and is compatible in fit, form and function.
Images may be a general representations of products
Built using Quality Components with strict quality control.

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF7905
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0309042 replaces OEM HF7905 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Handle	No
Height (in.)	7.09
Micron Rating	25
Bypass	Yes
Wrap	No
Product Media	Cellulose
Outside Diameter (Top)	3.9 in.
Maximum Operating Temperature	248 Deg Fahrenheit
Minimum Operating Temperature	-13 Deg Fahrenheit
Outside Diameter (Bottom)	3.9 in.
BPVS Setting (PSI)	24.7
Inside Diameter (Top)	1.59 in.
Collapse Pressure	44
Gasket Material	Viton
Filter Area (sq. in.)	461
Flow Direction	Outside-In
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	2/25
Dust Holding Capacity	18.45 grams

Part Interchanges

Fleetguard HF7905

MAIN FILTER MF0309042 Cross Reference

We have 1 alternatives for the MF0309042 by MAIN FILTER:

FLEETGUARD HF7905
