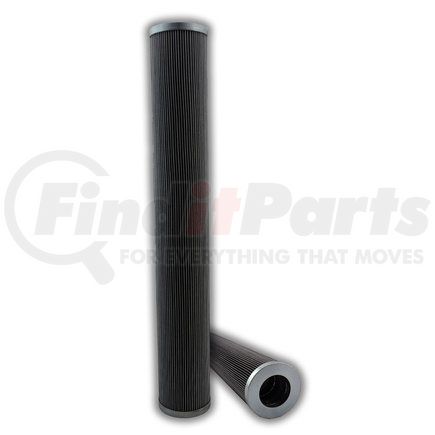

Name: Main Filter MF0308844 Aftermarket Replacement Hydraulic Filter with 20 Micron Rating, Glass, Outside-In Flow
SKU: mf0308844
Price: 385.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.74
Inide Diameter Top	2.193
Outside Diameter Bottom	3.74
Inside Diameter Bottom	2.193
Collapse Pressure	3045
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	236.957056
Filter Area sq in	2639
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/20.7
Beta Ratio 2	1000/26.6
Micron 1	25

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF7515
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0308844 replaces OEM HF7515 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Compatible with OEM filter in fit, form and function
Main Filter MF0308844 replaces OEM HF7515 by FLEETGUARD and is compatible in fit, form and function.
Images may be a general representations of products

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF7515
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0308844 replaces OEM HF7515 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Height (in.)	25.78
Outside Diameter (Top)	3.74 in.
Inside Diameter (Top)	2.19 in.
Product Media	Glass
Outside Diameter (Bottom)	3.74 in.
Inside Diameter (Bottom)	2.19 in.
Maximum Operating Temperature	248 Deg Fahrenheit
Gasket Material	Viton
Handle	No
Micron Rating	20
Filter Area (sq. in.)	2639
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/20.7
Dust Holding Capacity	236.96 grams
Flow Direction	Outside-In
Minimum Operating Temperature	-13 Deg Fahrenheit
Beta Ratio 2	1000/26.6
Collapse Pressure	3045
Bypass	No
Wrap	No

Part Interchanges

Fleetguard HF7515

MAIN FILTER MF0308844 Cross Reference

We have 1 alternatives for the MF0308844 by MAIN FILTER:

FLEETGUARD HF7515
