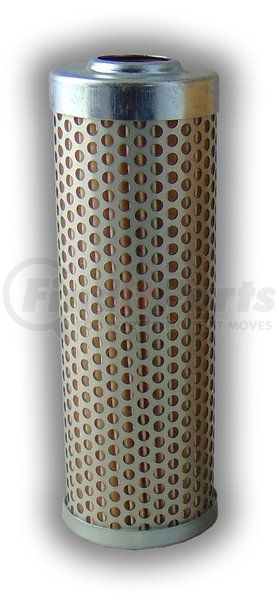

(888) 312-8812 Login SignupMAIN FILTER MF0308774 Aftermarket Replacement Hydraulic Filter, 10 Micron Cellulose, Viton Seal, 5.24 in. Height
$29.57
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MAIN FILTER MF0308774 Part Description
Manufacturer
Product Description
Aftermarket Replacement Hydraulic Filter, 10 Micron Cellulose, 5.24 in. Height
Features & Benefits
- Interchange/replacement for OEM FLEETGUARD p/n HF7348
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0308774 replaces OEM HF7348 by FLEETGUARD and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 1.77 |
| Inide Diameter Top | 0.77 |
| Outside Diameter Bottom | 1.77 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/10 |
| Micron 1 | 10 |
MAIN FILTER MF0308774 Specifications
Product Attributes
| Handle | No |
| Product Media | Cellulose |
| Bypass | No |
| Wrap | Yes |
| Height (in.) | 5.24 |
| Maximum Operating Temperature | 248-deg. F |
| Minimum Operating Temperature | -13-deg. F |
| Collapse Pressure | 145 |
| Flow Direction | Outside In |
| Micron Rating | 10 |
| Beta Ratio 1 | 2/10 |
| Gasket Material | Viton |
| Outside Diameter (Bottom) | 1.77 in. |
| Fluid Type | HL, HM, HV, HH |
| Outside Diameter (Top) | 1.77 in. |
| Inside Diameter (Top) | 0.77 in. |
| Filter Media | Cellulose |
| Cracking Pressure | 145 psi |
| Bottom Outside Diameter | 1.77 in. |
| Filter Rating | 10 micron |
| Flow Type | Outside In |
| Height | 5 6/25 in. |
| Seal Material | Viton |
| Seal Type | Viton |
| Top Outside Diameter | 1.77 in. |
| Top Inside Diameter | 0.77 in. |
MAIN FILTER MF0308774 Cross References
| Brand | Part Number |
|---|---|
| FLEETGUARD | HF7348 |
