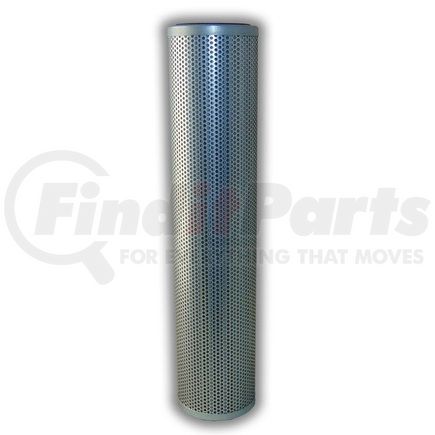

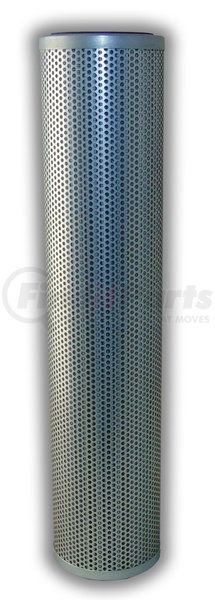

Name: Main Filter MF0308222 Aftermarket Replacement Hydraulic Filter with 20 Micron Rating, Glass, Inside-Out Flow
SKU: mf0308222
Price: 85.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.94
Inide Diameter Top	2.53
Outside Diameter Bottom	3.94
Inside Diameter Bottom	2.34
Collapse Pressure	145
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	78.0362
Filter Area sq in	869
Flow Direction	Inside-Out
Gasket Material	Buna
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/20.7
Beta Ratio 2	1000/26.6
Micron 1	25

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF6247
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Images may be general representations of products and may vary from image
Main Filter MF0308222 replaces OEM HF6247 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Compatible with OEM filter in fit, form and function
Images may be a general representations of products
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF6247
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0308222 replaces OEM HF6247 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Handle	No
Bypass	No
Micron Rating	20
Outside Diameter (Top)	3.94 in.
Minimum Operating Temperature	-13 Deg Fahrenheit
Gasket Material	Buna
Filter Area (sq. in.)	869
Flow Direction	Inside-Out
Height (in.)	18.27
Inside Diameter (Top)	2.53 in.
Collapse Pressure	145
Beta Ratio 1	200/20.7
Wrap	Yes
Maximum Operating Temperature	248 Deg Fahrenheit
Outside Diameter (Bottom)	3.94 in.
Inside Diameter (Bottom)	2.34 in.
Fluid Type	HH / HL / HM / HV
Dust Holding Capacity	78.04 grams
Beta Ratio 2	1000/26.6
Product Media	Glass

Part Interchanges

Fleetguard HF6247

MAIN FILTER MF0308222 Cross Reference

We have 1 alternatives for the MF0308222 by MAIN FILTER:

FLEETGUARD HF6247
