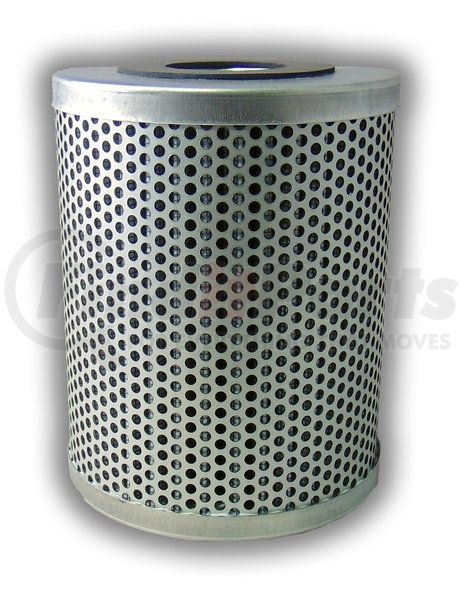

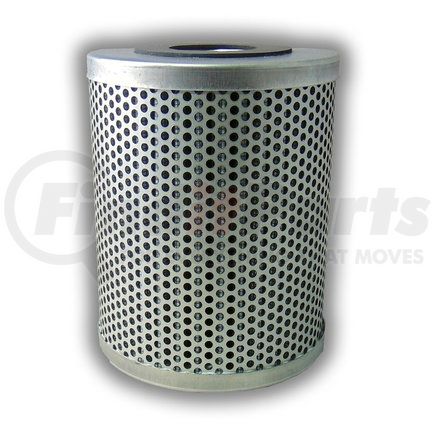

Name: Main Filter MF0308356 Aftermarket Replacement Hydraulic Filter with 40 Micron Rating, Glass, Inside-Out Flow
SKU: mf0308356
Price: 40.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	4.016
Inide Diameter Top	1.378
Outside Diameter Bottom	4.016
Inside Diameter Bottom	1.142
Operating Temp Min F	-13
Operating Temp Max F	248
Flow Direction	Inside-Out
Gasket Material	Buna
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/38.2
Beta Ratio 2	1000/42.4
Micron 1	40
bypass	No
handle	No
wrap	Yes

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF6418
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Images may be general representations of products and may vary from image
Main Filter MF0308356 replaces OEM HF6418 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Interchange/replacement for OEM FLEETGUARD p/n HF6418
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF6418
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0308356 replaces OEM HF6418 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Height (in.)	5.16
Product Media	Glass
Inside Diameter (Top)	1.38 in.
Flow Direction	Inside-Out
Outside Diameter (Bottom)	4.02 in.
Handle	No
Gasket Material	Buna
Wrap	Yes
Fluid Type	HH / HL / HM / HV
Bypass	No
Beta Ratio 2	1000/42.4
Inside Diameter (Bottom)	1.14 in.
Maximum Operating Temperature	248 Deg Fahrenheit
Micron Rating	40
Collapse Pressure	75
Outside Diameter (Top)	4.02 in.
Minimum Operating Temperature	-13 Deg Fahrenheit
Beta Ratio 1	200/38.2

Part Interchanges

Fleetguard HF6418

MAIN FILTER MF0308356 Cross Reference

We have 1 alternatives for the MF0308356 by MAIN FILTER:

FLEETGUARD HF6418
