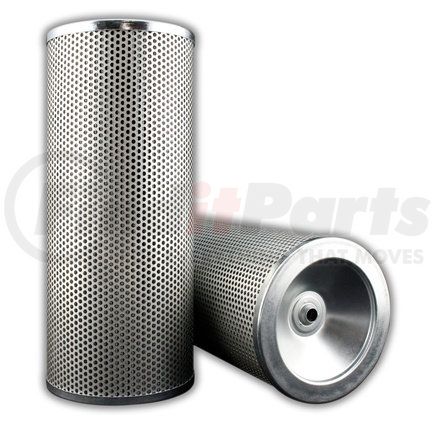

Aftermarket Replacement Hydraulic Filter, 25 Micron Glass Media, Buna N Seal
| Outside Diameter Top | 4.96 |
| Inide Diameter Top | 0.41 |
| Outside Diameter Bottom | 4.96 |
| Inside Diameter Bottom | 3.62 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 74.86 |
| Filter Area sq in | 833 |
| Flow Direction | Inside-Out |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/20.7 |
| Beta Ratio 2 | 1000/26.6 |
| Micron 1 | 25 |
| Micron Rating | 20 |
| Height (in.) | 11.42 |
| Handle | No |
| Wrap | Yes |
| Product Media | Glass |
| Inside Diameter (Top) | 0.41 in. |
| Gasket Material | Buna N |
| Dust Holding Capacity | 74.86 grams |
| Beta Ratio 2 | 1000/26.6 |
| Minimum Operating Temperature | -13-deg. F |
| Maximum Operating Temperature | 248-deg. F |
| Filter Area (sq. in.) | 833 |
| Fluid Type | HL, HM, HV, HH |
| Collapse Pressure | 145 |
| Outside Diameter (Top) | 4.96 in. |
| Bypass | No |
| Beta Ratio 1 | 200/20.7 |
| Inside Diameter (Bottom) | 3.62 in. |
| Outside Diameter (Bottom) | 4.96 in. |
| Flow Direction | Inside Out |
| Bottom Inside Diameter | 3.62 in. |
| Capacity | 74.86g |
| Filter Media | Glass |
| Filter Rating | 25 micron |
| Cracking Pressure | 145 psi |
| Bottom Outside Diameter | 4 24/25 in. |
| Filter Size | 833 sq. in. |
| Flow Type | Inside Out |
| Height | 11.42 in. |
| Seal Type | Buna N |
| Top Inside Diameter | 0.41 in. |
| Top Outside Diameter | 4 24/25 in. |
| Brand | Part Number |
|---|---|
| FLEETGUARD | HF28804 |
