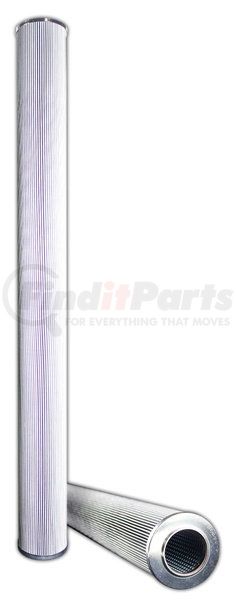

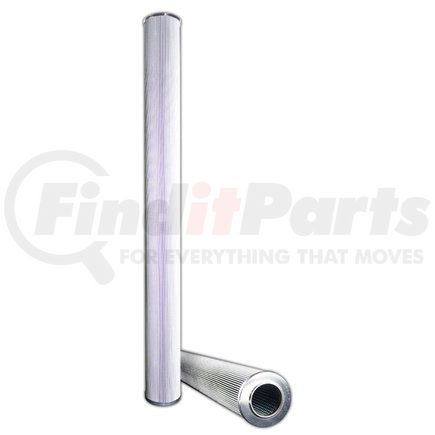

Name: Main Filter MF0337328 Aftermarket Replacement Hydraulic Filter with 20 Micron Rating, Glass, Outside-In Flow
SKU: mf0337328
Price: 164.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.78
Inide Diameter Top	2.224
Outside Diameter Bottom	3.78
Collapse Pressure	363
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	284.991525
Filter Area sq in	3174
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/20.7
Beta Ratio 2	1000/26.6
Micron 1	25

Features & Benefits

Interchange/replacement for OEM PALL p/n HC8900FUT39H
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0337328 replaces OEM HC8900FUT39H by PALL and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Interchange/replacement for OEM PALL p/n HC8900FUT39H
Built using Quality Components with strict quality control.
Images may be a general representations of products
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941

Features & Benefits

Interchange/replacement for OEM PALL p/n HC8900FUT39H
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0337328 replaces OEM HC8900FUT39H by PALL and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Product Media	Glass
Height (in.)	38.66
Outside Diameter (Bottom)	3.78 in.
Minimum Operating Temperature	-13 Deg Fahrenheit
Inside Diameter (Top)	2.22 in.
Handle	No
Collapse Pressure	363
Bypass	No
Gasket Material	Viton
Dust Holding Capacity	284.99 grams
Flow Direction	Outside-In
Micron Rating	20
Filter Area (sq. in.)	3174
Outside Diameter (Top)	3.78 in.
Wrap	No
Beta Ratio 1	200/20.7
Maximum Operating Temperature	248 Deg Fahrenheit
Fluid Type	HH / HL / HM / HV
Beta Ratio 2	1000/26.6

Part Interchanges

Pall HC8900FUT39H

MAIN FILTER MF0337328 Cross Reference

We have 1 alternatives for the MF0337328 by MAIN FILTER:

PALL HC8900FUT39H
