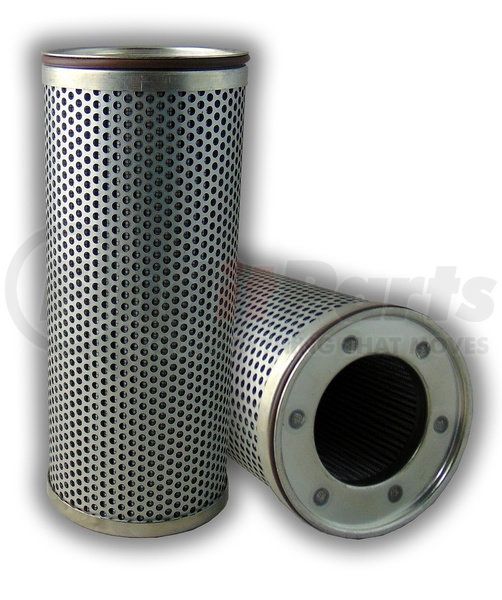

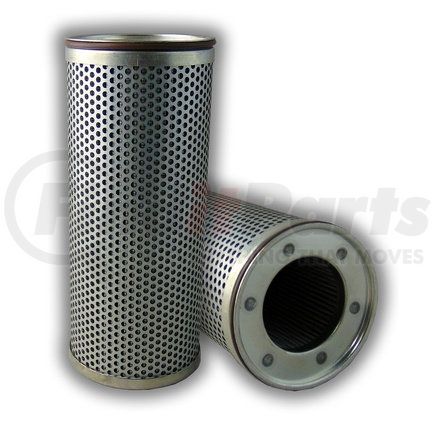

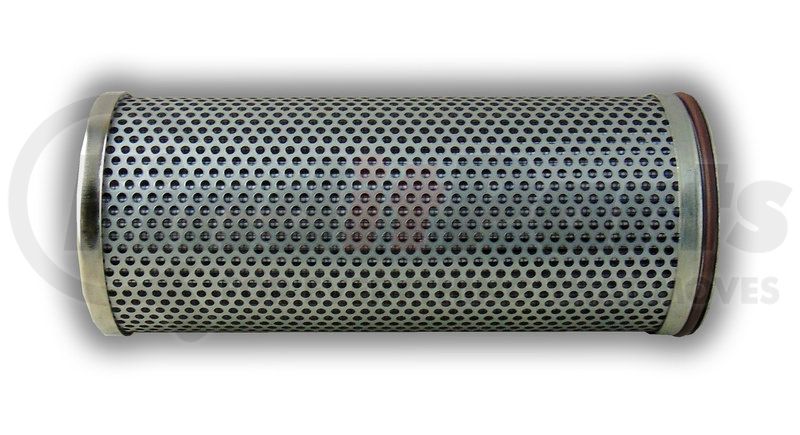

(888) 312-8812 Login SignupMAIN FILTER MF0336417 Aftermarket Replacement Hydraulic Filter with 5 Micron Rating, Glass, Inside-Out Flow
Tap to view 2 more
MSRP: $68.14
$6099
Save $7.15
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 18
MAIN FILTER MF0336417 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM PALL p/n HC6400FUN8Z
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0336417 replaces OEM HC6400FUN8Z by PALL and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 3.386 |
| Inide Diameter Top | 1.949 |
| Outside Diameter Bottom | 3.386 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 53.475527 |
| Filter Area sq in | 571 |
| Flow Direction | Inside-Out |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/5.4 |
| Beta Ratio 2 | 1000/7.7 |
| Micron 1 | 5 |
Features & Benefits
- Interchange/replacement for OEM PALL p/n HC6400FUN8Z
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0336417 replaces OEM HC6400FUN8Z by PALL and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM PALL p/n HC6400FUN8Z
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- Images may be a general representations of products
- Built using Quality Components with strict quality control.
MAIN FILTER MF0336417 Specifications
Product Attributes
| Outside Diameter (Top) | 3.39 in. |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Filter Area (sq. in.) | 571 |
| Bypass | No |
| Handle | No |
| Height (in.) | 8.07 |
| Outside Diameter (Bottom) | 3.39 in. |
| Micron Rating | 5 |
| Product Media | Glass |
| Inside Diameter (Top) | 1.94 in. |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Wrap | Yes |
| Beta Ratio 2 | 1000/7.7 |
| Collapse Pressure | 145 |
| Dust Holding Capacity | 53.48 grams |
| Flow Direction | Inside-Out |
| Beta Ratio 1 | 200/5.4 |
MAIN FILTER MF0336417 Cross References
| Brand | Part Number |
|---|---|
| PALL | HC6400FUN8Z |
