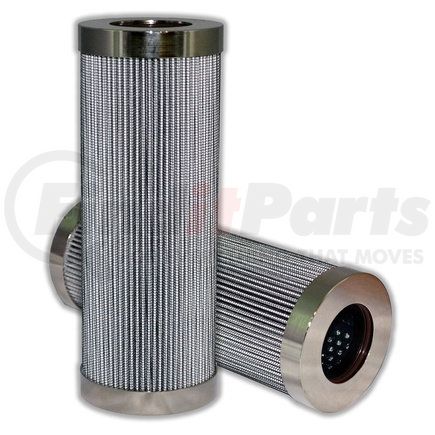

(888) 312-8812 Login SignupMAIN FILTER MF0418356 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
Tap to view 2 more
MSRP: $183.66
$16149
Save $22.17
Limited availability at this price!
In Stock
Get it by Friday, Jan 16
MAIN FILTER MF0418356 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM FILTERSOFT p/n H9508MABH
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0418356 replaces OEM H9508MABH by FILTERSOFT and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 3.071 |
| Inide Diameter Top | 1.693 |
| Outside Diameter Bottom | 3.071 |
| Inside Diameter Bottom | 1.693 |
| Collapse Pressure | 3045 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 29.06498 |
| Filter Area sq in | 393 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Micron 1 | 3 |
Features & Benefits
- Interchange/replacement for OEM FILTERSOFT p/n H9508MABH
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0418356 replaces OEM H9508MABH by FILTERSOFT and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM FILTERSOFT p/n H9508MABH
- Buy hydraulic filters direct from the manufacturer
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Main Filter MF0418356 replaces OEM H9508MABH by FILTERSOFT and is compatible in fit, form and function.
MAIN FILTER MF0418356 Specifications
Product Attributes
| Bypass | No |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Flow Direction | Outside-In |
| Micron Rating | 3 |
| Height (in.) | 8.14 |
| Inside Diameter (Bottom) | 1.69 in. |
| Inside Diameter (Top) | 1.69 in. |
| Filter Area (sq. in.) | 393 |
| Handle | No |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Product Media | Glass |
| Fluid Type | HH / HL / HM / HV |
| Outside Diameter (Top) | 3.07 in. |
| Wrap | No |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Outside Diameter (Bottom) | 3.07 in. |
| Gasket Material | Viton |
| Collapse Pressure | 3045 |
| Dust Holding Capacity | 29.06 grams |
MAIN FILTER MF0418356 Cross References
| Brand | Part Number |
|---|---|
| FILTERSOFT | H9508MABH |
