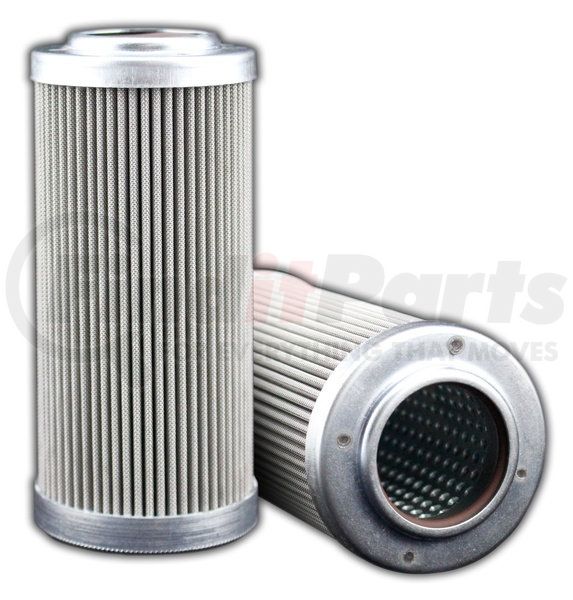

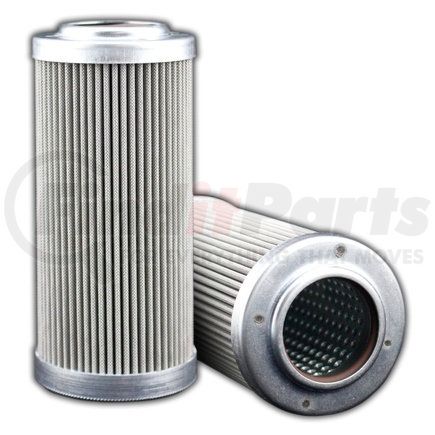

MAIN FILTER part description

Technical Specifications

Outside Diameter Top 2.362
Inide Diameter Top 1.346
Outside Diameter Bottom 2.362
Collapse Pressure 3045
Operating Temp Min F -13
Operating Temp Max F 248
Capacity gr 4.45718
Filter Area sq in 171
Flow Direction Outside-In
Gasket Material Viton
Fluid Type HH / HL / HM / HV
Beta Ratio 1 200/20
Micron 1 20

Features & Benefits

  • Interchange/replacement for OEM SEPARATION TECHNOLOGIES p/n H160D20V
  • Compatible with OEM filter in fit, form and function
  • All of our elements are manufactured following ISO specifications.
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0343346 replaces OEM H160D20V by SEPARATION TECHNOLOGIES and is compatible in fit, form and function.
  • All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products
  • Interchange/replacement for OEM SEPARATION TECHNOLOGIES p/n H160D20V
  • Images may be a general representations of products
  • Main Filter MF0343346 replaces OEM H160D20V by SEPARATION TECHNOLOGIES and is compatible in fit, form and function.
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products

Features & Benefits

  • Interchange/replacement for OEM SEPARATION TECHNOLOGIES p/n H160D20V
  • Compatible with OEM filter in fit, form and function
  • All of our elements are manufactured following ISO specifications.
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0343346 replaces OEM H160D20V by SEPARATION TECHNOLOGIES and is compatible in fit, form and function.
  • All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products

Product Attributes

Bypass No
Gasket Material Viton
Handle No
Flow Direction Outside-In
Collapse Pressure 3045
Minimum Operating Temperature -13 Deg Fahrenheit
Beta Ratio 1 200/20
Dust Holding Capacity 4.46 grams
Filter Area (sq. in.) 171
Wrap No
Outside Diameter (Bottom) 2.36 in.
Outside Diameter (Top) 2.36 in.
Height (in.) 5.08
Product Media Stainless Steel Fiber
Fluid Type HH / HL / HM / HV
Inside Diameter (Top) 1.35 in.
Micron Rating 20
Maximum Operating Temperature 248 Deg Fahrenheit
