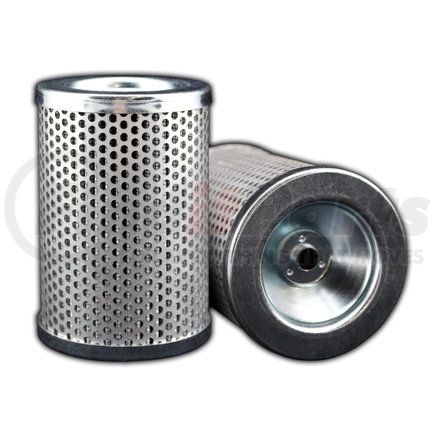

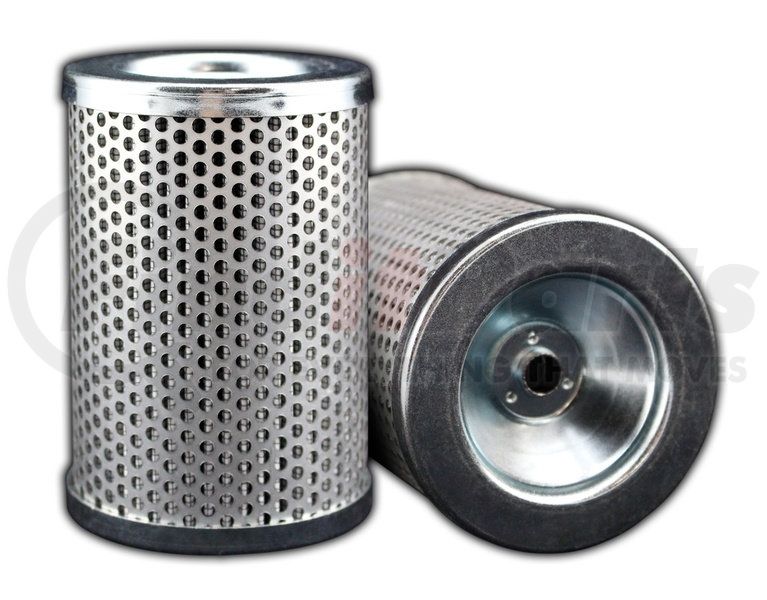

MAIN FILTER part description

Technical Specifications

Outside Diameter Top 2.835
Inide Diameter Top 1.772
Outside Diameter Bottom 2.835
Inside Diameter Bottom 0.331
Collapse Pressure 145
Operating Temp Min F -13
Operating Temp Max F 248
Capacity gr 15.78148
Filter Area sq in 161
Flow Direction Inside-Out
Gasket Material Buna
Fluid Type HH / HL / HM / HV
Beta Ratio 1 200/9.9
Beta Ratio 2 1000/12.4
Micron 1 10

Features & Benefits

  • Interchange/replacement for OEM VICKERS p/n FT1001A10A
  • Compatible with OEM filter in fit, form and function
  • All of our elements are manufactured following ISO specifications.
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0427360 replaces OEM FT1001A10A by VICKERS and is compatible in fit, form and function.
  • All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products
  • Interchange/replacement for OEM VICKERS p/n FT1001A10A
  • Buy hydraulic filters direct from the manufacturer
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products

Features & Benefits

  • Interchange/replacement for OEM VICKERS p/n FT1001A10A
  • Compatible with OEM filter in fit, form and function
  • All of our elements are manufactured following ISO specifications.
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0427360 replaces OEM FT1001A10A by VICKERS and is compatible in fit, form and function.
  • All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products

Product Attributes

Bypass No
Beta Ratio 1 200/9.9
Flow Direction Inside-Out
Beta Ratio 2 1000/12.4
Filter Area (sq. in.) 161
Handle No
Height (in.) 4.13
Maximum Operating Temperature 248 Deg Fahrenheit
Inside Diameter (Bottom) 0.33 in.
Dust Holding Capacity 15.78 grams
Inside Diameter (Top) 1.77 in.
Collapse Pressure 145
Product Media Glass
Gasket Material Buna
Fluid Type HH / HL / HM / HV
Micron Rating 10
Minimum Operating Temperature -13 Deg Fahrenheit
Outside Diameter (Bottom) 2.84 in.
Outside Diameter (Top) 2.84 in.
Wrap Yes

Part Interchanges

MAIN FILTER MF0427360 Cross Reference

We have 1 alternatives for the MF0427360 by MAIN FILTER:
