Centric 320.66016F - Centric GCX Rotor with Full Coating
$7499
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

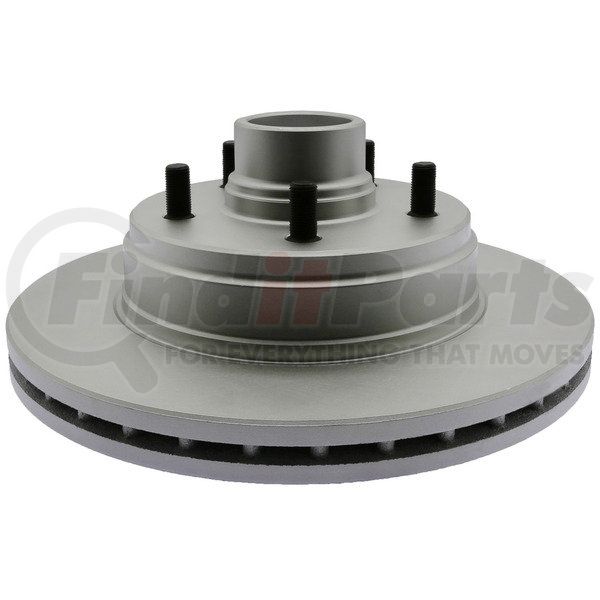

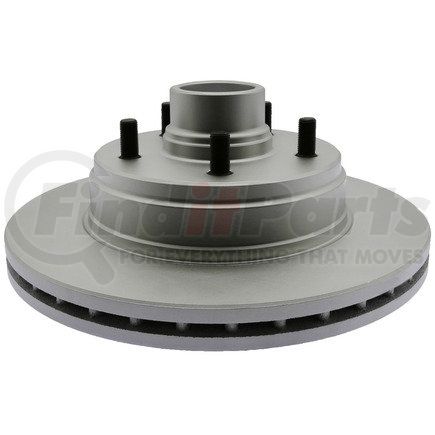

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Hub & Rotor |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Inner Seal # [cntrc] | 417.66004 |
| Inner Bearing # [cntrc] | 410.91006 |
| Outer Bearing # [cntrc] | 410.91003 |
| Weight [cntrc] Kgs | 12.050 |
| Weight [cntrc] Lbs | 26.500 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 24.500 MM |
| Discard Thickness | 0.965 IN |
| Nominal Thickness | 26.400 MM |
| Nominal Thickness | 1.039 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 117.800 MM |
| Overall Height | 4.638 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| 54 | 301.000 MM |
| Rotor Outside Diameter | 11.850 in |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 77.800 MM |
| Center Hole Diameter | 3.063 IN |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590393378 |
CENTRIC 320.66016F Cross Reference
We have 3 alternatives for the 320.66016F by CENTRIC:
Fits Vehicles
- Chevrolet Astro (1990-2002)
- GMC Safari (1990-2002)
