(888) 312-8812 Login SignupCSF 7092 05-15 TACOMA (2ND GEN)RADIATOR
Tap to view 5 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CSF 7092 Part Description
Manufacturer
Product Description

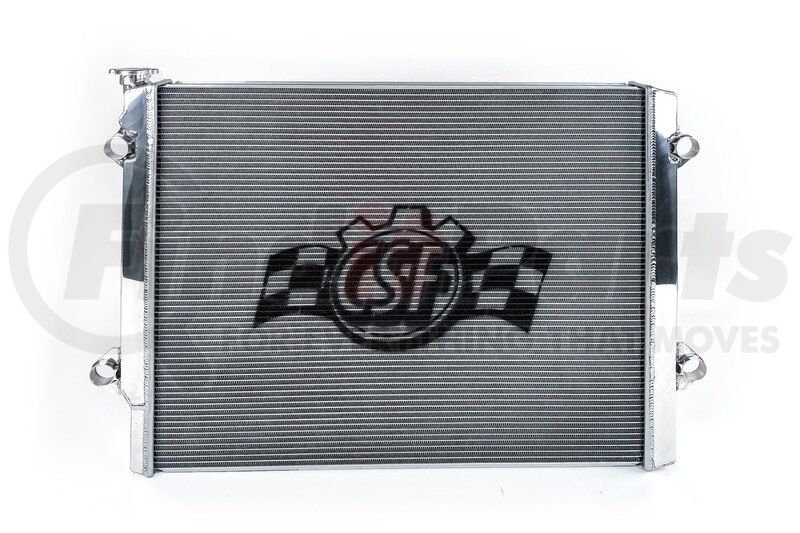

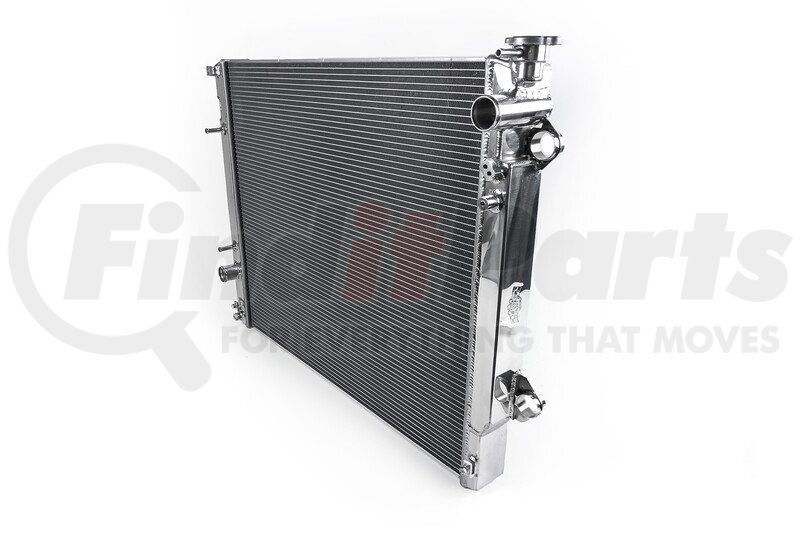

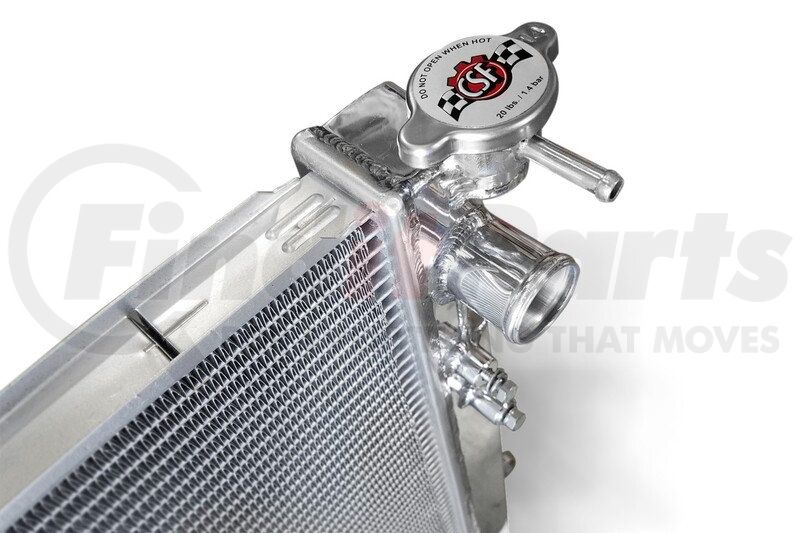

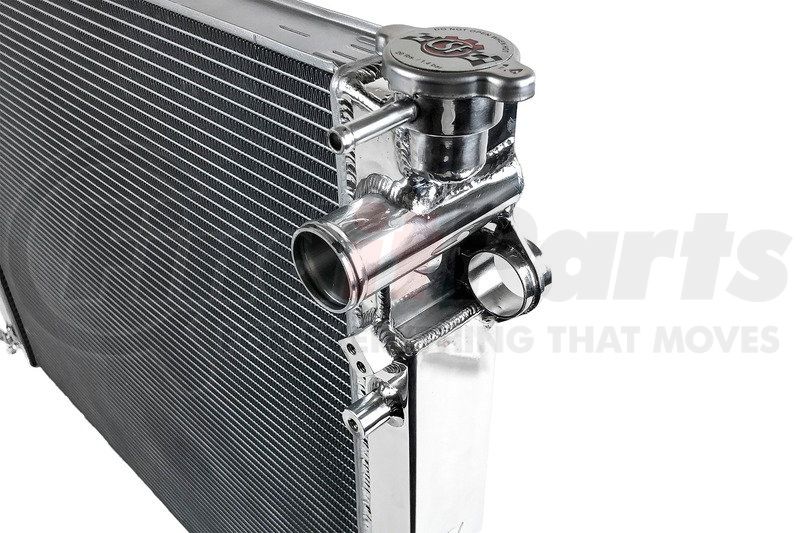

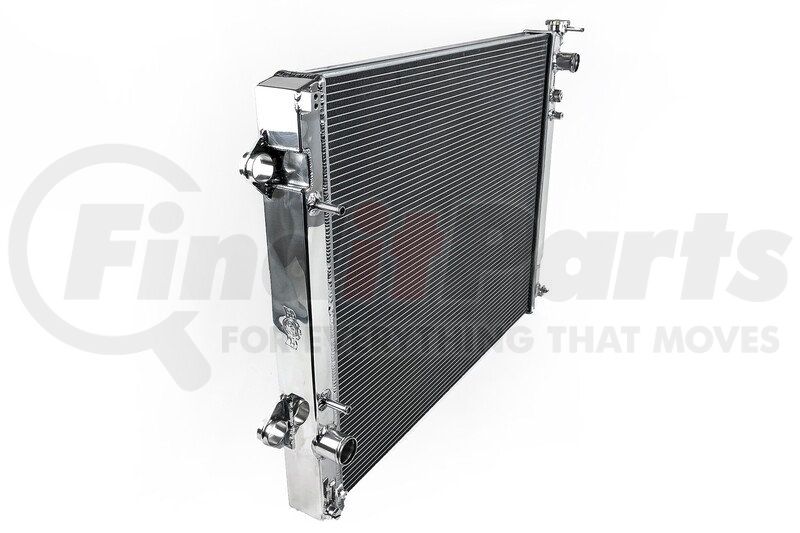

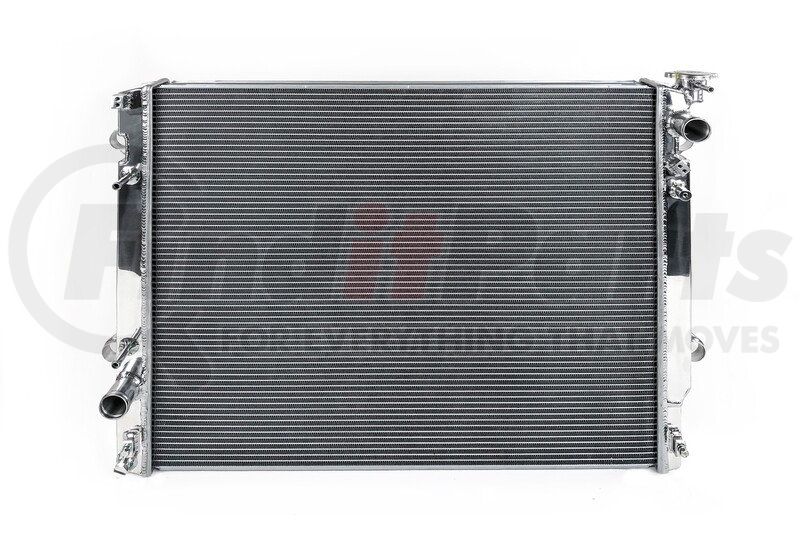

05+ Toyota Tacoma (3.5L / 4.0L / 2.7L) High-Performance All-Aluminum Radiator
Features & Benefits
- 2-Row, 42mm Ultra-High Performance Radiator
- 6.5mm Tall Multi-Louvered Fins with CSF's Exclusive B-Tube Technology
- CNC Machined Mounting Brackets
- 100% All Aluminum TIG Welded Construction
- 2 Year Limited Warranty
- True "Drop-In" Fit with no Modifications Necessary
- Smooth Satin Finish
The CSF #7092 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

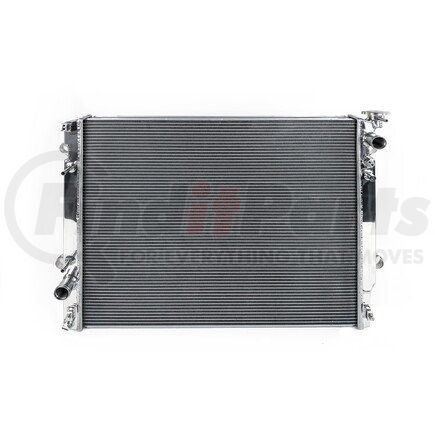

05-15 TACOMA (2ND GEN)RADIATOR
CSF 7092 Specifications
Product Attributes
| Core Material | Aluminum |
| Core Width | 21.625 in. |
| Radiator Cap Included | Yes |
| Outlet Connector Type | Slip On |
| Inlet Connector Type | Slip On |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Engine Oil Cooler | No |
| Internal Transmission Oil Cooler | Yes |
| Outlet Location | Bottom Left |
| Inlet Location | Top Right |
| Outlet Diameter | 1.375 in. |
| Inlet Diameter | 1.375 in. |
| Core Row Quantity | 2 |
| Core Thickness | 1.625 in. |
| Title | 05+ Toyota Tacoma (3.5L / 4.0L / 2.7L) High-Performance All-Aluminum Radiator |
| Core Height | 25.625 in. |
| Mounting Hardware Included | No |
| Thermostat Included | No |
| Tank Material | Aluminum |
| Mounting Type | Mounts with OE Hardware |
| Frame Included | No |
| Coolant Hose Outlet Connection Type | OE Type Connection |
| Coolant Hose Inlet Connection Type | OE Type Connection |
| Installation Type | Drop-In Fit Installation |
| Finish/Color | Satin |
| Prop 65 Yes/no | No |
| Grade Type | Performance |
Additional Information
| Core Return Days to Expiry | 0 |
| Warranty Time | 2 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | ID |
| Harmonized Tariff Code (Schedule B) | 8708915000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00710353070925 |
CSF 7092 Cross References
| Brand | Part Number |
|---|---|
| Toyota | 16410 0P030, 16410-0P030, 164100P030, 16410 0P040, 16410-0P040, 164100P040, 16410 0C190, 16410-0C190, 164100C190, 16410 AZ006, 16410-AZ006, 16410AZ006, 16410 0C180, 16410-0C180, 164100C180, 16410 0C430, 16410-0C430, 164100C430, 16410 0C420, 16410-0C420, 164100C420, 16410 0P300, 16410-0P300, 164100P300, 16410 0P290, 16410-0P290, 164100P290 |
CSF 7092 Fits Vehicles
- Toyota Tacoma (2005-2023)
CSF 7092 Customer Reviews
No reviews yet
Be the first to review this product!
CSF 7092 Manufacturer Information
When it comes to heavy-duty or performance vehicle cooling, trust only the experts—CSF. Called "The Cooling Experts," CSF has sold over 30 million products, including intercoolers, condensers, radiators, pressure caps, racing radiators, and other solutions to vehicle cooling problems. Whatever the application, CSF has the ideal solution. Its portfolio comprises over 3000 models manufactured in state-of-the-art, ISO-certified facilities. Every CSF product, especially its radiators, has been rigorously tested—Hydrostatic, vacuum decaying, life-cycle testing—and is meticulously crafted to provide a "drop-in fit." This world leader in automotive cooling now exclusively sells its products through its huge network of over 500 distributors across the country.
