DELPHI TA5702 Part Description
Manufacturer
Product Description

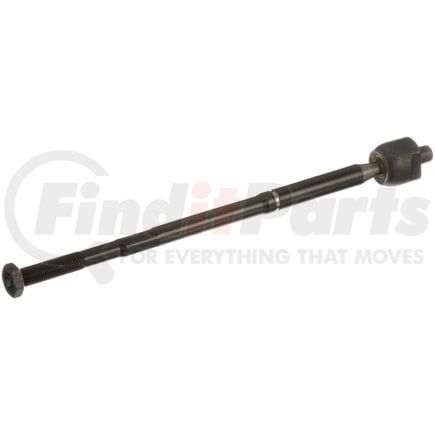

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5702 Specifications
Product Attributes
| Position(s) | Front Inner |
| Item Grade | Standard Replacement |
| Length | 355.50 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 35 MM |
| Type | Straight |
| End 2 Thread Diameter | 13.97 MM |
| Height | 35.00 MM |
| Housing Material | Steel |
| Tube Diameter | 17.00 MM |
| Adjustable | No |
| Greaseable | No |
| Cone Outside Diameter | 15.70 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Tapered |
| End 2 Thread Pitch | 57 MM |
| End 1 Thread Pitch | 13.97 MM |
| Length - Stud Center to End | 339.00 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 13.97 MM |
| Shank Length | 15.70 MM |
| Stud Length | 15.70 MM |
| Mounting Hardware Included | Yes |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.618 IN |
| Stud Length | 0.618 IN |
| End 2 Thread Diameter | 0.550 IN |
| Tube Diameter | 0.670 IN |
| Cone Outside Diameter | 0.618 IN |
| Length - Stud Center to End | 13.346 IN |
| End 1 Thread Diameter | 0.550 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604337042 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5702 Cross References
DELPHI TA5702 Fits Vehicles
- Scion xB (2004-2006)
- Toyota Echo (2002-2005)
