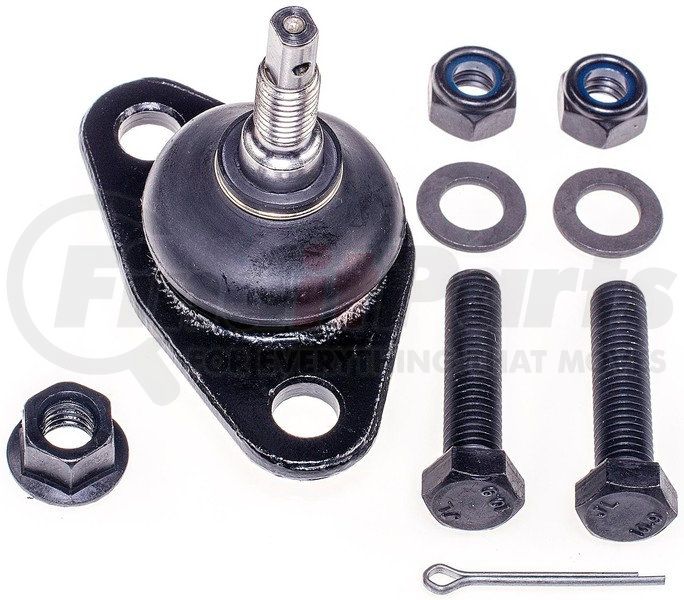

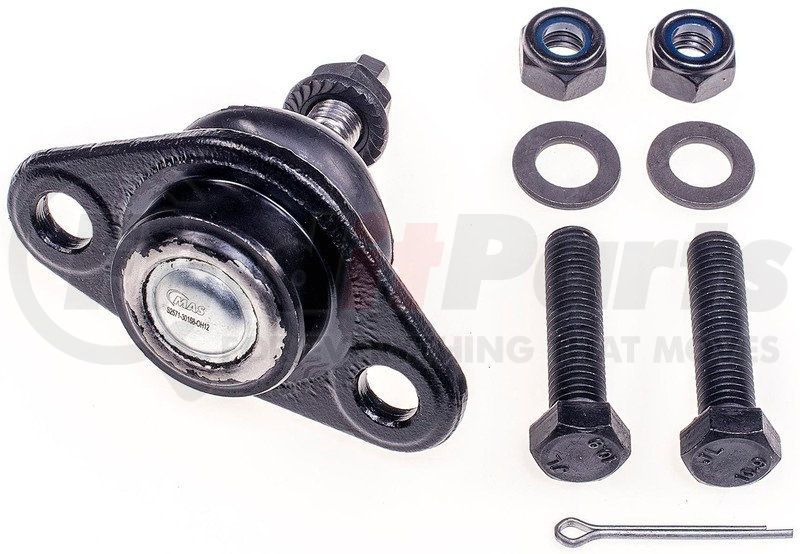

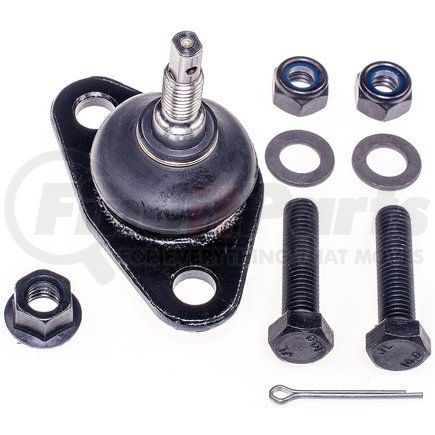

(888) 312-8812 Login SignupDORMAN B9141 Suspension Ball Joint
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DORMAN B9141 Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Volvo 1998-83
Features & Benefits
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN B9141 Specifications
Product Attributes
| Material | Acero |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Non |
| Suspension Grade Type | Reemplazo estándar |
| Cotter Pin Hole | Oui |
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 2 |
| Adjustable | Non |
| Greaseable | Non |
| Stud Type | Cónico |
| Mounting Type | Con perno |
| Dust Boot Material | Élastomère |
| Attachment Type | Cono |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Package Contents | 1 Cotter Pin |
| Thread Pitch | 1.75 |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 1 pasador (chaveta) |
| Diámetro del acoplado a presión de la caja | 45mm mm |
| Housing Press Fit Diameter | 45 mm MM |
| Pernos/argollas incluidos | Sí |
| Stud Thread Pitch | 1.5 mm MM |
| Stud Thread Diameter | 12 mm MM |
| Nuts Included | Oui |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Diámetro de la rosca de la argolla | 12 mm MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00843295012910 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN B9141 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 1013782, 101-3782 |
| C-Tek | 611.39002 |
| Centric Parts | 610.39002, 611.39002 |
| DORMAN | 536-814 |
| Delphi | TC418 |
| MEVOTECH | MK9141 |
| MOOG | K9141 |
| MOOG Chassis Products | K9141 |
| Mcquay-Norris | FA2297 |
| Mevotech Original Grade | GK9141 |
| Mevotech Supreme | MK9141 |
| QUICK STEER | K9141 |
| QuickSteer | K9141 |
| SUSPENSIA | X53BJ4512 |
| TRW | JBJ226 |
| Volvo | 1229573, 270477, 2704773 |
| XRF | K9141 |
| XRF Chassis | K9141 |
DORMAN B9141 Fits Vehicles
- Volvo V90 (1997-1998)
- Volvo S90 (1997-1998)
- Volvo 780 (1987-1991)
- Volvo 960 (1992-1997)
- Volvo 760 (1983-1990)
- Volvo 940 (1991-1995)
- Volvo 745 (1985)
- Volvo 740 (1985-1992)
