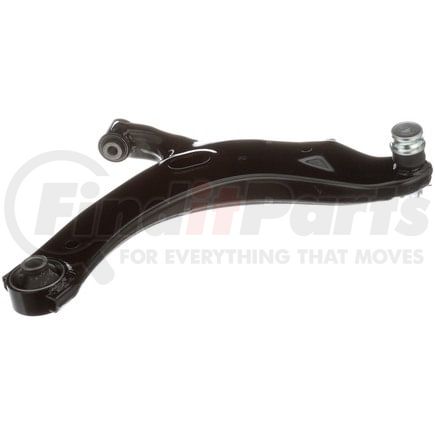

(888) 312-8812 Login SignupDELPHI TC7363 Control Arm and Ball Joint Assembly
Tap to view 13 more
$12649
Limited availability at this price!
In Stock
Get it by Friday, Jan 23
DELPHI TC7363 Part Description
DELPHI TC7363 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 15.906 IN |
| Control Arm Maximum Width | 404.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 3.150 IN |
| Ball Joint Stud Length | 80.00 MM |
| Control Arm Maximum Length | 17.244 IN |
| Control Arm Maximum Length | 438.00 MM |
| Mounting Hole Diameter | 0.756 IN |
| Mounting Hole Diameter | 19.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | US |
| UPC | 00689604349335 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC7363 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-8052 |
| DORMAN | CB72164, CB72164PR |
| Dorman | 524-784 |
| MAS Industries | CB72164, CB72164PR |
| MEVOTECH | CMS801052, CMS801179 |
| MOOG Chassis Products | 102-8052 |
| N/A | RK622789, CMS801052, GS801052 |
| Subaru | 20202 SC000, 20202 SC001, 20202 SC002 |
DELPHI TC7363 Fits Vehicles
- Subaru WRX (2012-2014)
- Subaru Impreza (2011-2014)
- Subaru Forester (2009-2013)
