(888) 312-8812 Login SignupMPA ELECTRICAL WH513263 Wheel Bearing and Hub Assembly
Tap to view 3 more
$9099
Limited availability at this price!
In Stock
Get it by Monday, Jul 27
MPA ELECTRICAL WH513263 Part Description
Manufacturer
Product Description

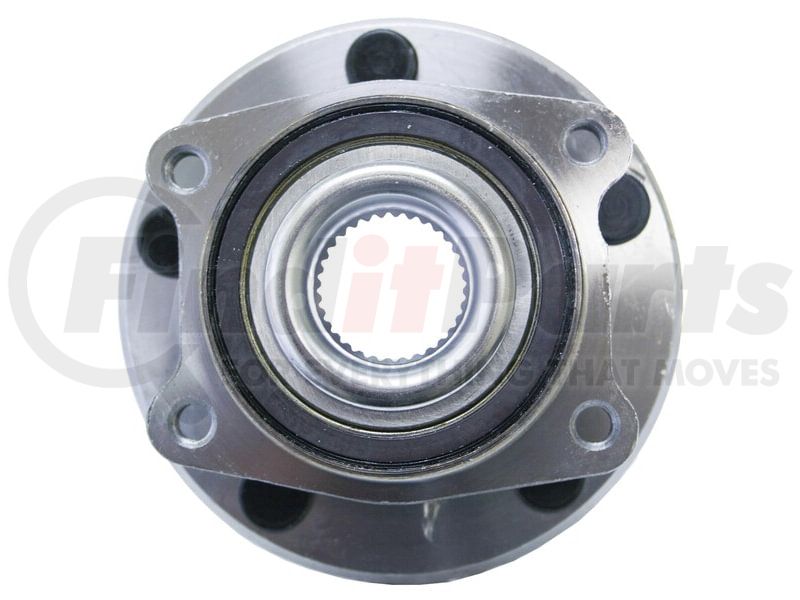

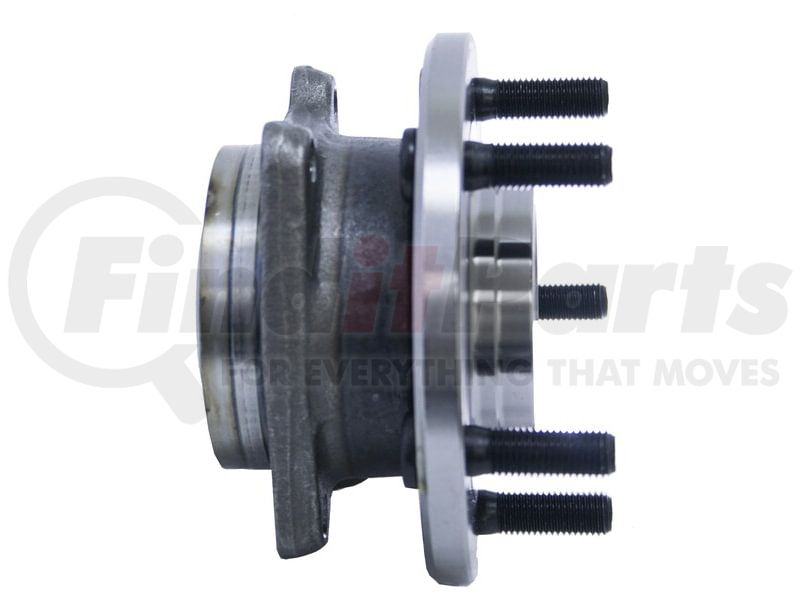

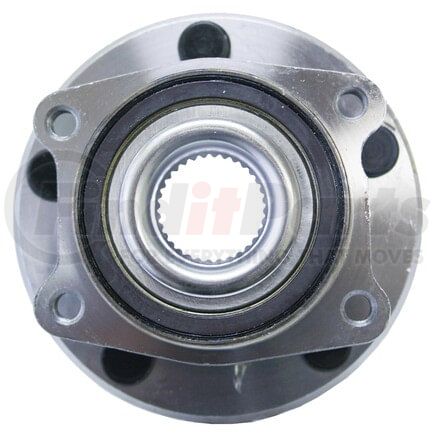

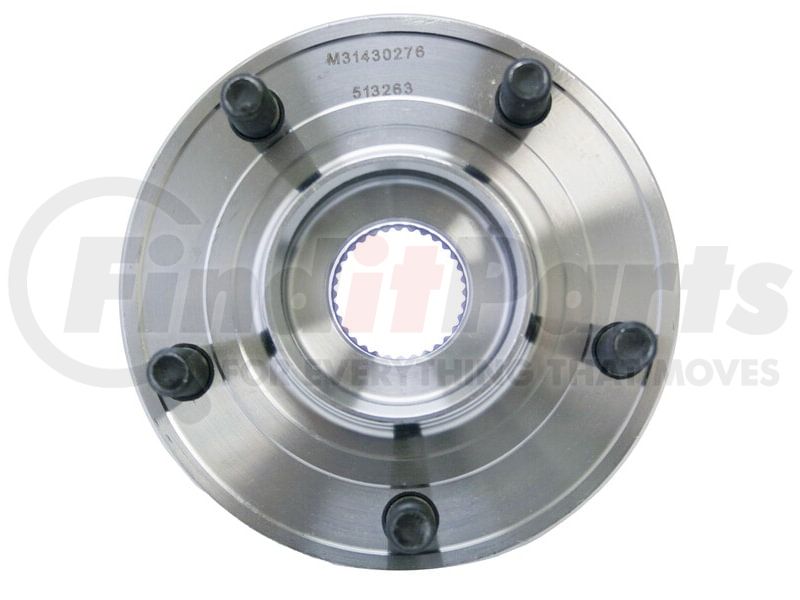

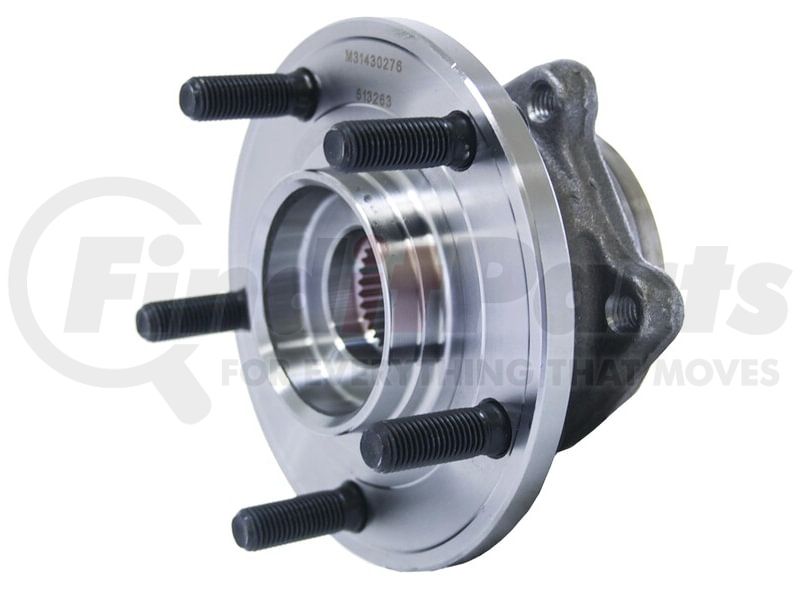

Wheel Bearing and Hub Assembly
Application Summary
Chrysler 200 2014-2011, Cirrus 2010-2007, Sebring 2010-2007, Dodge Avenger 2014-2008, Caliber 2009
Features & Benefits
- Premium, high-carbon steel alloys improve load bearing capabilities and strength.
- Induction hardened, micro-finished races improve bearing durability and load capacity.
- Application-specific ABS sensors included for perfect vehicle control system signaling.
MPA ELECTRICAL WH513263 Specifications
Product Attributes
| Gasket or Seal Included | Yes |
| Flange Diameter Inch | 4.5 |
| Material | Steel |
| Spline Quantity | 32 |
| Wiring Harness Included | No |
| Product Condition | New |
| Stud Quantity | 5 |
| Wheel Stud Size MM | M12 x 1.5 |
| Hub Pilot Diameter Inch | 3.345 |
| Greaseable | No |
| Spline Quantity | 32 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Wheel Studs Included | Yes |
| Flange Shape | Trapezoid |
| Anti Lock Braking System Type | Encoder |
| Anti-Lock Brake Sensor Included | No |
| Flange Offset | 1.925 IN |
| Flange Diameter | 4.5 IN |
| Bolt Circle Diameter | 4.485 IN |
| Bolt Circle Diameter | 113.919 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708995800 |
| Country of Origin (Primary) | CN |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Warranty Distance | 12000 |
| Warranty Distance UOM | DH |
| UPC | 00029175924065 |
MPA ELECTRICAL WH513263 Cross References
MPA ELECTRICAL WH513263 Fits Vehicles
- Chrysler 200 (2011-2014)
- Chrysler Cirrus (2007-2010)
- Dodge Caliber (2009)
- Dodge Avenger (2008-2014)
- Chrysler Sebring (2007-2010)
