(888) 312-8812 Login SignupGATES 70355 MXT MegaSys Wire Braid Hose - SAE 100R16
$87450
Package Price for 50 Units
@ $17.49 per unit
Limited availability at this price!
In Stock
Get it by Thursday, Jan 15
GATES 70355 Part Description
Manufacturer
Product Description

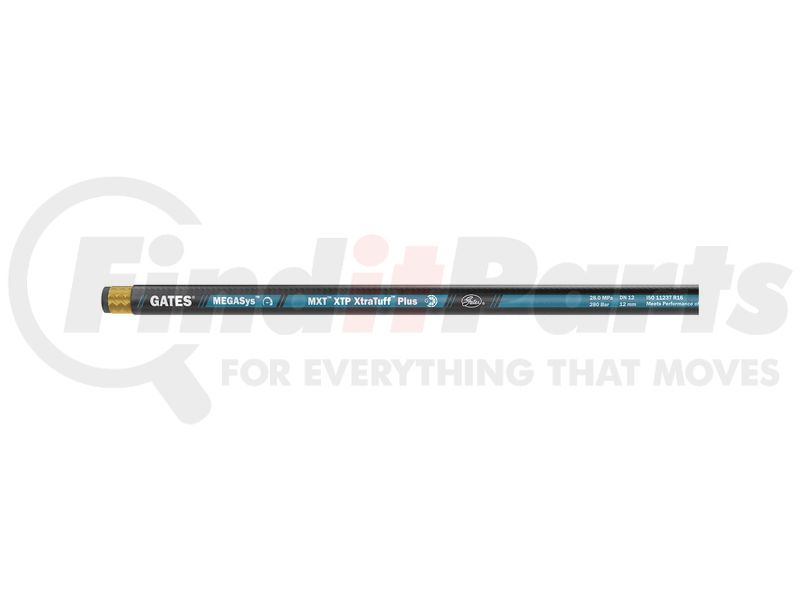

MXT MegaSys Wire Braid Hose - SAE 100R16
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- Tested to industry-leading 600,000 impulse cycles
- More flexible with up to 40 percent lower force-to-bend for faster and more ergonomic installation
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 70355 Specifications
Product Attributes
| Product Type | MXT MegaSys Wire Braid Hose - SAE 100R16 |
| Industrial Description | 12MXTX50REEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 3125 PS |
| Burst Pressure | 12500 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 50 FT |
| Dash Size | 12 |
| Inside Diameter | .75 IN |
| Outside Diameter | 1.08 IN |
| Bend Radius | 4.75 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile |
| Reinforcement Material | One Braid, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Polychloroprene |
| Cover Type | Flame, Oil & Weather Resistant |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | 100R16 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| UPC | 00770075773764 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70355 Cross References
| Brand | Part Number |
|---|---|
| NAPA | 70355 |
