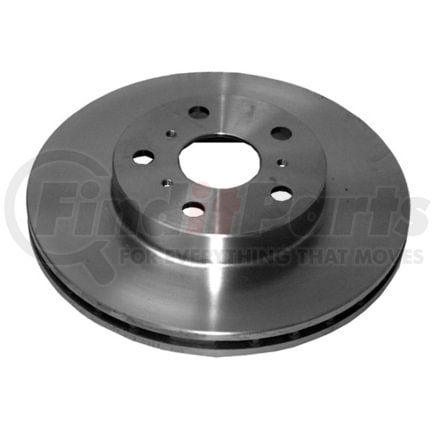

(888) 312-8812 Login SignupACDELCO 18A332 Front Brake Rotor
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
ACDELCO 18A332 Part Description
Front Brake Rotor
ACDELCO 18A332 Specifications
Product Attributes
| Discard Thickness | 0.827 IN |
| Nominal Thickness | 0.865 IN |
| Thickness (in) | 0.865 In |
| Height (in) | 1.9 in |
| Pad Contact Surface Width | 2.1 IN |
| Center Bore Diameter (in) | 2.1in |
| Bolt Circle Diameter (in) | 3.9 in |
| Number Of Lugs | 5 |
| Bolt Hole Quantity | 5 |
| Center Hole Diameter | 2.127 IN |
| Width (in) | 10.6 in |
| Length (In) | 10.6 IN |
| Weight | 12 lb |
| Discard Thickness | 21 MM |
| Thickness (mm) | 21.971 mm |
| Nominal Thickness | 21.95 MM |
| Height (mm) | 47.9 mm |
| Outside Diameter | 10.04 IN |
| Center Bore Diameter (mm) | 54mm |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Max Bolt Hole Diameter (mm) | 54.1mm |
| Pad Contact Surface Width | 54.2 MM |
| Bolt Circle Diameter (mm) | 100 mm |
| Pitch Circle Diameter (mm) | 100mm |
| Outside Diameter | 255 MM |
| Overall Rotor Diameter (mm) | 255.02mm |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Product Description | ACDelco Gold (Professional) Non-Coated Disc Brake Rotors are a high quality alternative to Original Equipment (OE) parts. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 1 | Brake pedal pulsation (not to be confused with normal ABS operation). |
| Signs of Wear & Troubleshooting - Section 1 - Header | Brake rotor signs of wear include: |
| Good Maintenance Practices - Section 1 - Bullet 2 | Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required. |
| Material | Cast Iron |
| Good Maintenance Practices - Section 1 - Bullet 1 | Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations. |
| Good Maintenance Practices - Section 1 - Bullet 4 | Check the thickness of your brake pads. |
| FAQ - Question 1 | Does ACDelco offer other grades of brake rotors? |
| Construction | Full Cast |
| Disc Finish | Ground |
| Good Maintenance Practices - Section 1 - Bullet 3 | Inspect the brake lines for rust, punctures, or visible leaks (You may be able to do this, but consult a qualified technician if necessary). |
| Good Maintenance Practices - Section 2 - Bullet 2 | Inspection of brake lining and pads for wear or contamination by brake fluid or grease. |
| Good Maintenance Practices - Section 2 - Bullet 1 | Inspection of the brake hoses for brittleness or cracking. |
| Good Maintenance Practices - Section 2 - Bullet 3 | Inspection of wheel bearings and grease seals. |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 3 | Low brake pedal height. |
| Features & Benefits - Bullet 3 | Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models |
| Includes ABS Sensor Ring | No |
| Rust Resistant Coating | No |
| Programming Required | No |
| Slotted | No |
| Good Maintenance Practices - Section 2 - Bullet 4 | Parking brake adjustments (as needed). |
| Features & Benefits - Bullet 2 | Premium aftermarket replacement part |
| Grade Type | Regular |
| Surface Type | Smooth |
| Features & Benefits - Bullet 1 | Some ACDelco Gold parts may have formerly appeared as ACDelco Professional |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 2 | Squealing or grinding noises. |
| Good Maintenance Practices - Section 1 - Header | The following inspections and maintenance procedures can help prevent potential brake problems: |
| Good Maintenance Practices - Section 2 - Header | The following should be conducted by a qualified technician: |
| Hat Finish | Turned |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 4 | Vehicle pulls to the left or right when brakes are applied. |
| Solid Or Vented Type Rotor | Vented |
| Disc Brake Rotor Construction | Vented |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 5 | Visible ridges or deep grooves on the rotor surface. |
| FAQ - Answer 1 | Yes, ACDelco also offers GM OE brake rotor and Advantage brake rotors. |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 5 |
| Center Hole Diameter | 54.05 MM |
| Overall Height | 1.885 IN |
| Overall Height | 47.9 MM |
| Stud/Lug Hole Quantity | 5 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| ABS Tone Ring Included | No |
Additional Information
| Warranty Special | 24 Months/Unlimited Miles Limited Warranty (Parts Only). Please see ACDelco.com for more details|36 Months/60,000 Kilometers Limited Warranty (Parts Only). Please see ACDelcocanada.com for more details |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Country of Origin (Primary) | US |
| Warranty Special UOM | TX |
| UPC | 00036666665499 |
ACDELCO 18A332 Cross References
| Brand | Part Number |
|---|---|
| WAGNER | BD60891 |
ACDELCO 18A332 Fits Vehicles
- Toyota Camry (1987)
ACDELCO 18A332 Customer Reviews
No reviews yet
Be the first to review this product!
ACDELCO 18A332 Manufacturer Information
A true OEM auto parts brand for GM and non-GM vehicles, ACDelco® offers a wide portfolio of parts designed to keep vehicles on the road longer. These parts work precisely and fit perfectly because they are designed, engineered, tested, and backed by General Motors. But ACDelco also carries aftermarket components that go through the same 18-step quality approval process as the OE parts. Whether customers choose OE or aftermarket, they’d get the same reliable performance, precise engineering, and superior reliability for years to come. ACDelco’s expansive product portfolio includes alternators, filters, batteries, brakes, belts and hoses, oil and fluids, and suspension parts. These products are made to meet GM and non-GM vehicles’ ever-evolving powertrain, collision, maintenance, and repair needs.
