(888) 312-8812 Login SignupWAGNER OEX1404 OEX Ceramic Brake Pad
Tap to view 8 more
$7249
Limited availability at this price!
In Stock
Get it by Friday, Aug 7
WAGNER OEX1404 Part Description
Manufacturer
Features & Benefits
- PREMIUM PERFORMANCE -- Patented technology and Wagner’s engineering excellence combine to meet or exceed OE standards
- PREMIUM PERFORMANCE -- Patented technology and Wagner's engineering excellence combine to meet or exceed OE standards
- LONGER LASTING -- Application-specific patented wave shape and custom slot design deliver improved braking performance, reduce rotor wear and minimize residue to increase the life of the brake pad
- CONFIDENT STOPS -- Advanced design increases turbulent air flow for improved heat dissipation and cooler operation for reliable braking when it matters most
- INHIBITS CORROSION -- Superior electrostatic-coated steel plates with application-specific mechanical retention and premium stainless-steel hardware for better corrosion protection and longer life
- QUIETEST OPERATION -- Pad shape and five shim layers deaden noise, vibration and harshness
- HARDWARE INCLUDED -- Premium stainless-steel hardware included for all applications
- COMPREHENSIVE COVERAGE -- Brake pads available for domestic, European and Asian passenger cars, trucks, SUVs and CUVs 2005 and newer
- ZERO COPPER FORMULATION -- Features Wagner OE25™ zero-copper friction formulation
- BUILT TO STAY PUT -- Thermoset adhesive secures the friction material to the backplate, maintaining bond integrity through heat, pressure and repeated stops
- LAB-TESTED PERFORMANCE -- Validated on a dynamometer using SAE J2521 (noise), SAE J2522 (effectiveness) and Los Angeles City Traffic protocols to ensure quiet operation, consistent stopping power and pad life
- PERFECT PAIRING -- Pair Wagner Premium brake pads with Wagner rotors and calipers (sold separately) for optimal performance

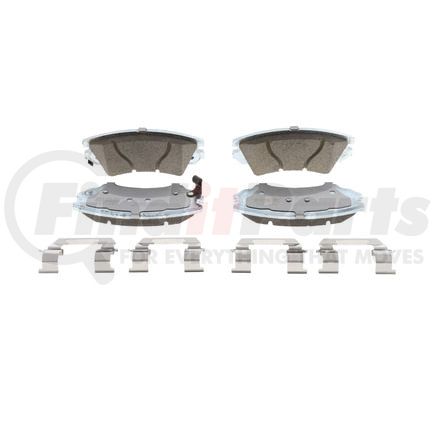

OEX Ceramic Brake Pad
WAGNER OEX1404 Specifications
Product Attributes
| Friction Material Composition | Ceramic |
| FMSI Number | 8512-D1404 |
| Abutment Clips Included | Yes |
| Pad Shims Included | Yes |
| Chamfered Edges | Yes |
| Slotted | Yes |
| Inner Pad Friction Material Thickness | 0.702 IN |
| Outer Pad Friction Material Thickness | 0.702 IN |
| Pad Wear Sensor Included | Yes |
| Pad Wear Sensor Type | Mechanical |
| Mounting Hardware Included | Yes |
| Part Description | Disc Brake Pad Set |
| FMSI Lining | 8512 |
| Fmsi Steel | D1404 |
Additional Information
| MSDS Sheet Number | 331 |
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708305020 |
| Harmonized Tariff Code (HTS) | 8708305020 |
| UPC | 00008536970705 |
| VMRS Code | 013000000 |
| UNSPSC | 25171713 |
WAGNER OEX1404 Cross References
| Brand | Part Number |
|---|---|
| Akebono Performance | ASP1404 |
| Akebono ProACT | ACT1404 |
| Akebono Severe Duty | SDF1404 |
| Auto Extra | AXCD1404 |
| BRAKE PRO | BKP1404CH |
| Bosch | BC1404, BE1404, BE1404H, BSD1404, BSP1404 |
| BrakeBest Select Brake Pads | D1404, SC1404 |
| BrakeBest Select Pro | SPC1404 |
| Carquest Frontline | FLD1404P |
| Carquest Premium Gold | GNAD1404 |
| Carquest Professional Platinum Brake Pads | PXD1404H |
| Carquest Standard Brake Pads | NAD1404 |
| Centric Parts | 102.14040, 103.14040, 104.14040, 105.14040, 106.14040, 300.14040, 301.14040, 305.14040, 308.14040, 309.14040, 319.14040, 306.14040, 307.14040 |
| Detroit Axle | P1404 |
| Duralast | DE1404, DG1404, MKD1404 |
| Dynamic Friction Company | 1600-1404-00, 4000-1404-00, 1552-1404-00, 1551-1404-01, 1600-1404-01, 4000-1404-01, 1551-1404-00, 1552-1404-01, 1311-1404-01, 1310-1404-00, 1310-1404-01 |
| GRC Prime | GPRD1404 |
| General Motors | 92230269 |
| MAGMA PRODUCTS | PSD1404C |
| NAPA BRAKES | PF8512X, UP8512X, SG8512X, SS8512X |
| Pep Boys | PD1404C, PS1404C, PGD1404, PD1404 |
| PowerStop | 161404, 171404, Z261404, NXT1404, Z231404, Z371404 |
| Promax | PRM21-1404 |
| RAYBESTOS | ATD1404C, ATD1404P, SGD1404C |
| Raybestos Brakes | SP1404PPH, SP1404XPH, EHT1404H, MGD1404CH |
| TRW MX | GDB1783DTM |
| VORTEX | VXD1404CH |
| Wagner Brake | WC1404 |
| Worldparts Synergy | WSD1404CH |
WAGNER OEX1404 Fits Vehicles
- Chevrolet Camaro (2010-2015)
WAGNER OEX1404 Customer Reviews
No reviews yet
Be the first to review this product!
WAGNER OEX1404 Manufacturer Information
When it comes to high-quality lighting and braking products for vehicle safety systems, one name stands out—Wagner®. Since 1891, this brand has been developing highly efficient critical components for vehicle safety systems across the globe. Wagner® is renowned for its cutting-edge braking component and technologies for passenger cars and medium-duty and commercial applications. This brand is also at the forefront of lighting products manufacturing since the introduction of the sealed-beam headlamp. Wagner brake parts and lighting products set high industry standards, thanks to its over 125 years of manufacturing experience and engineering expertise and its commitment to developing products that deliver superior performance.
